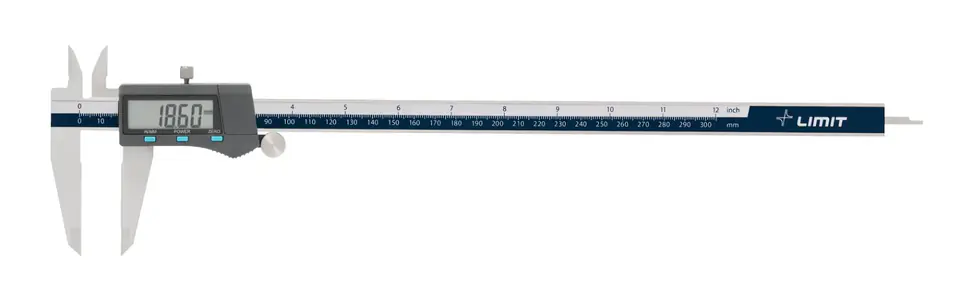

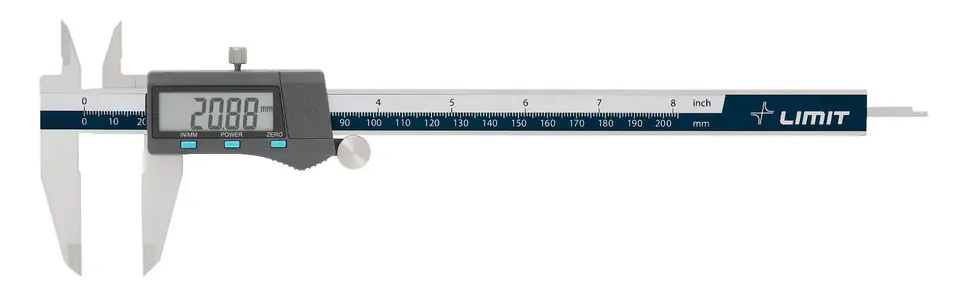

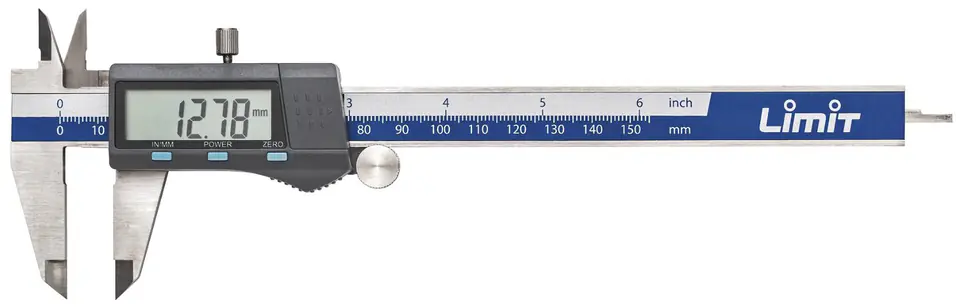

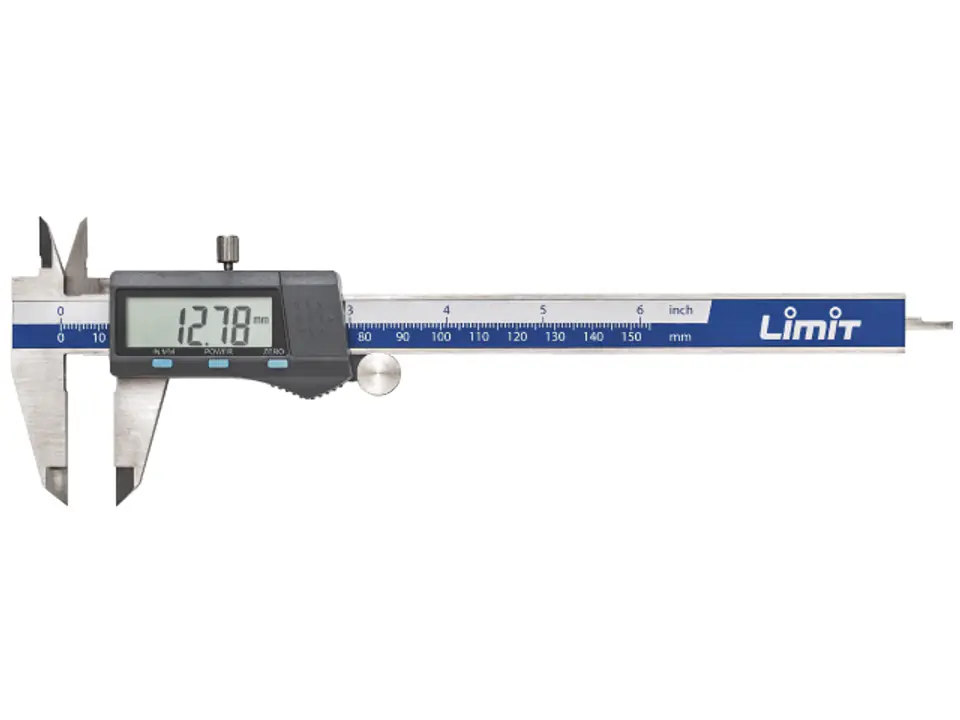

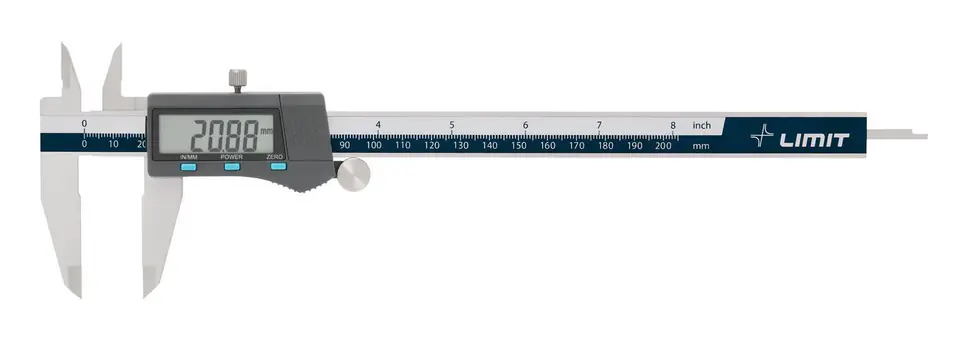

A premium quality digital caliper with a strong construction, with special attention to detail and finish.
The caliper is characterized by a very soft and smooth movement of the jaw because the component parts were ground in several stages.
Stainless steel, hardened and precision ground measuring jaws.
Jaw thickness of 3.5 to 4 mm ensures high stability.
LCD type display with clear digits with a height of 11 mm. 4-functions.
Auto power off.
Processor with high update frequency (3 measurements/sec).
Choice of indication in mm or inches.
Equipped with a rectangular depth gauge extension and jaw for internal measurements.
Manufactured in accordance with DIN 862.
Supplied in a case, with a quality control certificate.
Sr44 battery included.
Catalogue number26396-0106
Brief descriptionSKJUTM?TT DIGITALT CDK 150mm
Unit of measurementymm
1/4" inch
Digital Execution
LockSrub block.
Accuracy±0.02 mm
Measuring length150 mm
Jaw length, pom. internal 21 mm
Jaw length, pom. external 40 mm
Height. digits11 mm
Depth gauge extensionProstok.
Resolution0.01 mm
Resolution0.0005 inches
Update frequency3 m/s
Arm thickness3.5 mm
Repeatability± 0.01 mm
Quantity/pack.1
Package (1)
