ELECTROMAGNETIC JUMPER ZEW-280

€47.62
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
ZEW-280 / 5902887072949

Specification

Current consumption:500 mA

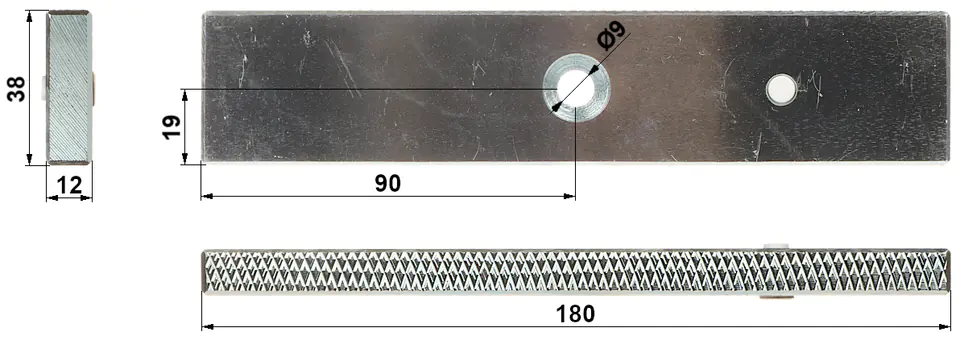

Dimensions:259 x 42 x 28 mm (electromagnetic jumper) 180 x 37 x 11 mm (metal plate)
Lifting capacity:280 kg
Scales:1.59 kg (shared)
Selected features:Relay output signaling door opening Internal mortise installation
Voltage:12 volts DC
Warranty:2 years

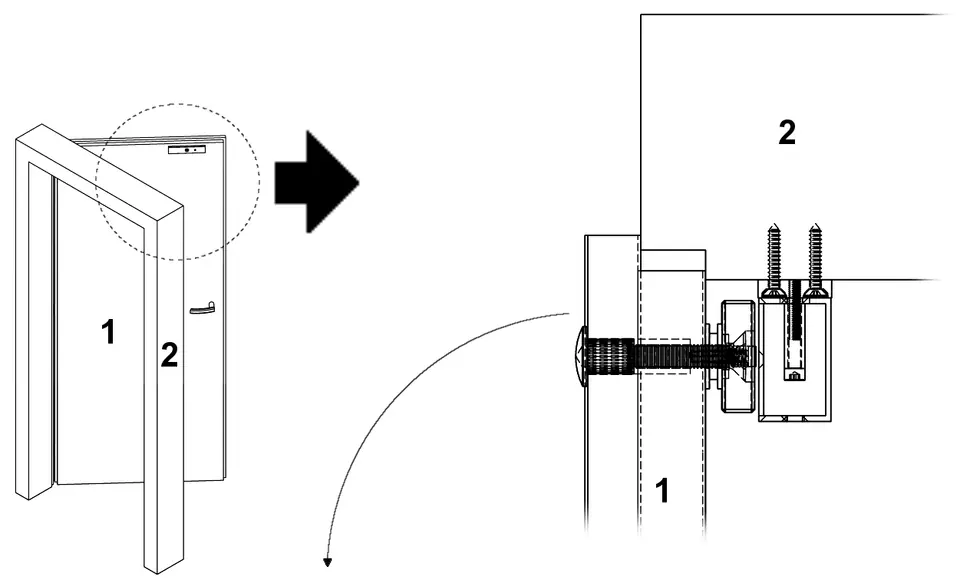

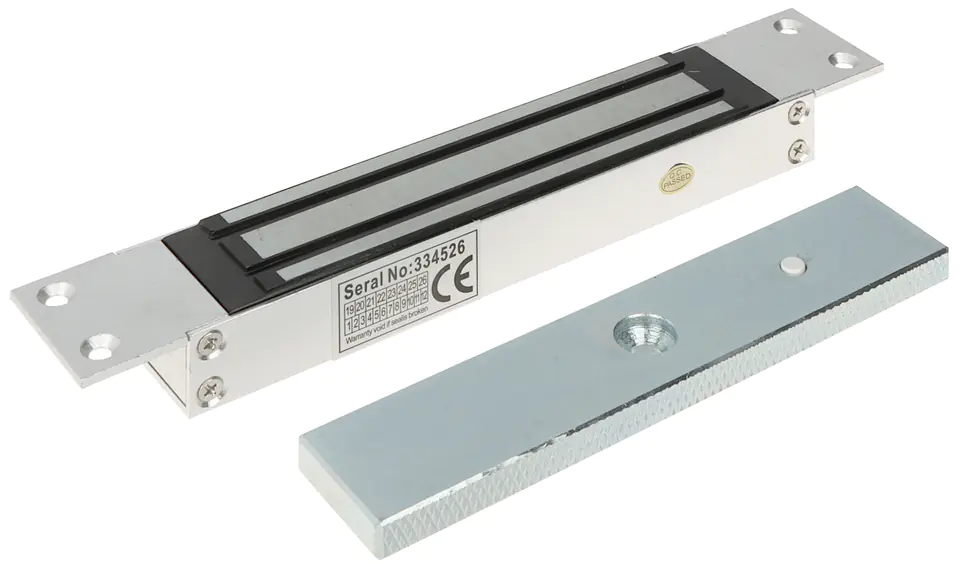

Electromagnetic jumper mortised, singleThanks to its simple design and modern technology, it is a reliable device for locking doors and gatesForcing a passage closed with a lock requires the use of a force of > 280 kgReversible works - open in the absence of supply voltageThe armature consists of two elements: an electromagnet (usually mounted in the frame) and an armature plate (usually fixed in the door)Trouble-free operation of the lock is the result of the lack of mechanical details, which may be damaged after some time

The device is designed for indoor use

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
