ELECTROMAGNETIC JUMPER ZE-60

€24.30
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
ZE-60 / 5902887072802

Specification

Current consumption:100 mA

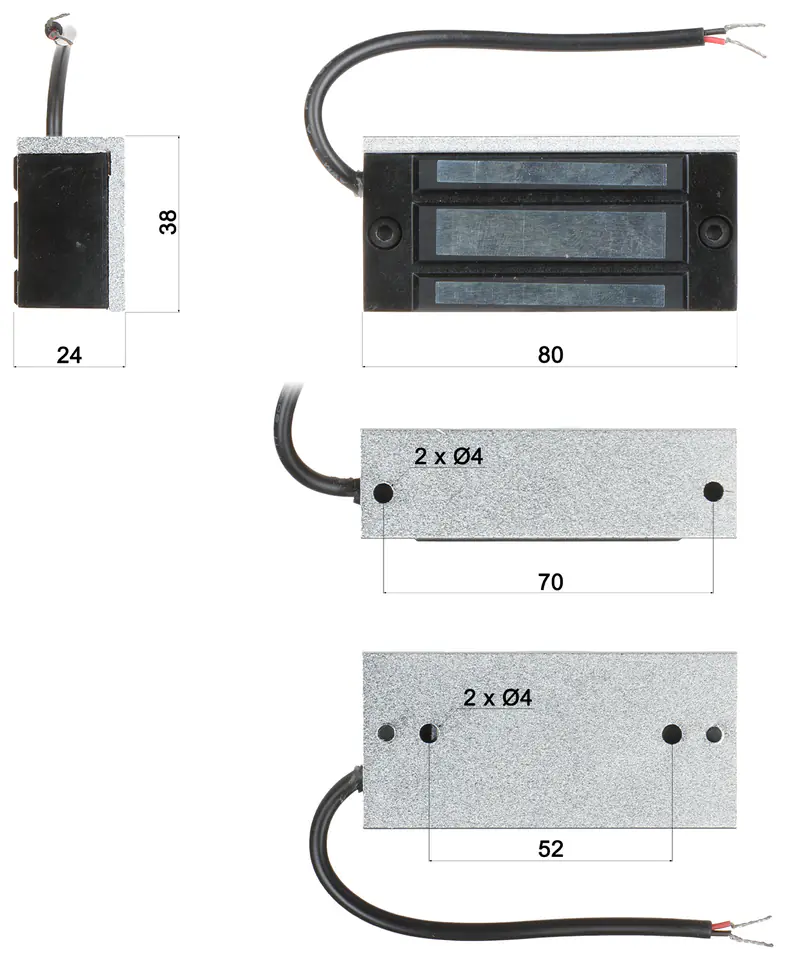

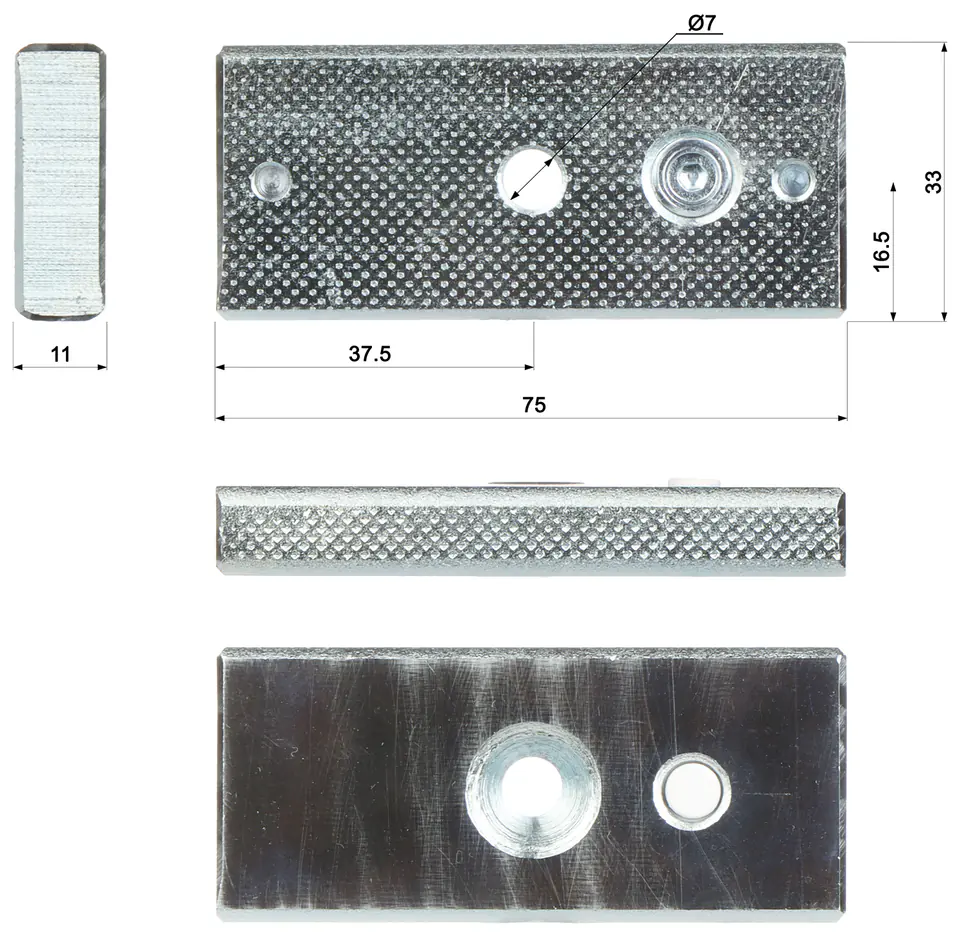

Dimensions:80 x 39 x 24 mm (electromagnetic jumper) 75 x 33 x 11 mm (metal plate)
Lifting capacity:60 kg
Scales:0.49 kg (shared)

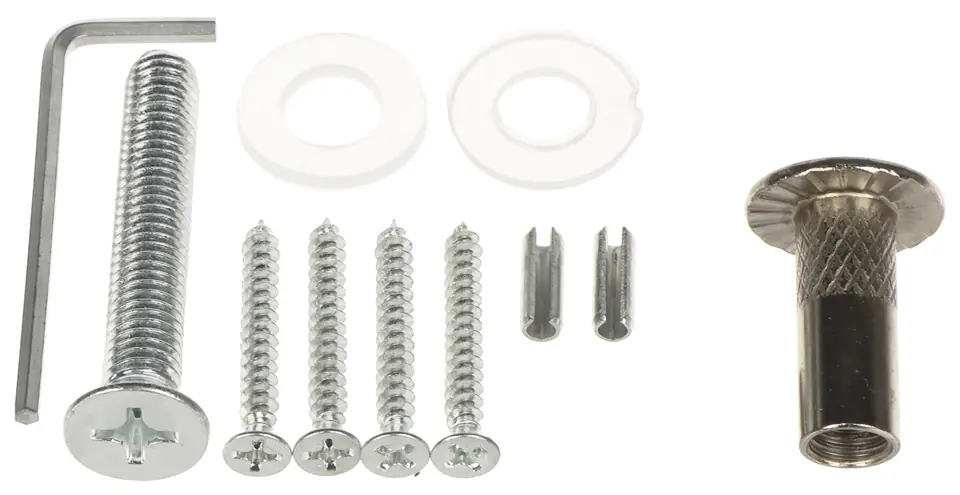

Selected features:Mounting bracket included - Type L
Voltage:12 volts DC
Warranty:2 years

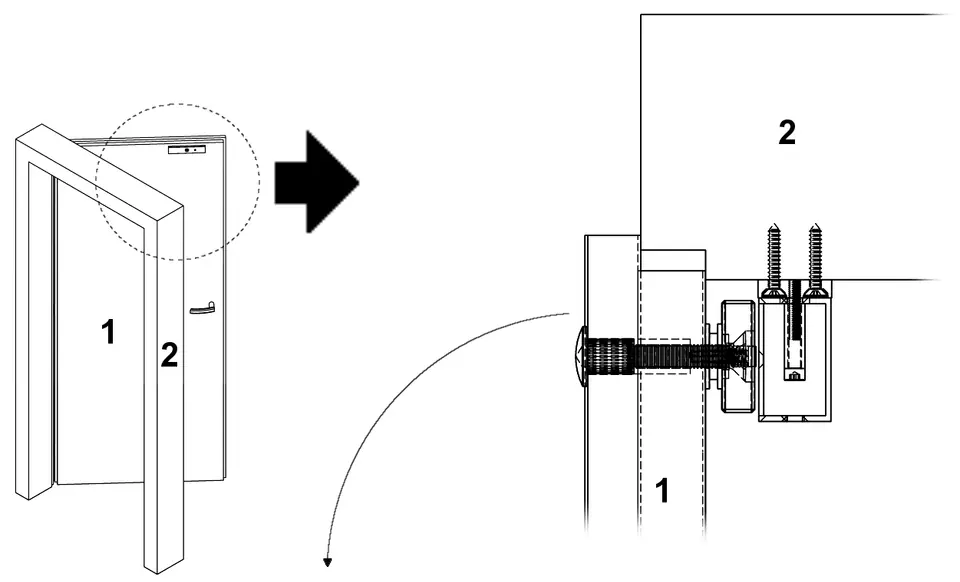

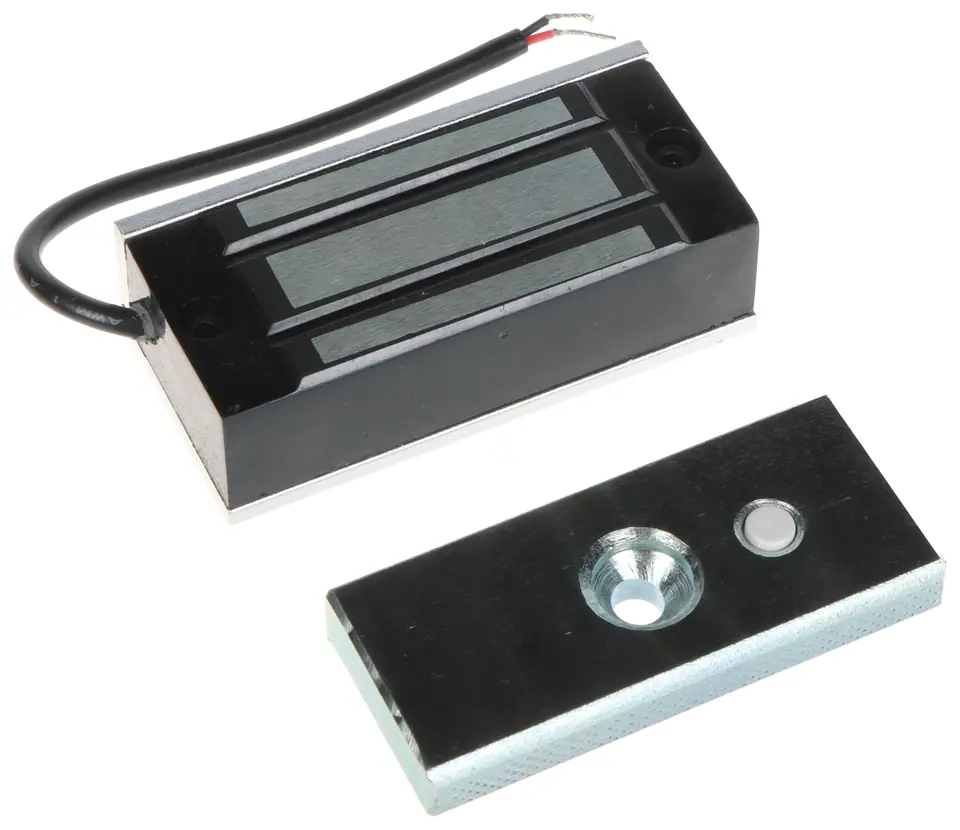

Electromagnetic surface jumper, singleThe armature is designed to block small wooden, glass or metal doorsForcing the passage closed with a lock requires the use of a force of > 60 kgReversible works - open in the absence of supply voltageThe armature consists of two elements: an electromagnet (usually fixed in the frame) and an armature plate (usually fixed in the door)Trouble-free operation of the lock is the result of the lack of mechanical details, which after some time may be subject Damage

The device is designed for indoor use

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
