ELECTROMAGNETIC JUMPER ZE-180-2

€38.06
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
ZE-180-2 / 5902887049620

Specification

Current consumption::500 mA

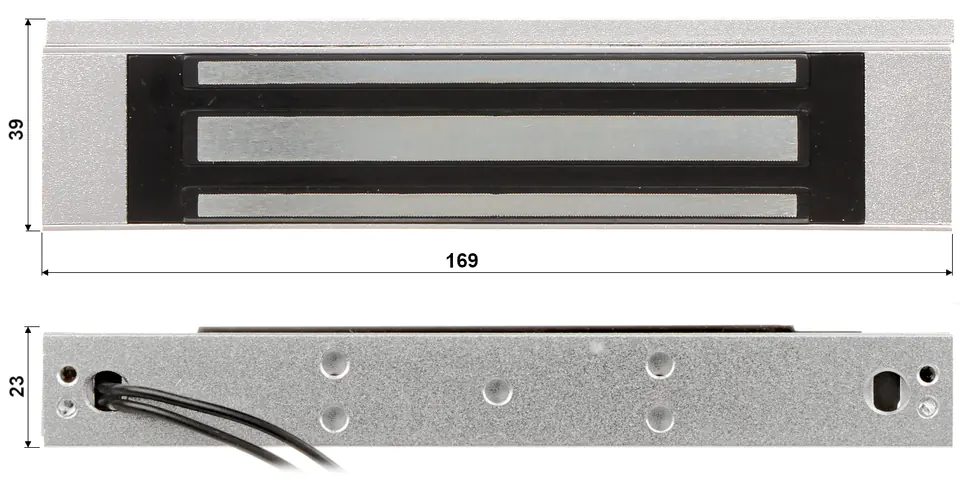

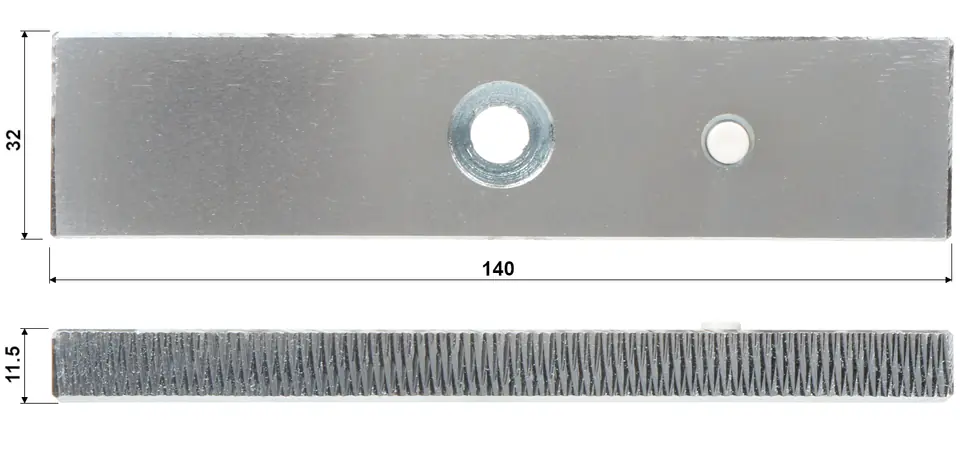

Dimensions::169 x 39 x 23 mm (electromagnetic jumper) 140 x 32 x 11.5 mm (metal plate)
Lifting capacity::180 kg
Scales::0.88 kg (total)
Voltage::12 VDC
Warranty::2 years

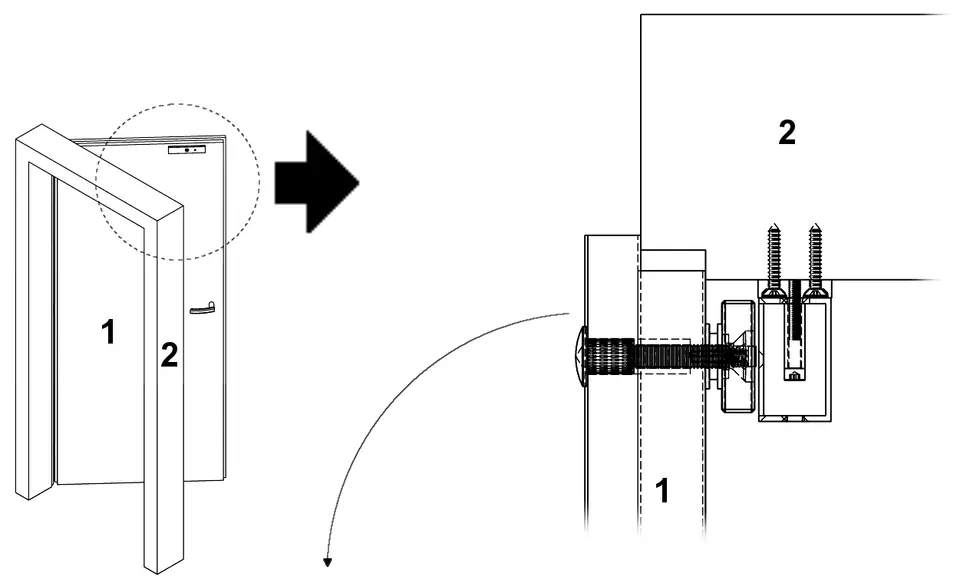

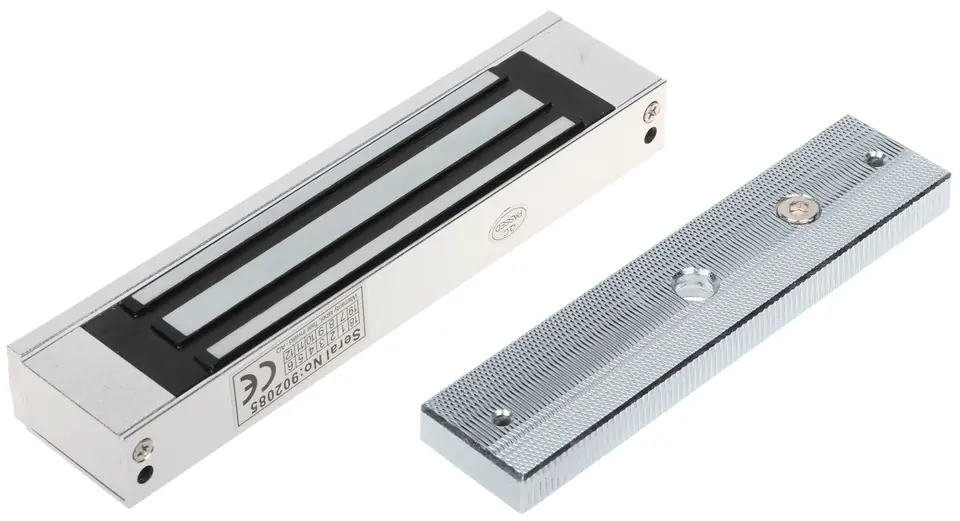

Electromagnetic armature surface, singleWith a simple design and modern technology of execution, is a reliable device for locking doors and gatesForcing a passage closed with a lock requires the use of a force of > 180 kgReswered operation - open in the absence of supply voltageThe bag consists of two elements: an electromagnet (usually fixed in the frame) and a jumper plate (usually fixed in the door)Trouble-free operation of the lock is the result of the lack of mechanical details, which may be damaged after some time

The device is designed for indoor applications

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
