ELECTROMAGNETIC JUMPER JS-280W

€63.31
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
JS-280W / 5905496920212

Specification

Current consumption:450 mA

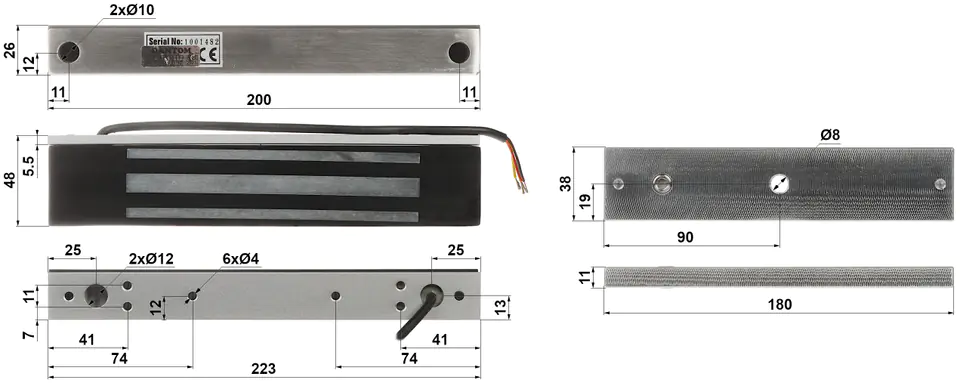

Dimensions:223 x 48 x 25 mm (electromagnetic jumper) 180 x 38 x 10 mm (metal plate)
Lifting capacity:280 kg
Scales:1.64 kg (shared)
Selected features:Waterproof, Outdoor Use Material: Stainless steel
Voltage:12 volts DC
Warranty:2 years

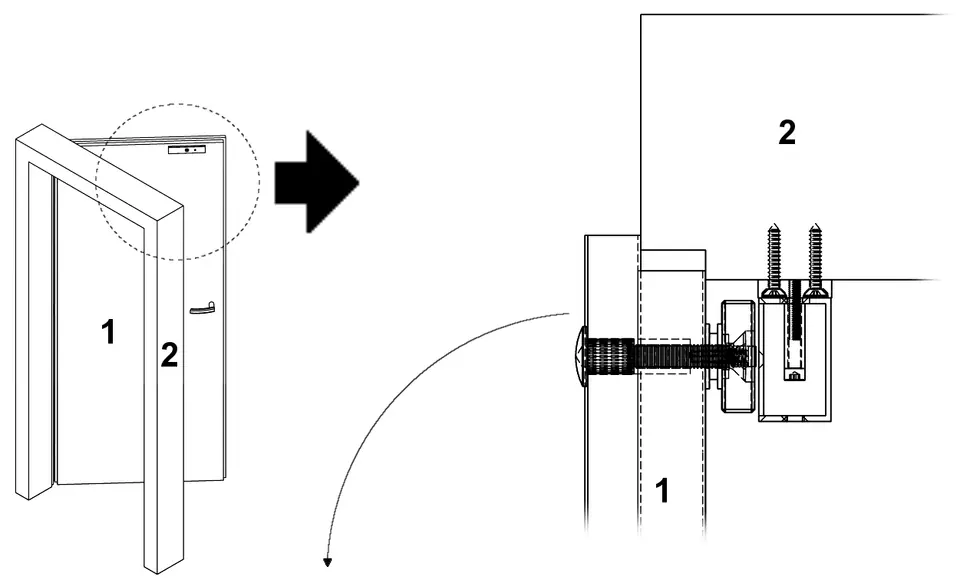

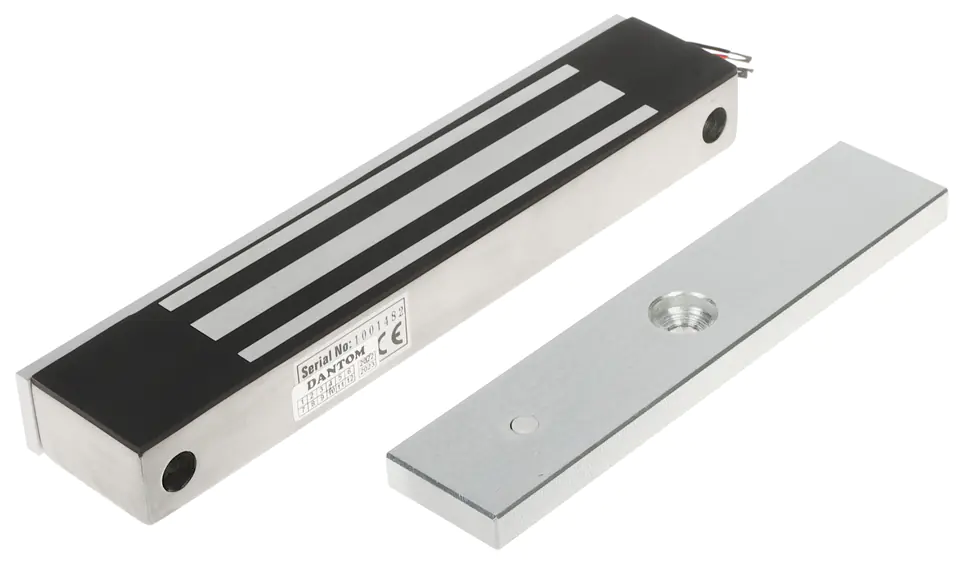

Surface electromagnetic jumper, singleThanks to its simple design and modern technology, it is a reliable device for locking doors and gatesForcing a passage closed with a lock requires the use of a force of > 280 kgIt works reversibly - open in the absence of supply voltageThe armature consists of two elements: an electromagnet (usually mounted in the frame) and an armature plate (usually fixed in the door)Trouble-free operation of the lock is the result of the lack of mechanical details, which may be damaged after some time

WaterproofOutdoor

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
