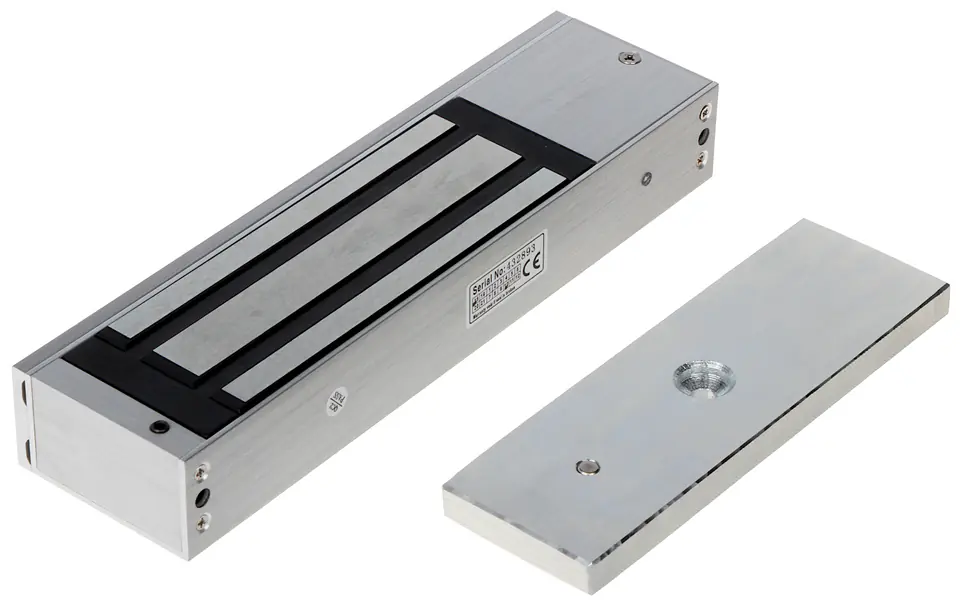

ELECTROMAGNETIC JUMPER ASF500A DAHUA

€101.09
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
ASF500A / 6939554945311

Specification

Current consumption::480 mA / 240 mA

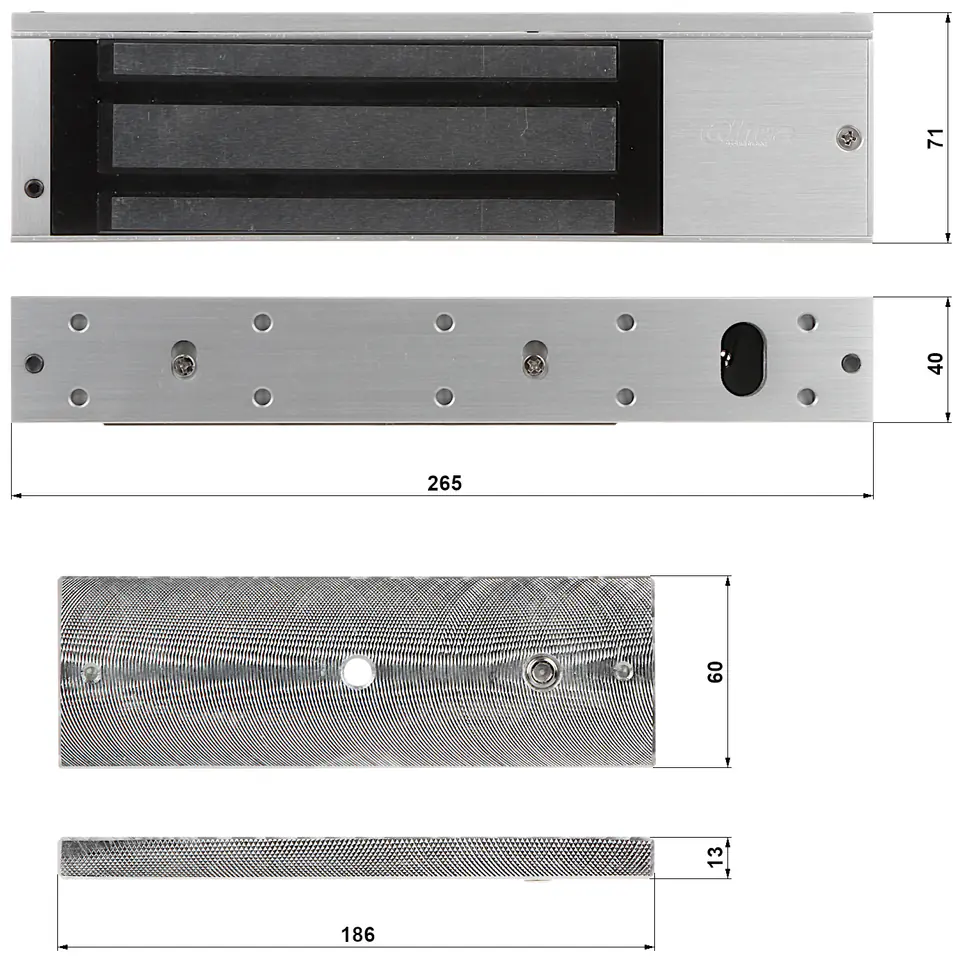

Dimensions::265 x 71 x 40 mm (electromagnetic jumper) 186 x 60 x 13 mm (metal plate)
Lifting capacity::500 kg
Manufacturer / brand::DAHUA
Scales::3.92 kg (total)
Selected features::LED signaling
Voltage::12 VDC / 24 V DC
Warranty::2 years

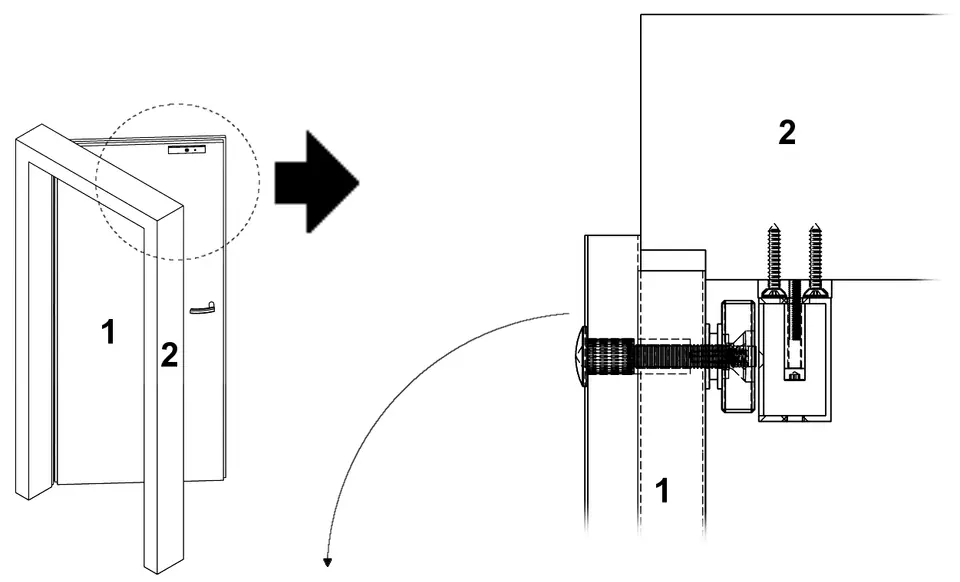

Electromagnetic armature surface, singleWith a simple design and modern technology of execution, is a reliable device for locking doors and gatesForcing a passage closed with a lock requires the use of a force of > 500 kgResver-based operation - open in the absence of supply voltageThe armature consists of two elements: an electromagnet (usually fixed in the frame) and a jumper plate (usually fixed in the door)Trouble-free operation of the lock is the result of the lack of mechanical details, which may be damaged after some time

The device is designed for indoor applications

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
