MECHANICAL PARAMETERS:
Yield strength Re [N/mm2]: >320
Strength Rm [N/mm2]: >510
Elongation A5 [%]: >30
Impact strength Kv [J]:
>55 J (20°C)
>30 J (-190°C)
Electrode type (sheath): rutile
Ferrite content: FN = approx. 5
Drying: 300 - 350°C / 2 h
USABLE FEATURES:

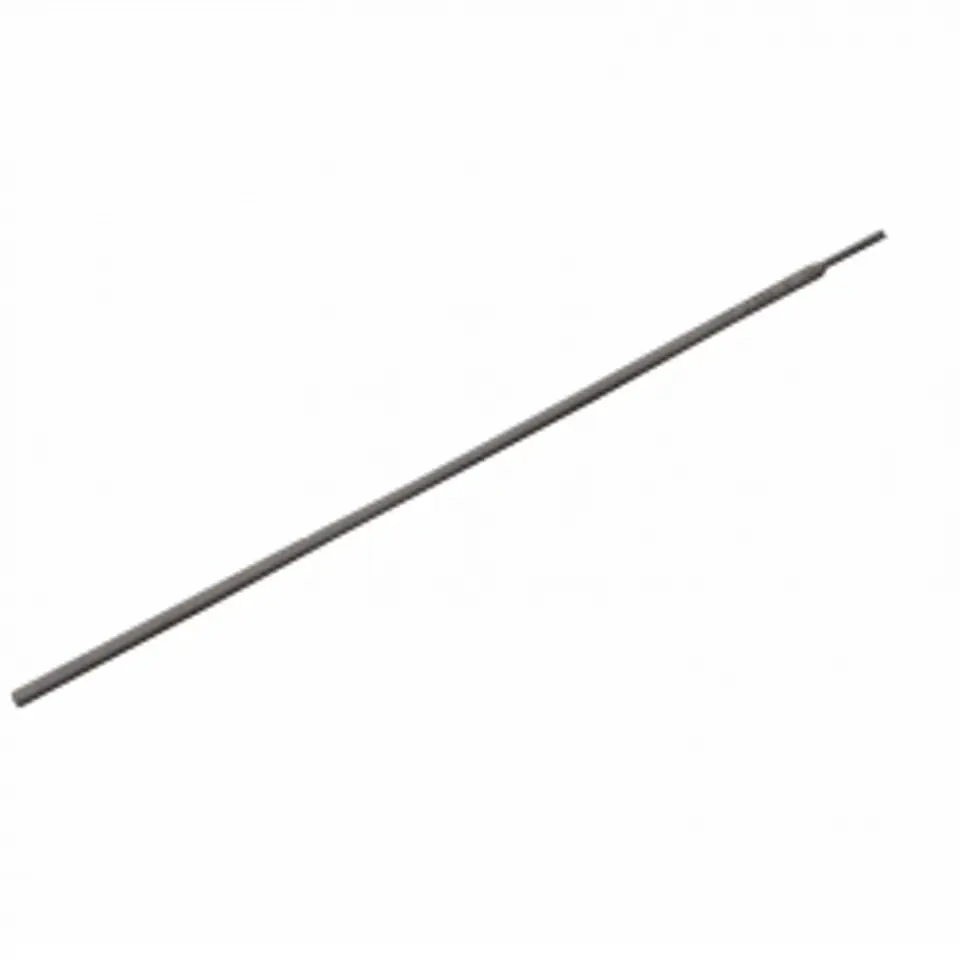

Rutile electrode, designed for welding stainless steels, austenitic, austenitic stabilized Nb or Ti, ferritic stainless steels from the 13% Cr group.
Very good primary and secondary ignition (also cold).
The bow is focused, it glows steadily.
Correct and easy formation of the weld, spontaneously departing slag.
The weld is smooth, with a fine scale, resistant to hot cracking and free of high-temperature coating layers of dark shades.
Binder resistant to intergranular corrosion up to 350°C.
The electrode welds perfectly vertically.
Trouble-free execution of the weld in the PF position.
A weld with perfect geometry is formed, flat.
When performing melting, the binder tends to flatten the ridge, which makes it easier to get the correct weld.
USE:
Food and chemical industry.
Wide use in the production and assembly of building and decorative accessories for residential and public buildings: balustrades, frames, fittings, etc.
