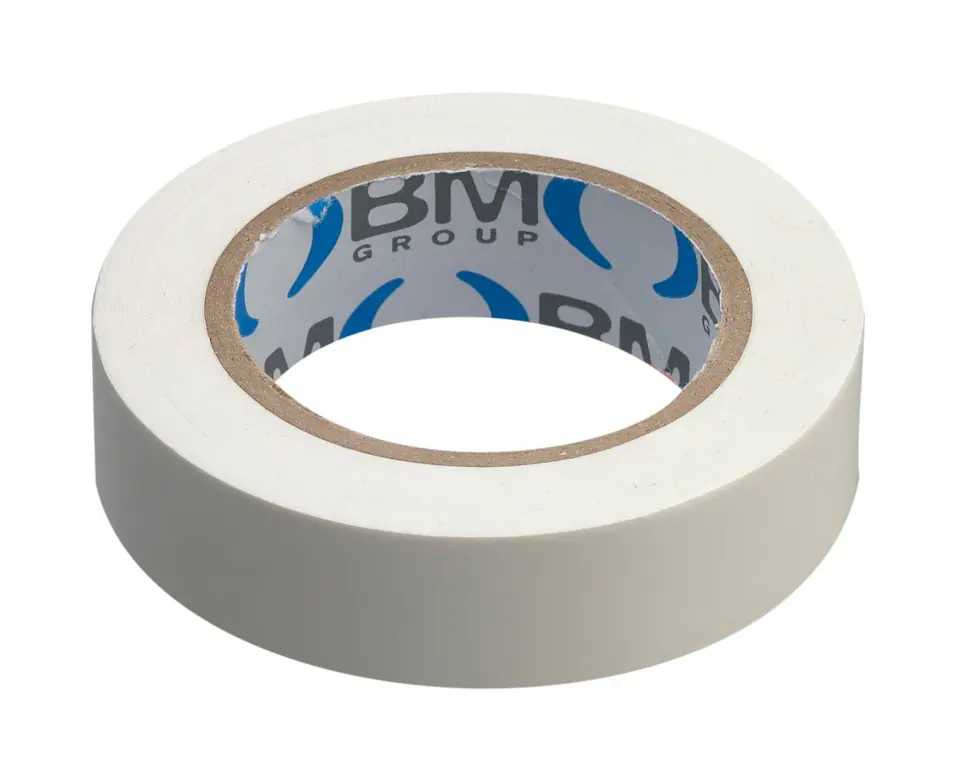

Electrical insulating tape
Thickness 0,15mm
Width 15mm
Length in roll 10mb
Polyvinyl chloride PVC carrier material
Application temperature 0 - 80°C
Adhesion to steel 2,2N/cm
Adhesion to the carrier 2,0N/cm
Breaking strength 28N/cm
Elongation at break 200%
Electrical strength 45kV/mm
ICE 60454-2 compliant
Rating CEI EN 60454-3-1-5/F-PCVP/90
Flame retardant
