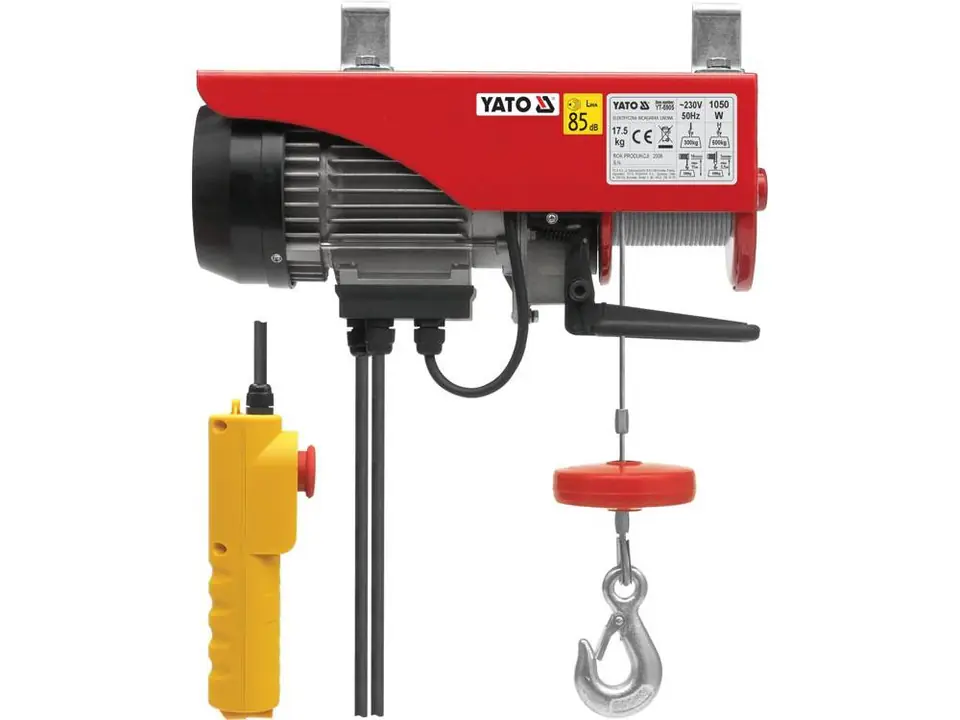

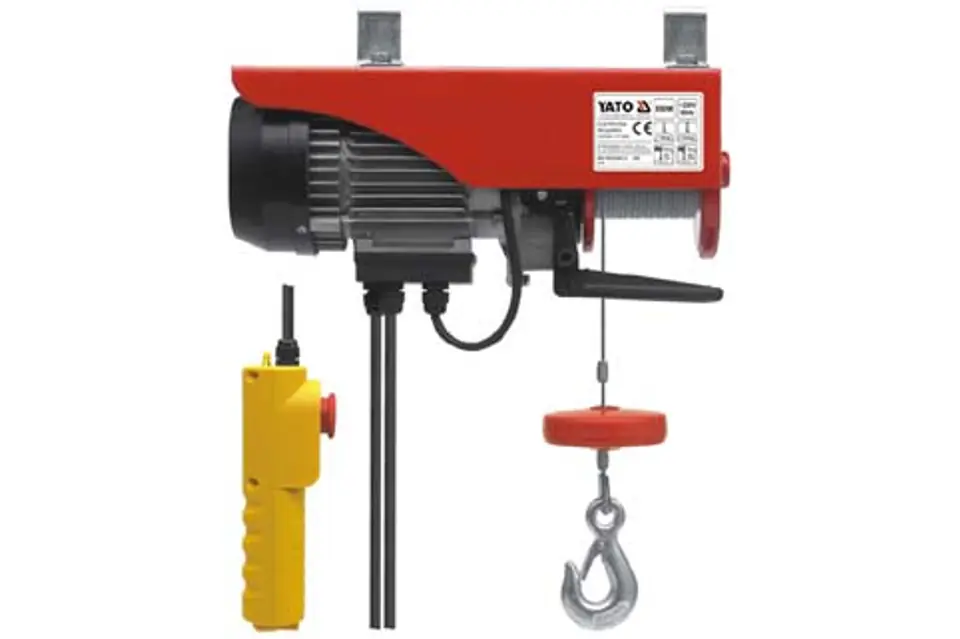

ELECTRIC WINCH, WINCH, ROPE WINCH 600KG

€157.16

Shipping from warehouse: ⁨A3⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: YT-5905 / 5906083959059

Specification

Ac input frequency:	50 Hz
Ac input voltage:	230 V
Device type:	Wire rope hoist
Hoist chain/wire length:	12 m
Hoist wire diameter:	4.5 mm
Hoisting speed with return pulley:	4 m/min
Hoisting speed without return pulley:	8 m/min
Lifting height with return pulley:	5 m
Lifting height without return pulley:	11 m
Maximum power:	1050 W
Payload with return pulley:	600 kg
Payload without return pulley:	300 kg
Weight:	17.5 kg

Description:

Application: construction industry, contractors. The winch is used to pull the load in the vertical axis to great heights.

Construction: support element: woven steel cable, the drive is an electric motor, low-speed transmission, electro-mechanical brake blocking the transmission at the moment of disconnecting the power supply in the engine, control console on a long electric wire, limit mechanical switch.

Purpose / Application

For pulling small loads during construction work.

Specifications:

- Index number YT-5905

- Gross weight (kg) 18.2500

- Power [W] 1050

- Pull capacity [kg] 600

- Lifting height [m] 11

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
