Manufacturer no: 10280170

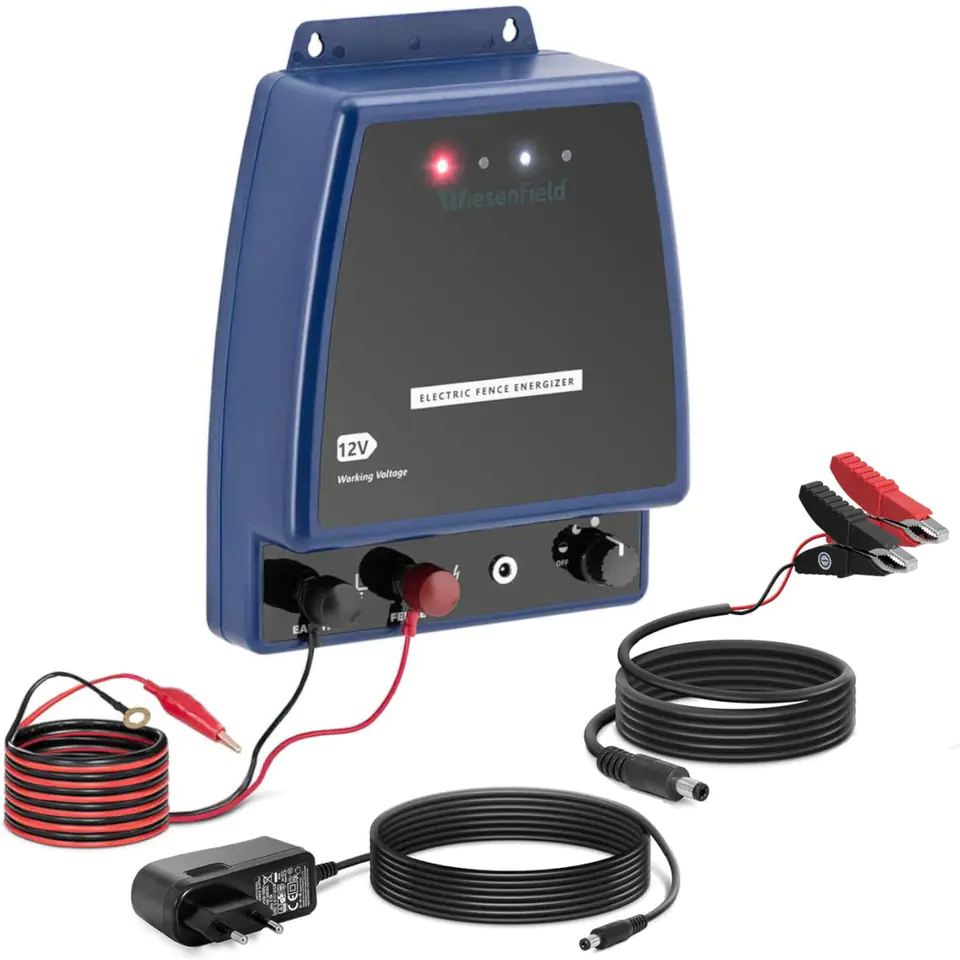

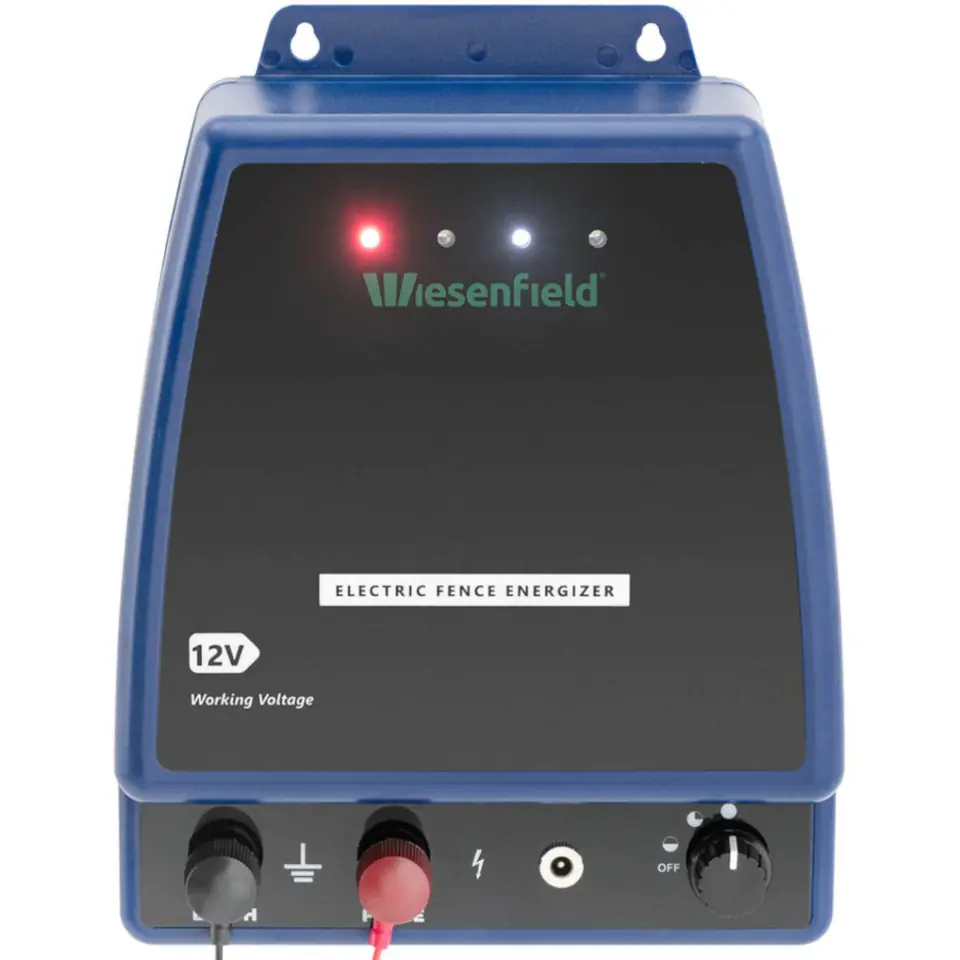

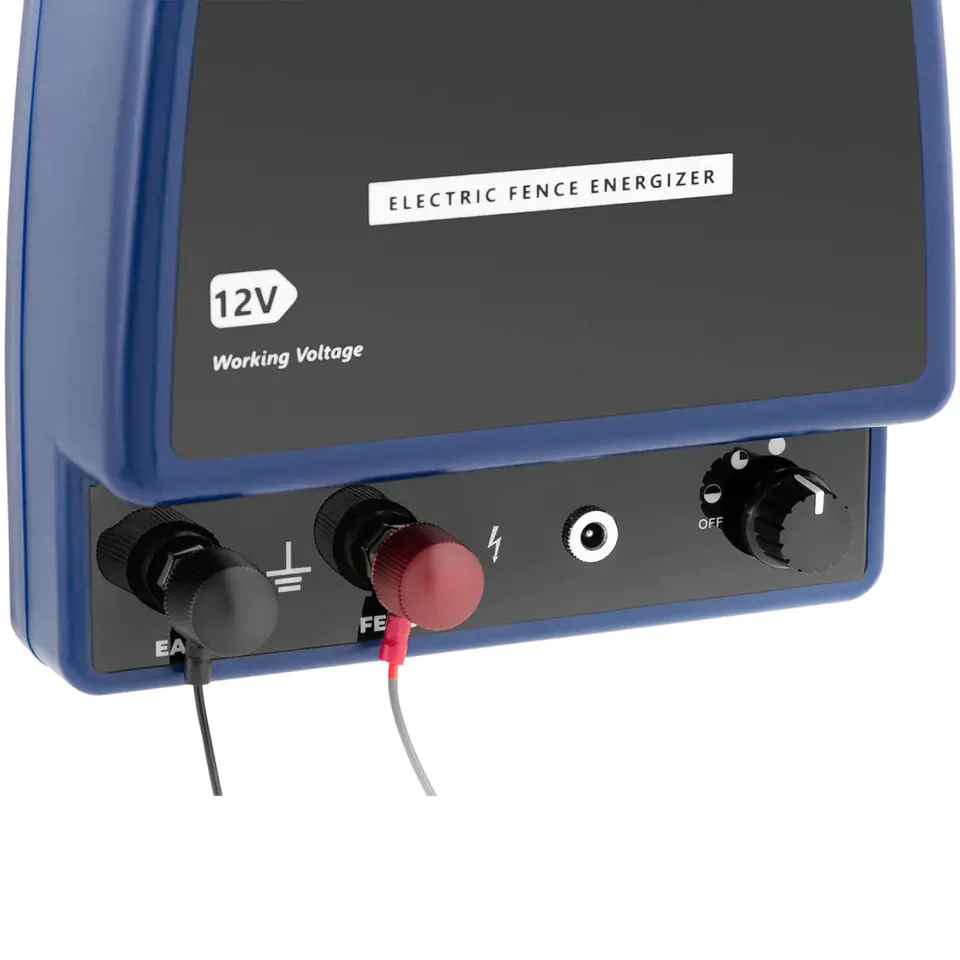

The Wiesenfield electrifier allows you to stop grazing animals such as cows, goats and sheep in the meadow and provide them with protection. The electrician should be connected to a 230 V power source using an AC adapter to generate a discharge energy of 4.8-5.2 J. Alternatively, a 12 V battery can be used as a power source. The device has a grounding and connection cable with a length of 93 cm to power the fence. This provides a peak voltage of 8000-12000 V. The electrifier is designed for cows, sheep, donkeys, wild boars or pigs. It can be used for fences up to 45 km in length. The duration of high-voltage pulses is chosen so that the animals move away when touched, but do not injure themselves. Two mounting holes allow you to attach the device to a wall or wooden pole. The shepherd's housing is made of durable plastic, protection class IPX6 allows protection against dust and splashing water.
Product features:
- - For electric fences up to 45 km long,
- - Protects animals with a discharge energy of 4.8-5.2 J,
- - Continuously energized via external 230 V power source and AC adapter with 12 V,
- - Durable plastic housing and IPX6 protection class,
- - Fastening with mounting holes for hanging.
- - Model - WIE-EF-480
- - Catalogue number - 10280170
- - Article status - New
- - Voltage [V] - 230
- - Power supply - mains + adapter
- - Discharge energy [J] - 4.8-5.2
- - Material - Plastic housing (ABS)
- - Output voltage [V] - 12
- - Line connecting fences [cm] - 93
- - Pulse output circuit [V] - 8000-12000
- - Maximum length of fence wire [km] - 45
- - IP rating - IPX6
- - Connection cable with battery terminals [cm] - 95
- - Dimensions (LxWxH) [cm] - 25 x 18 x 9
- - Weight [kg] - 1,5
- - Shipping dimensions (LxWxH) [cm] - 27 x 27,5 x 10,5
- - Shipping weight [kg] - 1,8
- - Electrician for shepherd

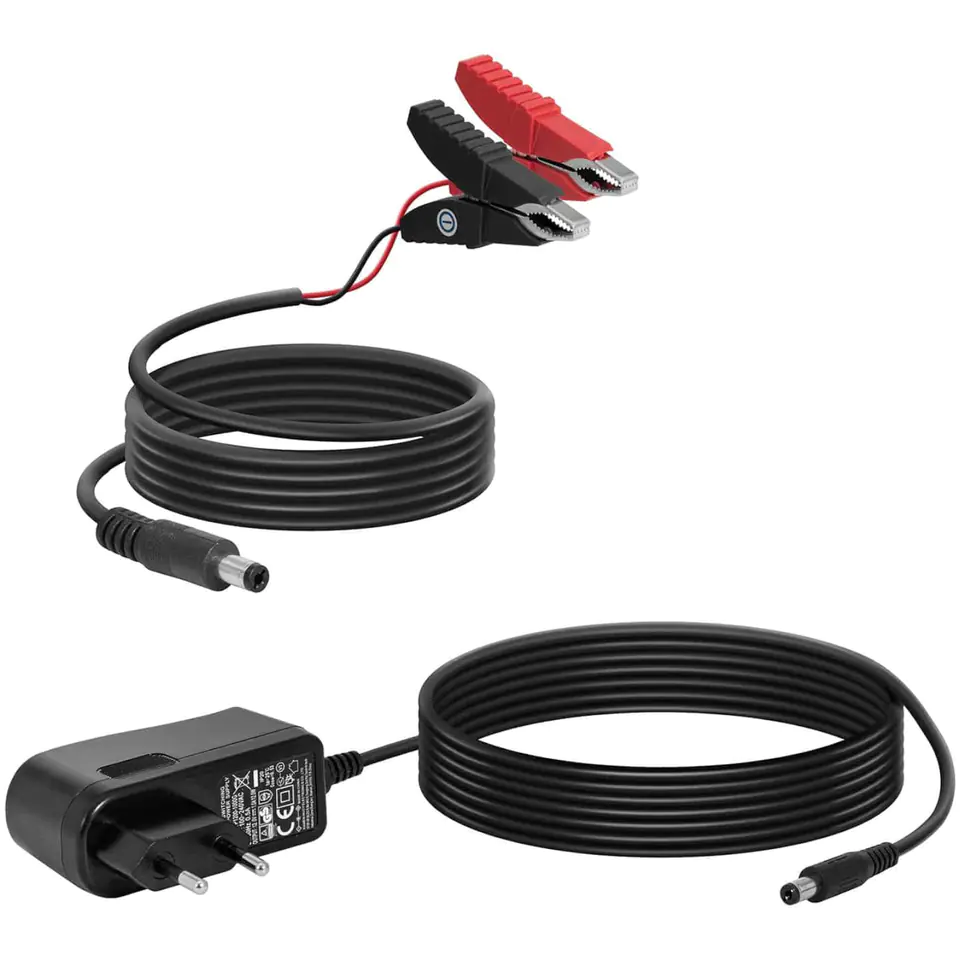

- - AC 12 V power supply
- - Battery cables with terminals
- - Ground wire
- - Screws
- -Manual
