Technical data:
Rated power: 550W
Stroke frequency: 2,200 strokes/min
Input diameter: 22 mm
Cutting width: 5 mm
Inner cutting radius: 45 mm
Outer cutting radius: 50mm
Cutting capacity at 250 N/mm 2 aluminum: 2.5 mm
Cutting capacity at 400 N/mm 2 mild steel: 1,6 mm
Cutting capacity at 600 N/mm 2 alloy steel: 1,2 mm
Weight: 1.6 kg
For sheet metal, corrugated sheet and trapezoidal sheet
Infinitely adjustable matrix, rotatable 360°, with 90° lock
Thanks to the new motor, the slim shape with a diameter of only O 57 mm
Stroke size 7 mm
Thanks to the extremely long tool, it is also possible to cut trapezoidal sheets
Chip Ejection down allows a free view of the workpiece
Easy punch and die replacement
Measuring grooves to check the thickness of the material
Stamp (mounted): A-83951
Matrix (mounted): A-15051
Matrix holder (built-in): 322701-3
Single-sided jaw wrench SW 32: 781013-7
Allen Key 2.5: 783208-8
**

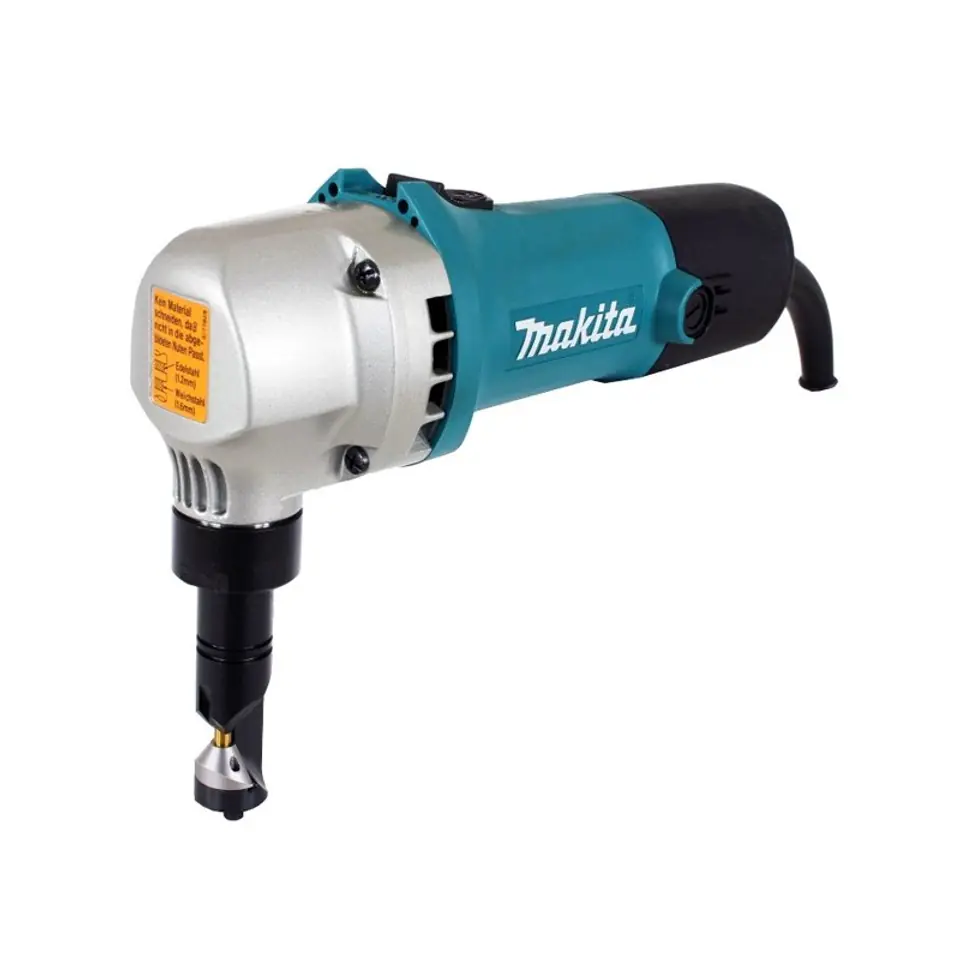

The photo has an illustrative function.
