Manufacturer no: 10060873

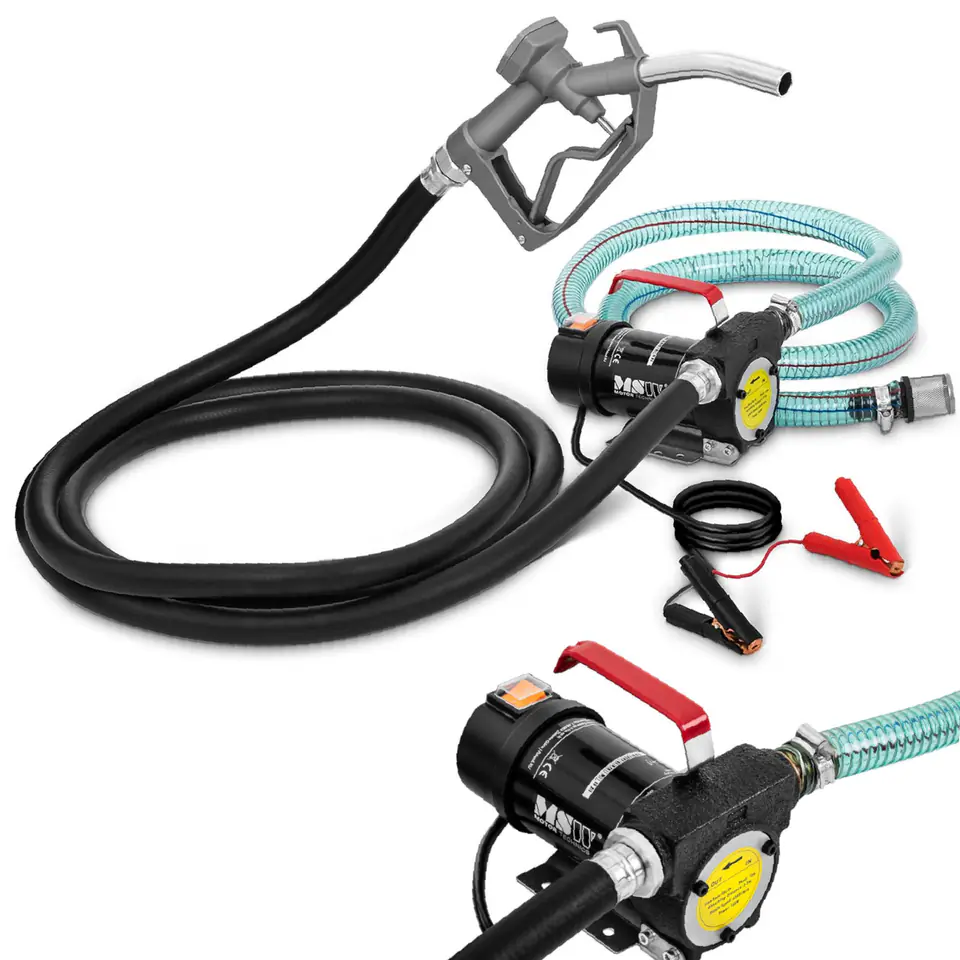

Professional self-priming pump of the MSW brand designed for pumping oil, diesel, biodiesel and kerosene (not used for gasoline!). The distributor is great for refueling agricultural vehicles and machinery, making it suitable for workshops, garages and petrol stations.

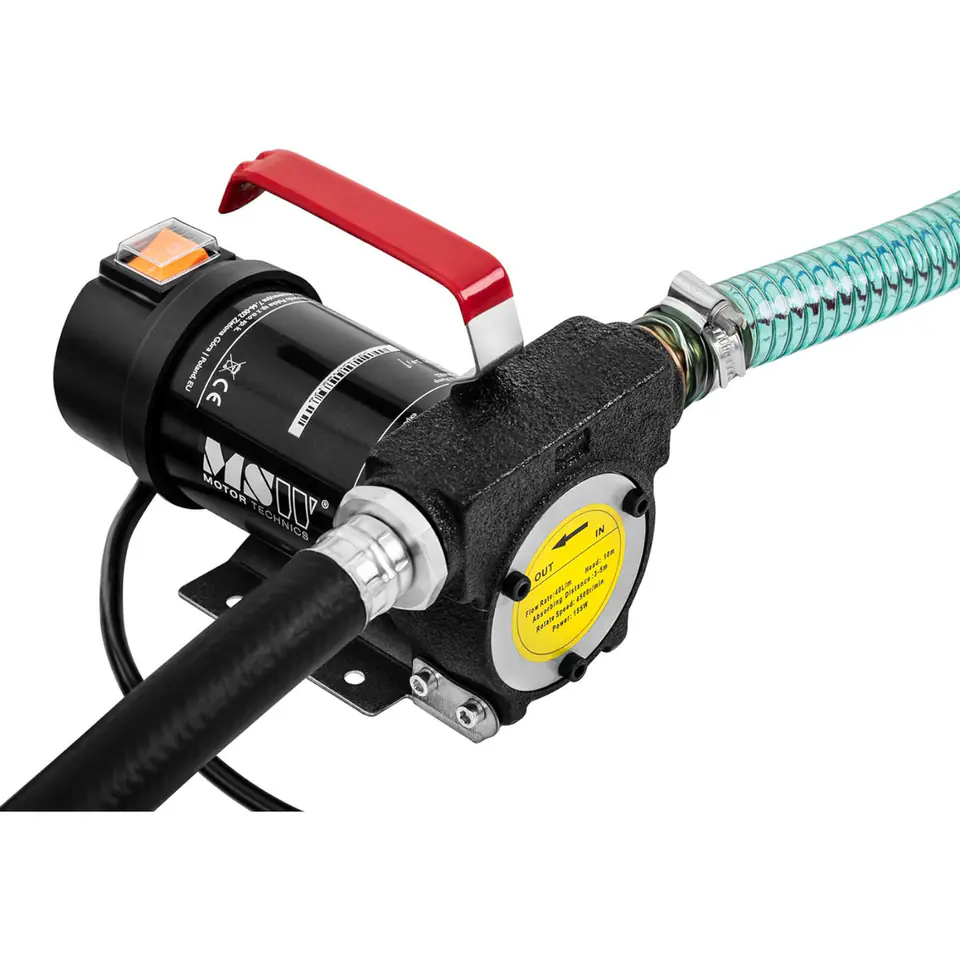

The device has a motor with a power of 155 W and 2800 rpm, it allows pumping at a speed of 40 l / min with a suction height of 5 m and a pressure of 3 bar. Self-priming is the operation of the pump without having to re-fill the inlet channel. The pump itself will remove the accumulated air from the suction line. The by-pass valve prevents overloading and equalizes the pressure when, for example, the hose is bent. Hoses with a length of 2m (suction) and 4m (outlet) and a power cord with a length of 1.5 m allow convenient maneuvering. Also included is a nozzle. The pump is fully portable thanks to its small dimensions, handle and lightweight design. The fuel line is equipped with a dirt filtering mesh . The pump can run dry for a long time. The device is safe to use, has CE certification and IP55 degree of protection.
Product features:
- - Capacity - 155 W of power, 2800 rpm, flow 40 l / min, pressure 3 bar,
- - Self-priming - works without the need to re-flood the inlet channel,
- - By-pass - protection against overheating,
- - Set - suction hose, outlet weigher, nozzle,
- - Strength - works dry for a long time.
- - Model - MSW-OP40S2
- - Catalogue number - 10060873
- - Article status - New
- - Material - Cast iron
- - Rotational speed - 2800 rpm
- - Voltage - 12 V
- - Power - 155 W
- - Flow - 40 l/min
- - Pressure - 3 bar
- - Suction - 5 m
- - Power cord - 1.5 m
- - Suction cable length - 2 m
- - Suction cable diameter - 19 mm
- - Length of the outlet pipe - 4 m
- - Diameter of the outlet pipe - 19 mm
- - Safety class - IP55
- - Maximum lifting height - 10 m
- - Dimensions (LxWxH) - 20 x 11 x 18 cm
- - Weight - 7.1 kg
- - Shipping dimensions - 35.5 x 33 x 25.5 cm
- - Shipping weight - 7.2 kg

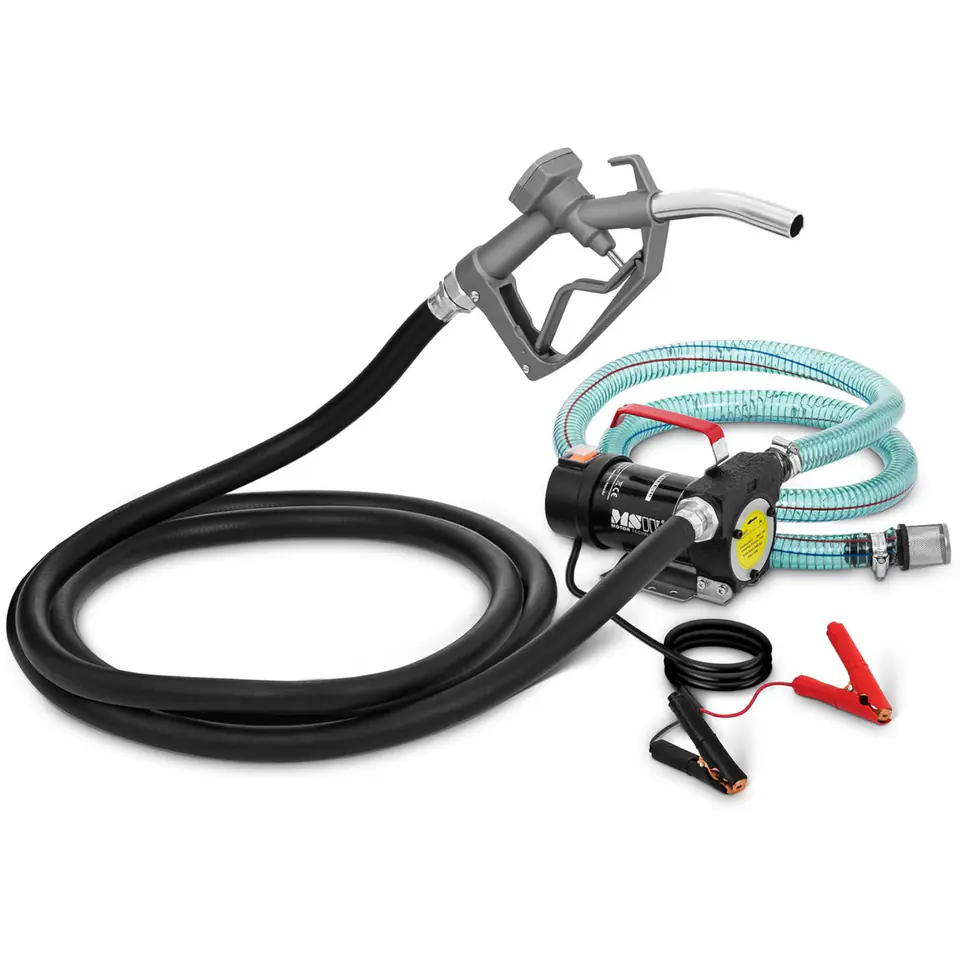

- - Oil pump
- - Suction hose - 2 m
- - Outlet hose - 4 m

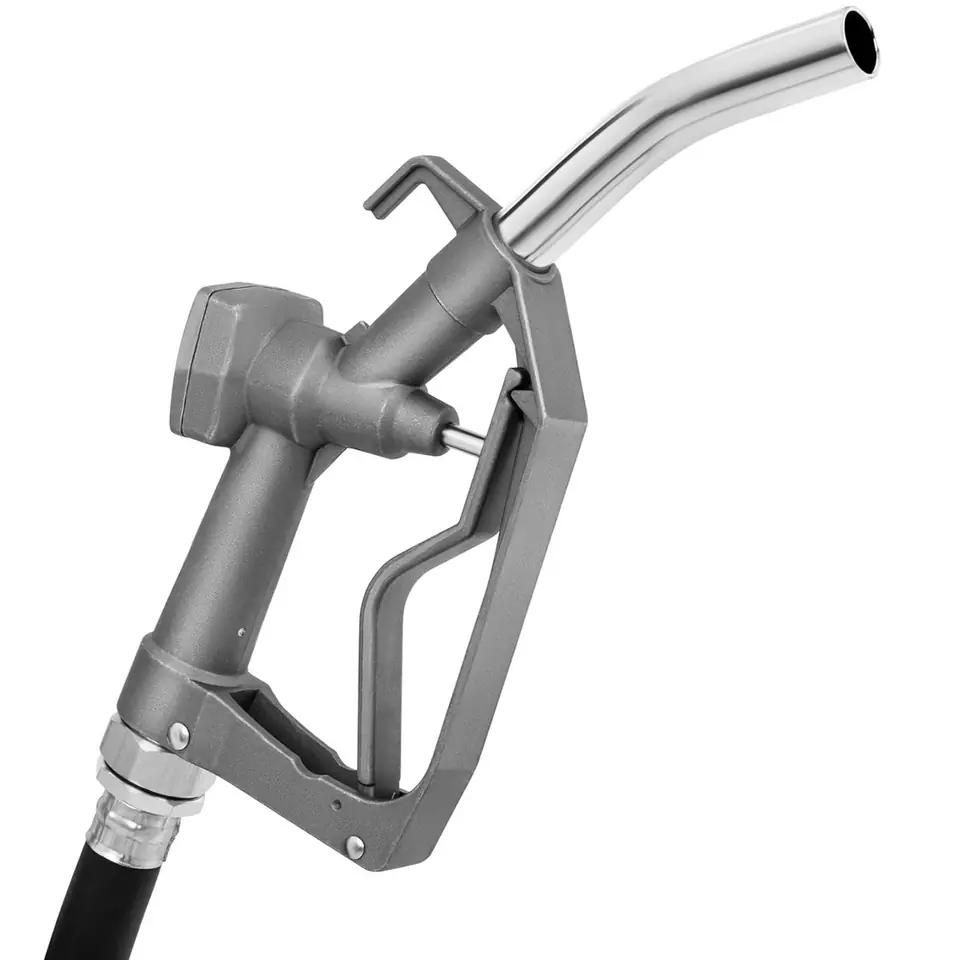

- - Nozzle
- - User Manual
