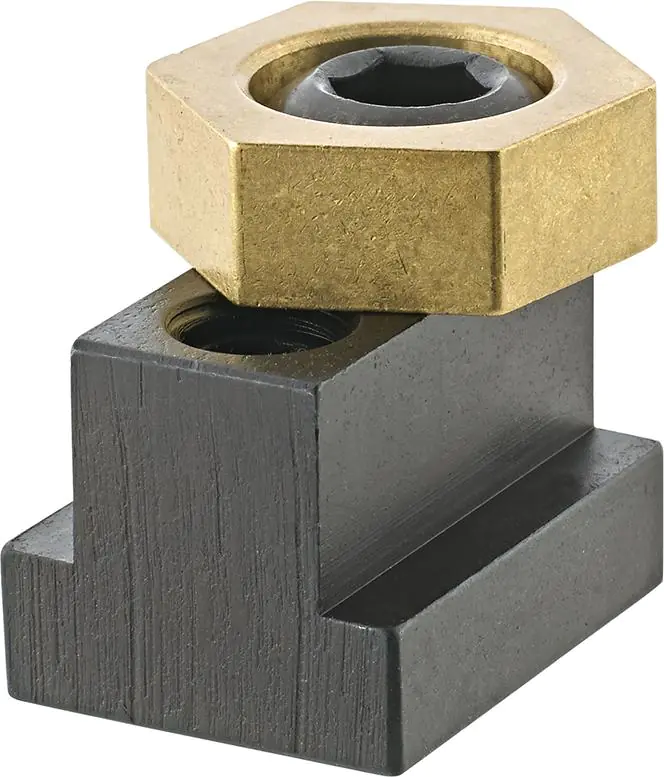

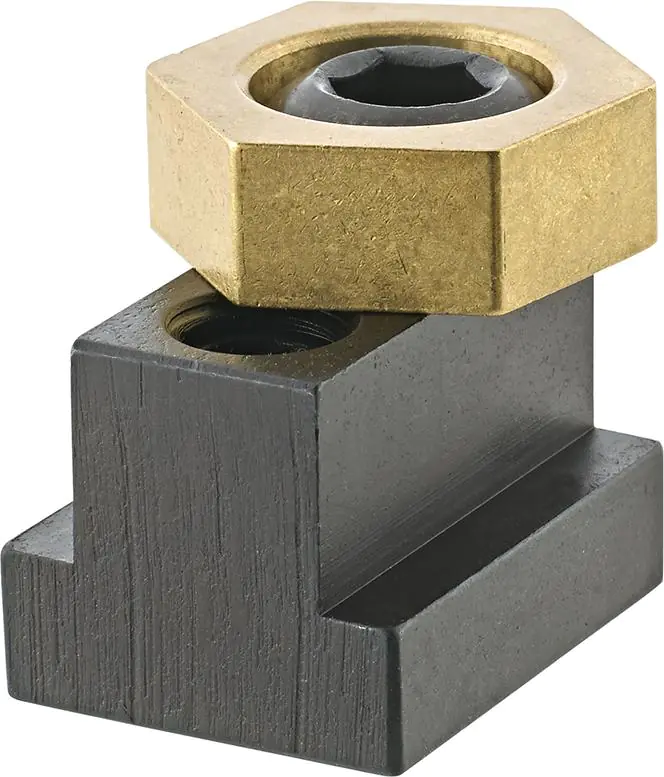

Eccentric pressure with T-nut
Universal pressure system for pressing workpieces of various shapes and forms, square, inclined, concave or convex.
Design: the special feature of these clamps is a steel screw (with a strength of 10.9) with an eccentric head. Eccentricity causes a pressure movement with a very high clamping force. The clamping element is a brass hexagonal plate.
Application: with the help of thrust pins and 1 or 2 mounting screws, each element can be fixed in the most diverse forms. The low construction height enables trouble-free machining of the workpiece surface. In this way, it is not necessary to take into account the position of the clamping feet when programming the CNC. In addition, the small design dimensions allow ergonomic multiple mounting. The mounting clamps can also be used as stops.
Application: Heat-enhanced T-nuts slide into the T-slot and lock with a threaded stem. Fastening occurs by twisting the eccentric screw.
