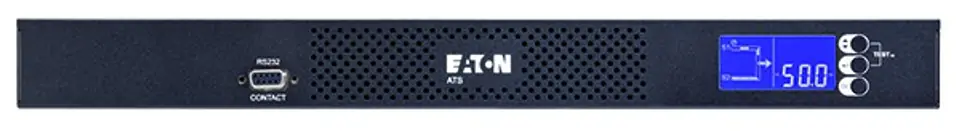

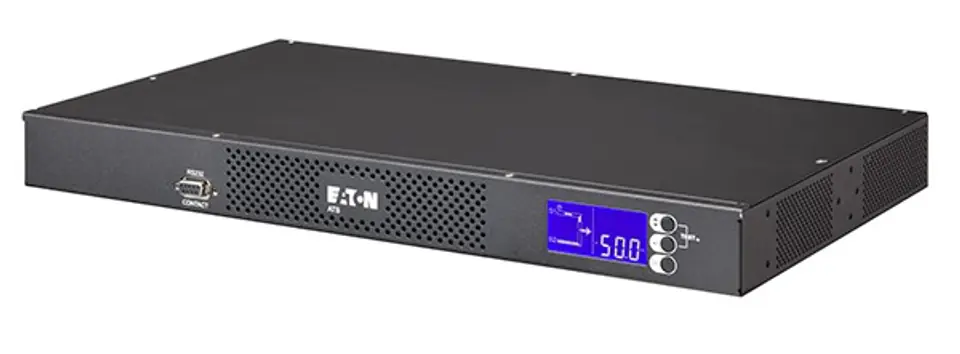

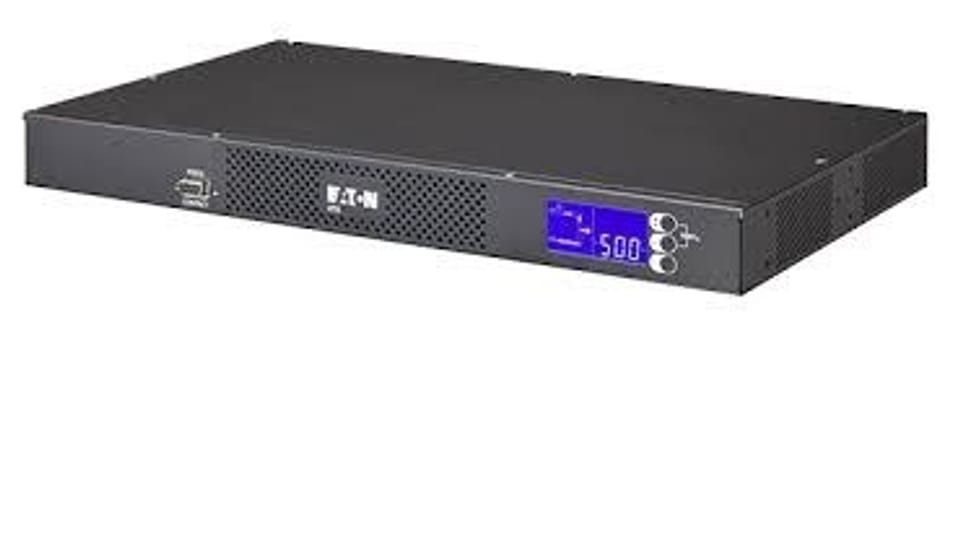

EATON ATS 16
Eaton ATS offers an inexpensive solution for customers wishing to add redundant power to network devices such as switches and routers. The automatic power switch will provide power from 2 different sources. If one power source fails, the backup source will be connected uninterrupted to the connected equipment. Eaton ATS can be connected to multiple devices while saving on the cost of using expensive redundant power supplies.
Main features:
- Provides redundancy for IT equipment
- An alternative to expensive redundant input power supplies
- Compact 1U rack housing
- Unbreakable switching from one power source to another
- LCD display - reading measurements and basic configuration settings
EATON Automatic Power Source Switch
€1,094.90
Shipping from warehouse: M7
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Eaton
- Product code:
- EATS16 / 0743172079404
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac outlet types: | C13 coupler, C19 coupler |
| Ac outlets quantity: | 9 AC outlet(s) |
| Colour: | Black |
| Depth: | 250 mm |
| Dimensions (mm): | 43 x 430 x 250 |
| Dimensions (wxdxh): | 430 x 250 x 43 mm |
| Display: | LCD |

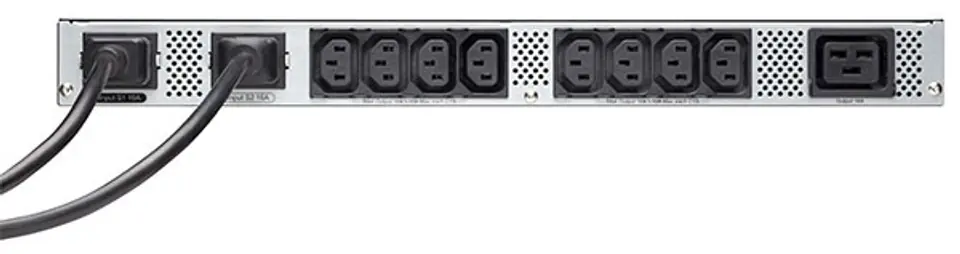

| Features: | Switching time (max): 8 ms, Form factor type: rack, LCD user interface, Input power ports: IEC-C20, The device has 8 IEC-C13 ports and 1 IEC-C19 port, Connector: RS-232 (COM) |
| Form factor: | Rackmount |
| Height: | 43 mm |
| Kind: | Automatic power source switch |
| Led indicators: | Yes |
| Master ac outlets quantity: | 9 |
| Maximum current: | 16 A |
| Maximum input current per phase: | 16 A |
| Mounting: | Horizontal |
| Nominal input voltage: | 230 V |
| Pdu types: | Basic |
| Power plug: | C20 coupler |
| Product colour: | Black |
| Rack capacity: | 1U |
| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Weight: | 3.3 kg |
| Weight (g): | 3300 |
| Width: | 440 mm |
