Maclean MCTV-986 universal DVB-T TV antenna for car or home + amplifier, 5V or 12V power supply

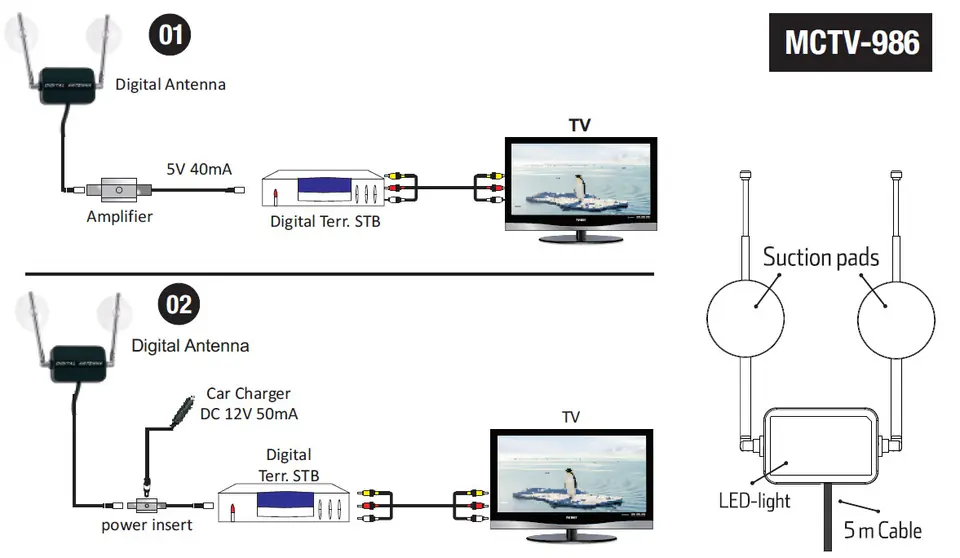

Terrestrial antenna specially designed to receive digital terrestrial television. It allows you to receive TV both at home and in the car. The device is an active antenna that can be connected to a TV or set-top box using a coaxial cable. For external power supply, a car splitter or power supply can be used.
High quality digital TV antenna MCTV-986 from Maclean. Specially designed for digital reception from terrestrial DVB-T multiplexes in the UHF band 470-862 MHz.
Key features of MCTV-986:
- LEDs that light up when the product is already running
- SMD circuit design
- Interference-limiting enclosure
- Built-in amplification and low-noise amplifier
- Power supply via digital decoder or power supply included
- Suction cups for placing the antenna on a smooth surface
- Recommended for reception of programs in HDTV digital terrestrial television systems (DVB-T, ISDB-T, DMB-T/H, ATSC)
Technical Specifications:
- Frequency Range: UHF: 470-862Mhz
- Gain: 18dB
- Maximum output level: 96dBμV
- Power supply: DC 12V/50mA car charger or digital decoder (DC 5V 40mA)
- Impedance: 75Ω
- Noise Ratio: >2dB
The set includes:
- Maclean MCTV-986 Antenna
- Power Module
- 5 meters antenna cable (connected to antenna)
- 12V Car Power Adapter
- Double-sided tape
- User manual EN
