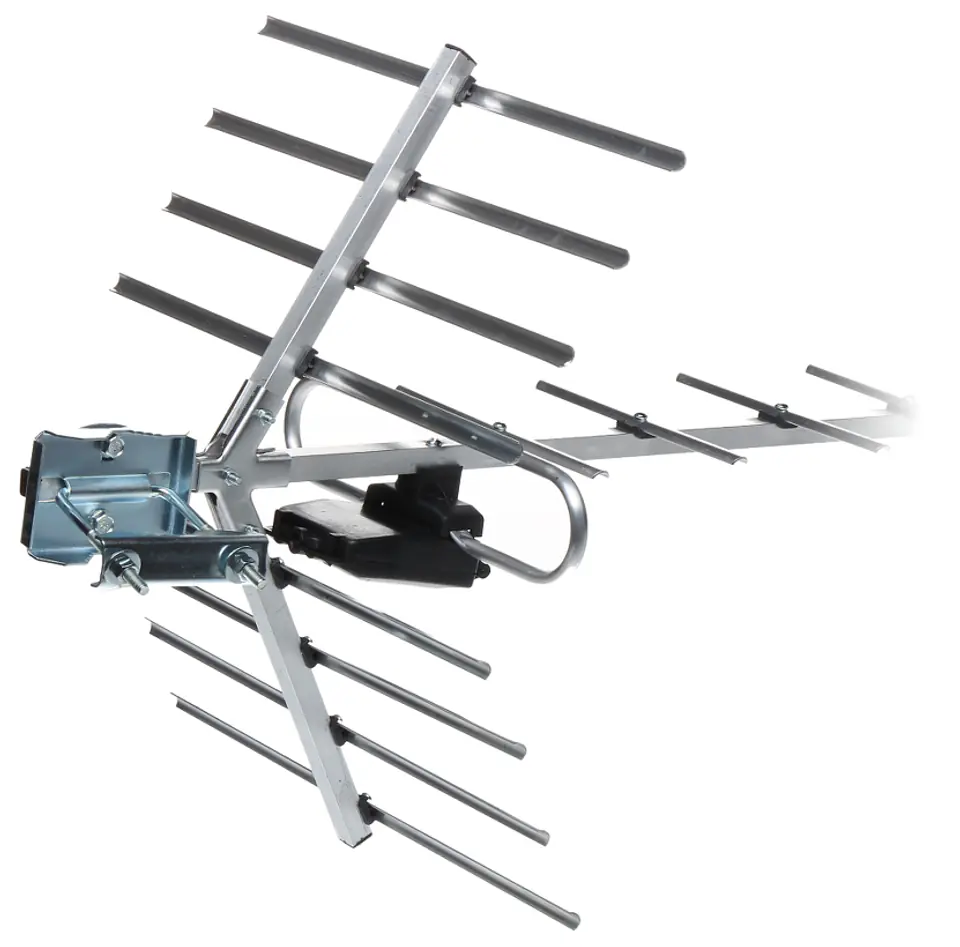

DIPOL 19/21-48 is a directional UHF antenna enabling the reception of digital TV signals.
- Band 470 - 694 MHz (UHF)
- Channels 21-48
- Profit max. 14 dBi
- H/V polarization (horizontal/vertical)
- Front/rear radiation ratio 12.4 - 18.6 dB
- Output impedance: 75
- Number of elements: 19
- Symmetrizer included

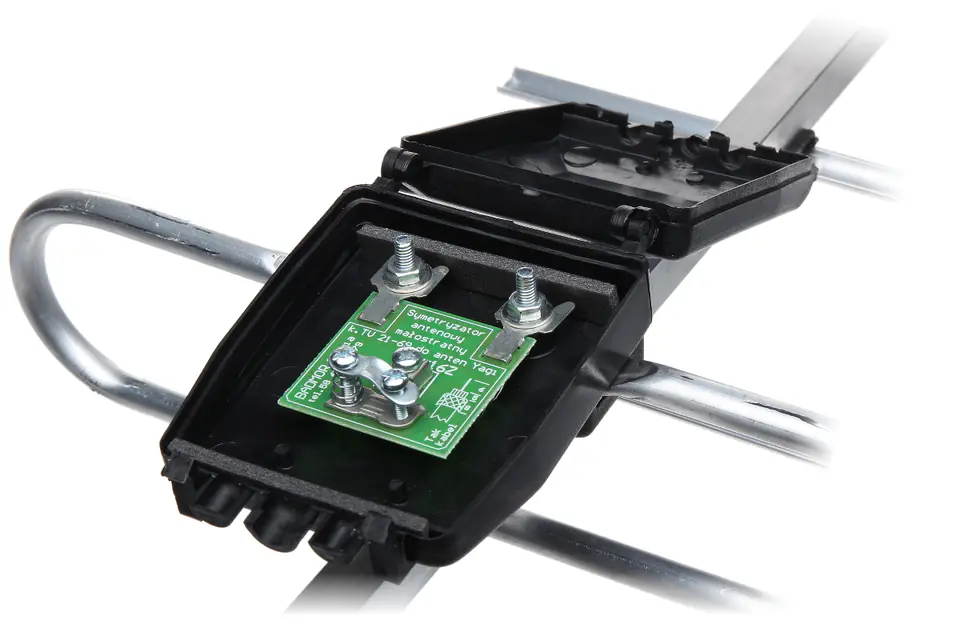

DVB-T2 antenna with built-in symmetrizer.
Antenna elements screwed to the carrier. Installation consists in fixing the reflector with two screws and takes about a minute. Antenna packed in foil. Antenna parts made of aluminum, steel structural elements galvanized.
