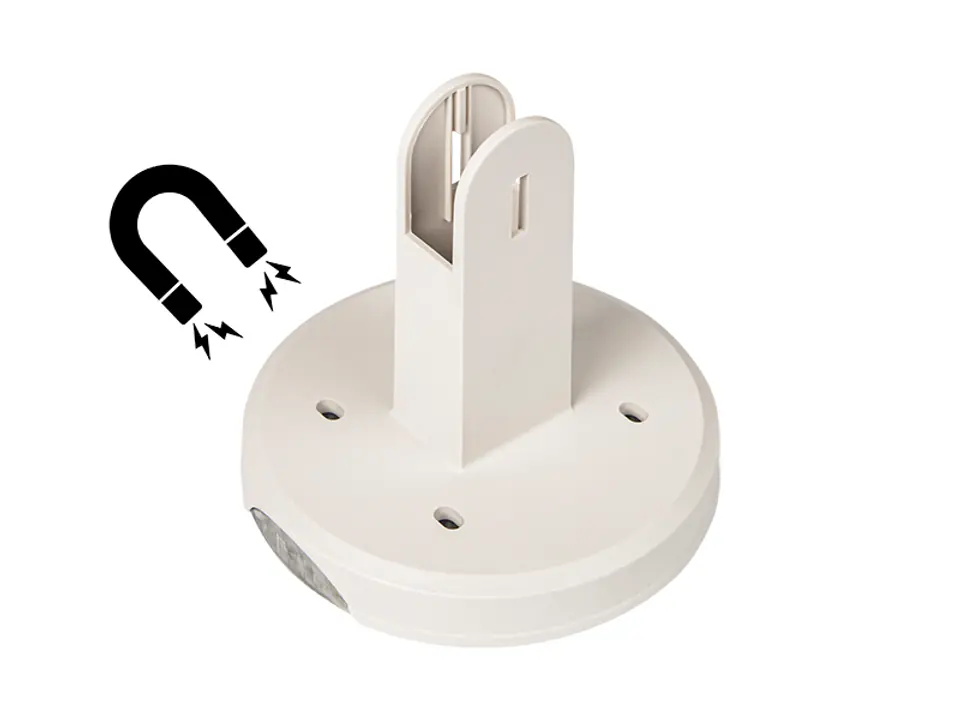

Active antenna with amplifier designed to receive DVB-T and DVB-T2 digital television standards with the possibility of 360-degree rotation. The antenna is characterized by a compact housing and increased moisture resistance. It is possible to mount with a magnetic base, using a cybant holder and directly on the wall. Ideally suited to both external and internal antenna.
Key features:
- High quality materials used during production
- Ultrasonically welded, moisture resistant
- SMT circuit, specially for receiving digital HD TV
- DVB-T and DVB-T2 reception in 4K UltraHD, FullHD, HDTV quality
- Reception of channels MUX1, MUX2, MUX3, MUX4, MUX8
- LTE interference resistance
- 3 antenna mounting options
- Can be installed indoors or outdoors
- Stylish and modern design
Specification:
- Power supply: 5V DC 50mA
- Bandwidth: UHF/VHF
- Frequency range: 170-860MHz
- UHF gain: 30 dB
- VHF gain: 30 dB
- Resistance: 75 Ohm
- Swivel capability: 360 degrees
- Dimensions: 165x130x285 mm

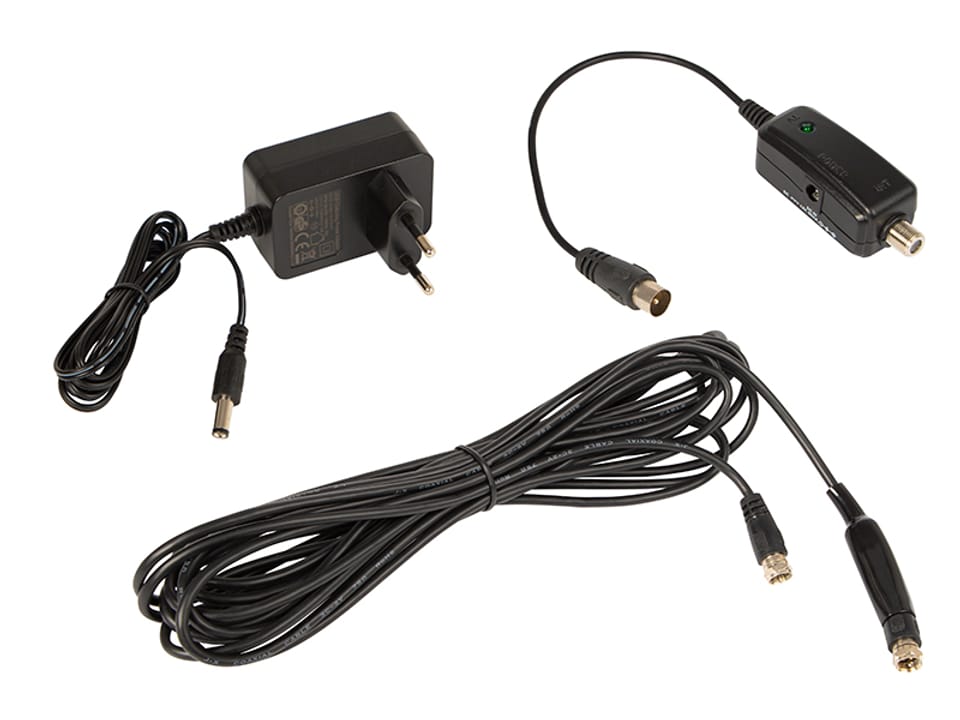

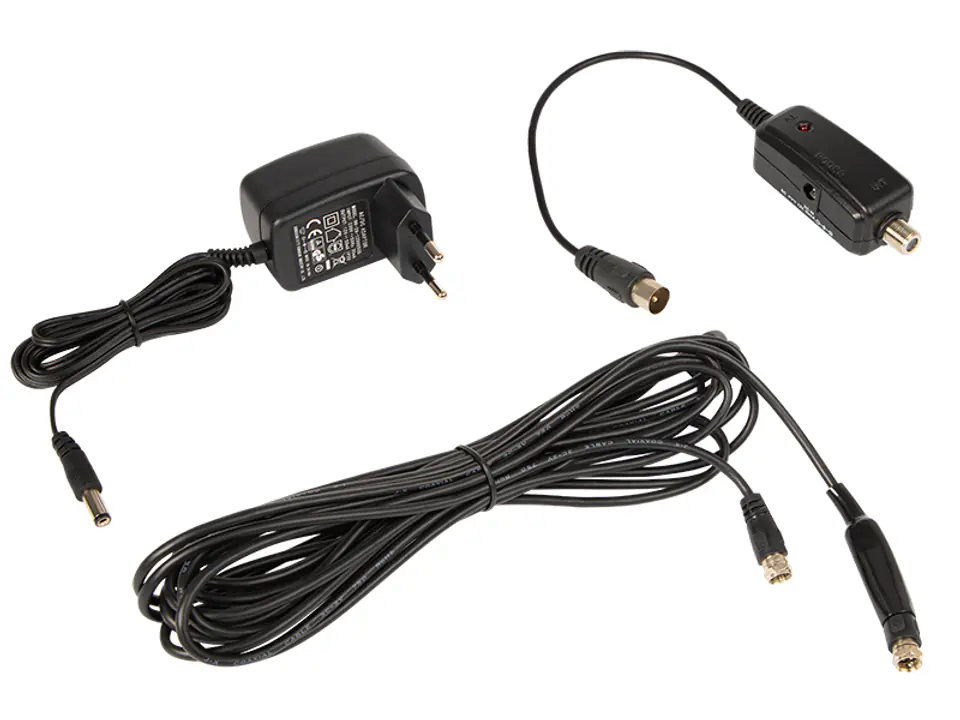

Included:
- ATD12 antenna
- AC adapter
- Antenna cables
- Instruction manual and assembly
