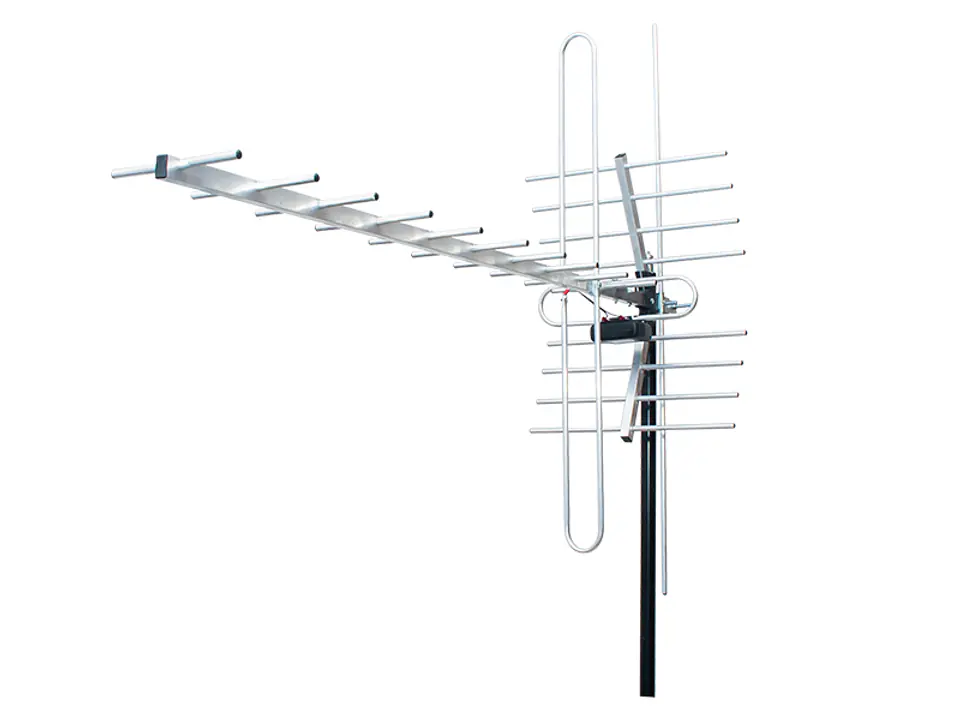

The ATD38S BLOW DVB-T antenna is an antenna designed to receive TV signals in the VHF range on channels 5-12 in vertical and horizontal polarization and in the range of 21-60 in horizontal polarization that meets the requirements of DVB-T reception.
The antenna allows you to receive TV signals broadcast on all multiplexes: MUX-1, MUX-2, MUX-3, MUX-8. The antenna is equipped with a full-range antenna symmetrizer (K 1-60) as standard. An antenna amplifier can be used in the antenna so that the antenna becomes active.
Technical data:
Channel: 5-12
Energy gain: 6-8dB
Output impedance: 300 Ohm
Polarization: vertical/horizontal
Channel: 21-60
Energy gain: 9-15dB
Output impedance: 300 Ohm
Polarization: horizontal
REMARK! In the event of a "freeze frame" effect of "boxing", it is recommended to use an antenna amplifier, then the antenna gain increases to 47dB in total.
