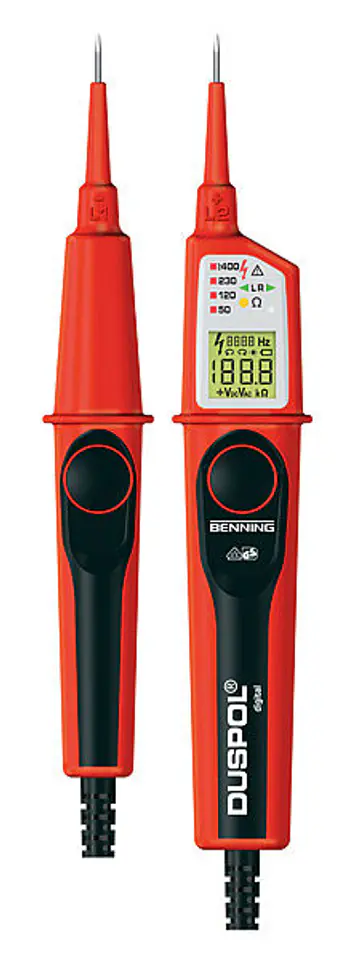

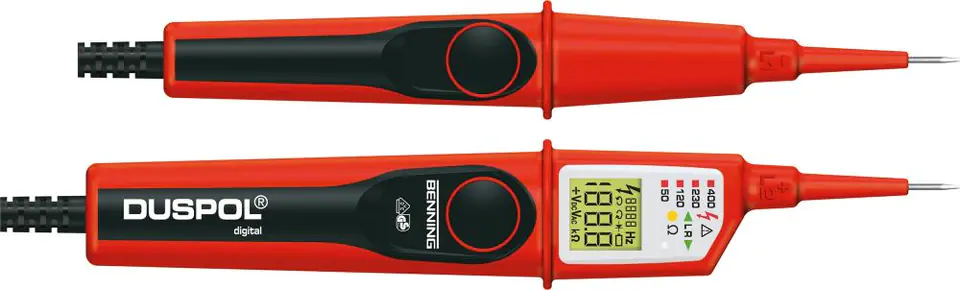

Voltage tester DUSPOL® digital
Design: tested and approved according to EN/IEC 61243-3, (DIN VDE 0682 part 401), bipolar. Body made of impact- and shatter-resistant plastic, with rubberized gripping surface, two control handles and a flexible connecting cable. Direct indication without touching the buttons (high-ohm), power connection by pressing the button (low ohm), vibration alarm. Non-contact phase indicator/cable break detector (flashing yellow LED). Lighting of the measuring point and display. Delivery with batteries, from 50 V display voltage also when batteries are discharged.
Application: for professional testing of DC and AC voltages, circuit continuity, diode, rotating field direction, resistance and frequency, and for phase and polarity control with the intended release of a protective residual current circuit breaker.
DUSPOL digital voltage sampler BENNING
€143.56
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- BENNING
- Product code:
- 8255600030 / 4014651502635
Share this product:
Specification
| Ac voltage: | 1 V – 1000 V |
|---|---|
| Continuity circuit testing: | LED, yellow/buzzer |
| Dc voltage: | 1 volts to 1200 volts |

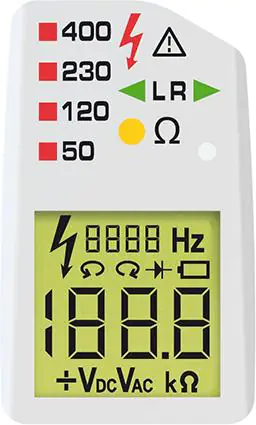

| Display: | LED/LCD |
| Field spin control: | LED, green |
| Frequency: | 1-1000 Hz |
| Lighting of the measuring point: | yes |
| Measurement category: | CAT IV 600 V, CAT III 1000 V |
| Measurement method: | TRUE RMS |
| Phase control: | LED, red |
| Polarity control: | LCD |
| Power connection: | yes |
| Resistance: | 0.1 mob- 300 cell |
| Type and number of batteries: | 2 x Micro AAA/LR03 |
| Vibrating alarm: | yes |
