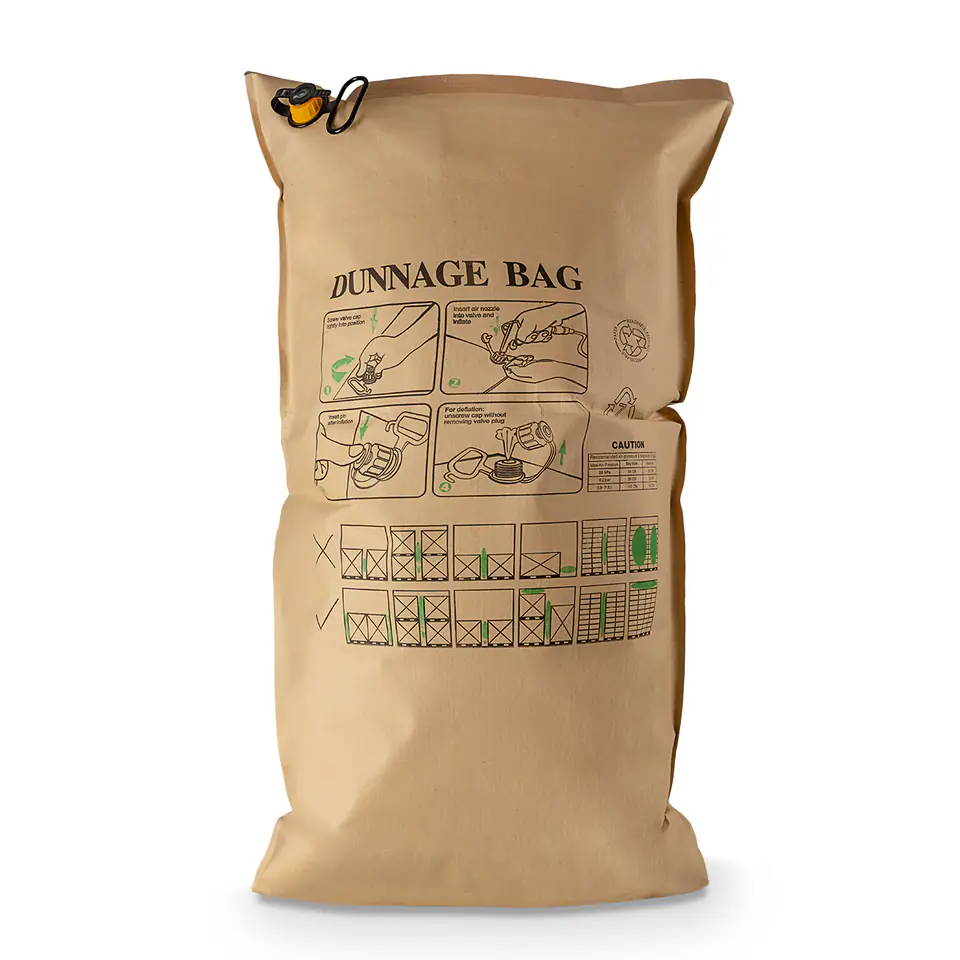

Dunnage bag for cargo protection BDB0615
A durable dunnage bag is used to secure shipments in transit. This is a cheap and extremely effective way to safely transport cargo. Air bags are easy to use. The time needed to inflate is only a few dozen seconds.
Why choose Dunnage Bags?
1. Low cost
Thanks to the low price of bags and their negligible weight, you will effectively reduce transport costs. In addition, the bags can be used repeatedly.
2. Environmentally friendly
Durable materials used in the production of bags allow for their repeated use, they are also recyclable.
3. Effective load protectionThe large surface area of dunnage bags perfectly distributes the forces acting on the transported products.
They absorb vibrations well, protect against sweeping packages, prevent tipping.
4. StorageBefore the air bag is filled with air, it is flat and lightweight, allowing for convenient storage.
5. Easy to use
For inflating the packaging, an ordinary ball pump or a compressor with a suitable tip is sufficient.
6. Wide range of sizes
There are 22 combinations of bag sizes available - thanks to this you can secure loads of various dimensions. The smallest bag has dimensions: 50x100cm, and the largest up to 120x240cm!
The safety of transported cargo is one of the key issues in transport. Damage to the entrusted goods may result in the fact that the course will cease to be profitable or even expose the company to financial losses!
Dunnage bags are an excellent option that will work well in the protection of packages transported in buses, semi-trailers, containers, trains, etc. Pillows should be placed in voids and then inflated.
Properly used bags:
- fill in voids
- prevent packages from moving around the cargo space
- protect against tipping over (e.g. refrigerators)
- fill the spaces between goods, thanks to which they do not bump against each other
Properties of dunnage bags: - structure that allows you to perfectly match the objects placed next to it
- made of high quality raw materials
- reusable (possibility of filling and draining air)
- non-inflatable take up little space
- resistance to moisture and weather conditions
- an ideal solution for securing cargo during transport
- the possibility of pumping with a hand pump or compressor with a dedicated tip
- has excellent cushioning properties
- environmentally friendly product, reusable or recyclable
- puncture resistance
- fabric: outer layer - wrapping paper laminated on PP fabric, weight 55g / m2; multilayer inner layer co-embossed PA+PE film with a special formula, the thickness of the co-insulated film is 75um.
- height: 1500mm
- width: 600mm
- working pressure: 20kPa / 0.2 bar / 2.8 PSI
- maximum pressure 3.0 PSI
- maximum size of the gap that can be filled: 20cm
- use in buses, semi-trailers, containers, warehouses, sea, air and rail transport.

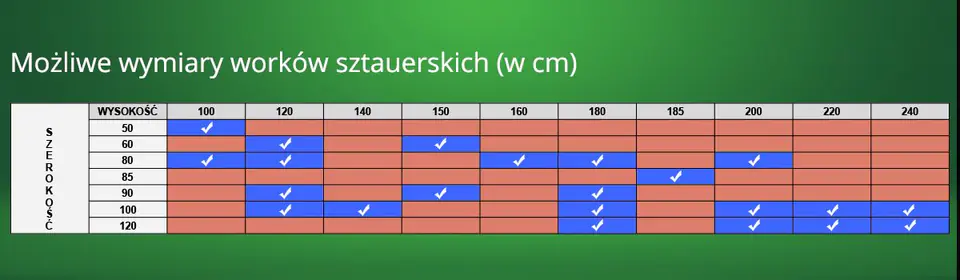

Choosing the right size of cargo bag is the key to its safety. In the table above, 22 possible bag size combinations are highlighted in blue.

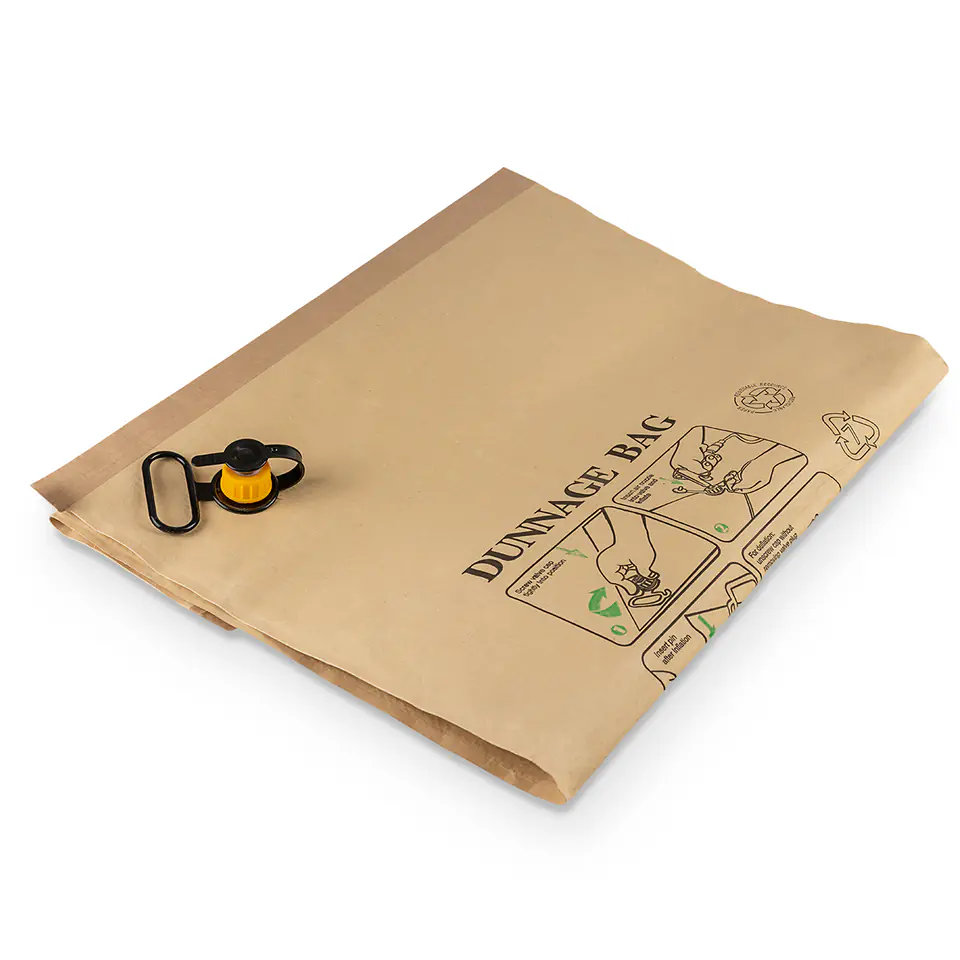

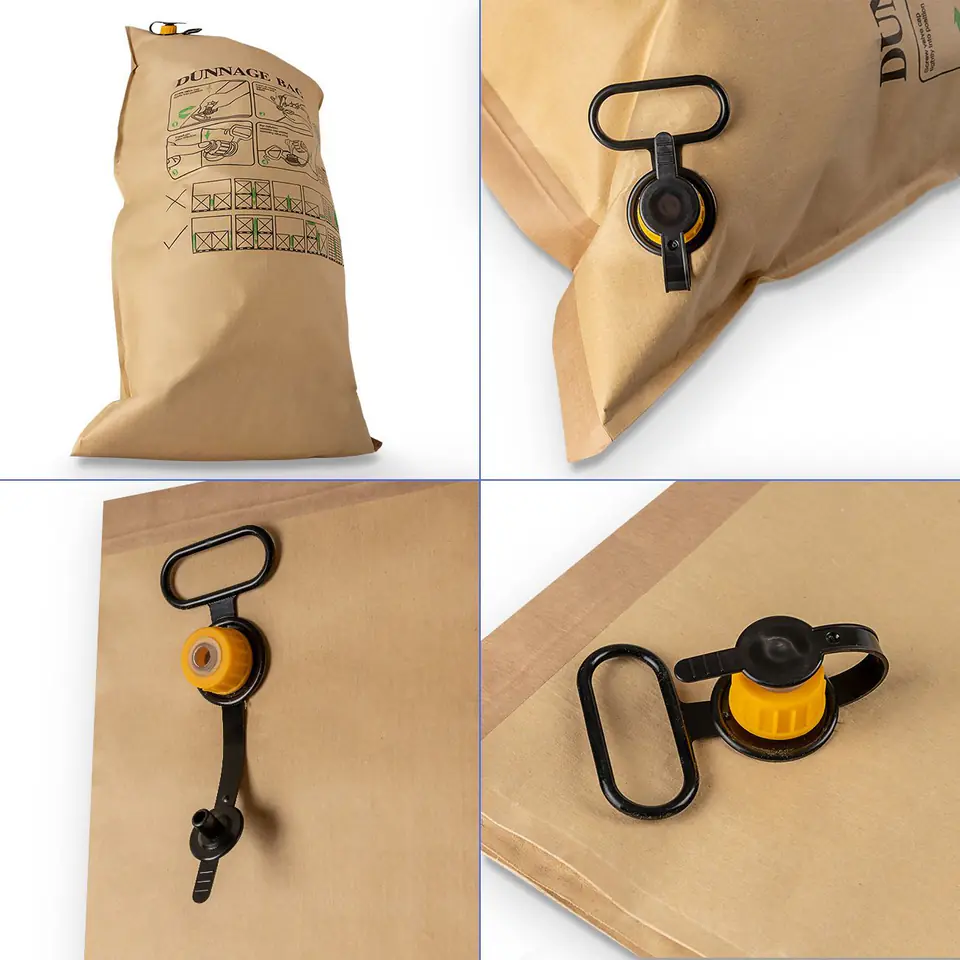

Thanks to the new Inflate & Deflate system , the bag can be easily inflated and drained if necessary. The cork is equipped with a valve that prevents air from escaping automatically. Additional protection is a cap that guarantees the tightness of the set. Another plus is the mounted handle, which makes it easy to hold the pillow when pumping. After the transport from the pillow, you can quickly drain the air by unscrewing the cork, and then use it again if necessary!

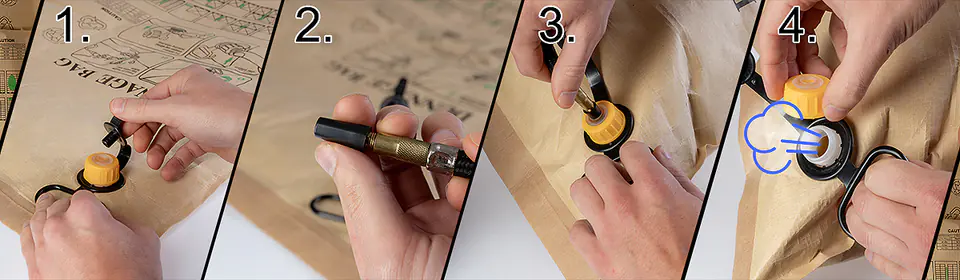

Inflating the bag is just a few simple steps:
1. Pull out the black safety cap
2. Put the right ends on the pump or compressor
3. Grab the handle, put the tip to the valve and inflate the bag
4. The air from the pillow can be drained by removing the cork.

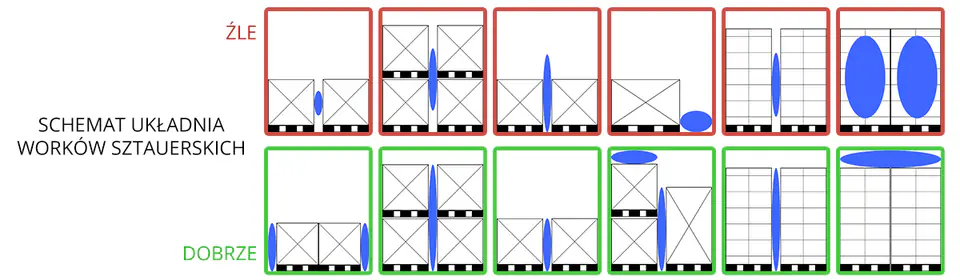

In order for the pillows to fulfill their task, they must be arranged in relation to the transported cargo. In the diagram above, you can see examples of bad and good use of pillows. There is no golden rule and each transport requires an individual approach and the use of different solutions.
In our offer you can also find bags dedicated to other items and objects.
It is also possible to produce bags tailored to your product according to depth, length, height or
height and diameter.
