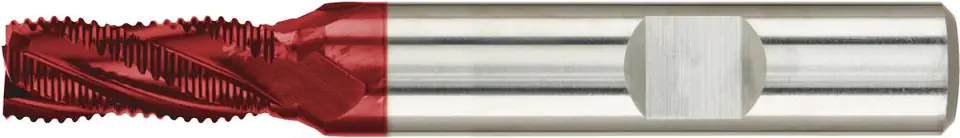

Roughing cutter, 4-6 blade, HR type, short execution, HSS-E PM, Fire coating

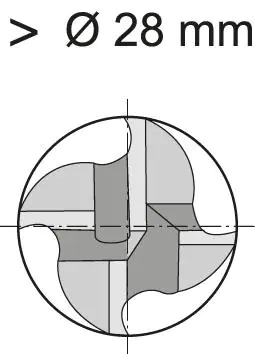

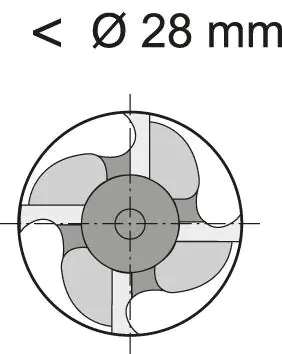

Design: up to 25mm diameter suitable for drilling.
HSS-E PM is characterized by high ductility (greater edge stability and resistance to abrasive wear) and longer durability.
It works well in unstable conditions.
Application: designed for roughing steel with a strength of up to 1000 N/mm2.
Dumple cutter, short DIN844, HSSE-PM FIRE,type NRf 6mm GÜHRING
€47.71
Shipping from warehouse: B6
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9036600060000 / 4031093683074
Share this product:
Specification
Aluminium > 8% silicon: | 150 |
---|---|
Cast iron gg/gts: | 60 |

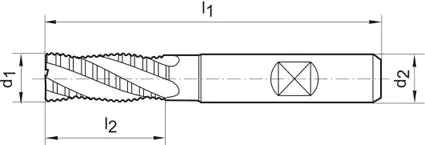

Cutting part length l2: | 13 mm |
Diameter d1 = k12: | 6 mm |
Ggg cast iron: | 48 |
Inox austenite.: | 28 |
Inox duplex: | 22 |
Inox ferrite./martenz.: | 35 |
Number of blades: | 4 |
Shank diameter d2 = h6: | 6 mm |
Steel < 1000 n/mm2: | 64 |
Steel < 1000 n/mm2 fz: | 0.029 mm/rev. |
Steel < 1400 n/mm2: | 51 |
Steel < 700 n/mm2: | 80 |
Titanium > 850 n/mm2: | 30 |
Total length l1: | 57 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
