| Aluminium > 8% silicon: | 120 |
|---|---|
| Cast iron gg/gts: | 120 |
| Copper alloys: | 80 |

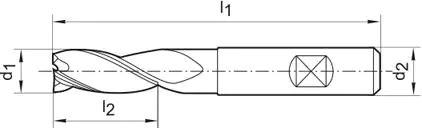

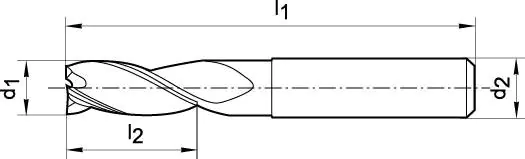

| Cutting part length l2: | 19 mm |
| Diameter d1 = h 10: | 10 mm |
| Ggg cast iron: | 96 |
| Hardened steel < 55 hrc: | 30 |
| Inox austenite.: | 48 |
| Inox duplex: | 38 |
| Inox ferrite./martenz.: | 60 |
| Shank diameter d2 = h6: | 10 mm |
| Steel < 1000 n/mm2: | 92 |
| Steel < 1000 n/mm2 fz: | 0.038 mm/rev. |
| Steel < 1400 n/mm2: | 74 |
| Steel < 700 n/mm2: | 115 |
| Titanium > 850 n/mm2: | 40 |
| Total length l1: | 72 mm |
Mandrel cutter, solid carbide

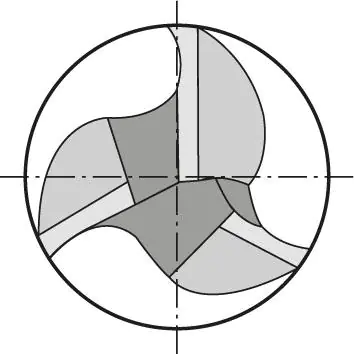

Design: type N, DIN 6527, 30°, with central blade.
Application: for wedge and keyway milling and for universal machining. Milling depth up to max. 1.5 x D. Compared to 2-blade cutters, the feed is approximately 50 % higher.
Ultrafine grain cemented carbide.
Cutting speed approx. 50 % higher than uncoated tools. Dry processing possible.
