Digital dual detector equipped with PIR and microwave detection pathThe detector can also have the anti-masking function enabled
DUAL MICROWAVE DETECTOR + PIR DM-525 PARADOX
€41.23
Shipping from warehouse: D4
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DM-525 / 5902887027833
Share this product:
Specification
| Alarm output:: | NO/NC |
|---|---|
| Colour:: | white |
| Country of origin:: | Canada |
| Detectable movement speed:: | 0.2 ... 3.5 m/s |
| Detection angle:: | 90 ° |
| Dimensions:: | 64 x 127 x 53 mm |
| Led signaling:: | 0.5 s Green - Sensor MW 0.5 s Yellow - PIR sensor 4 s Red - Alarm signal Blue - Lens masking detection |
| Manufacturer / brand:: | PARADOX |
| Maximum load on outputs:: | 150 mA / 28 V DC |
| Microwave frequency band:: | 10.525 GHz |
| Operating temperature:: | -20 °C ... 50 °C |
| Power:: | 10 V ... 16 VDC / 30 mA |
| Pyroelement:: | Double |

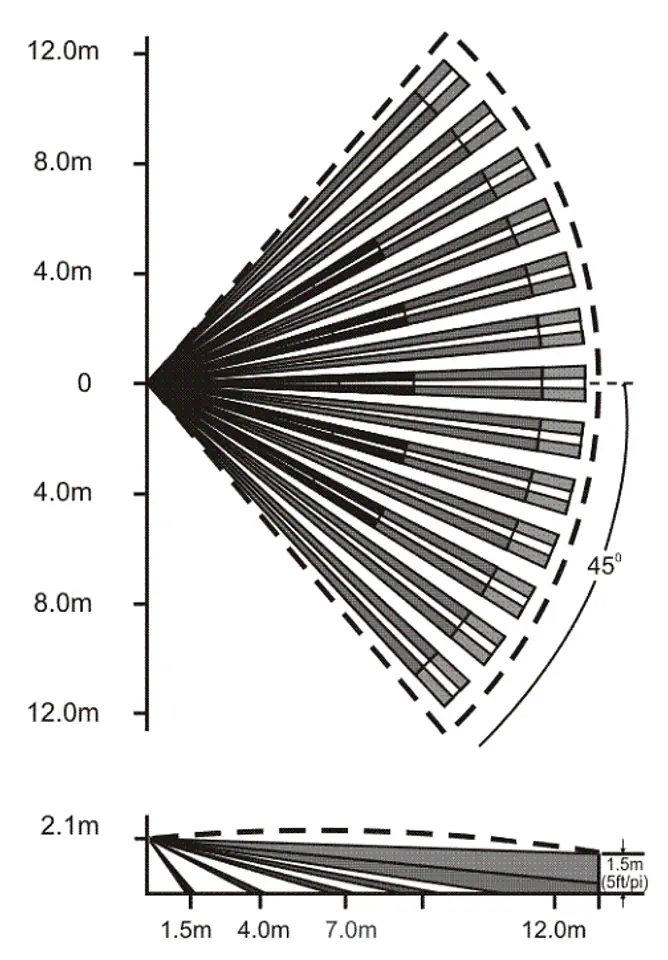

| Range:: | Max. 12 x 15 m |
| Recommended mounting height:: | 2.1 ... 2.7 m |
| Scales:: | 0.124 kg |
| Selected features:: | EN 55022, EN 60950, EN 50130-4 digital detection algorithm with temperature compensation, providing high resistance to false alarms and repeatability of parameters Resistance to changes in environmental conditions Approach zone control Tamper detection - housing opening, detachment from the ground Interchangeable Fresnel lenses Test mode |
| Sensitivity adjustment:: | Potentiometer - Microwave (MW) |
| Sensor type:: | Passive infrared (PIR) and microwave (MW) |
| Tamper output:: | NC |
| Use:: | Internal |
| Violation signaling time:: | 4 sec |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
