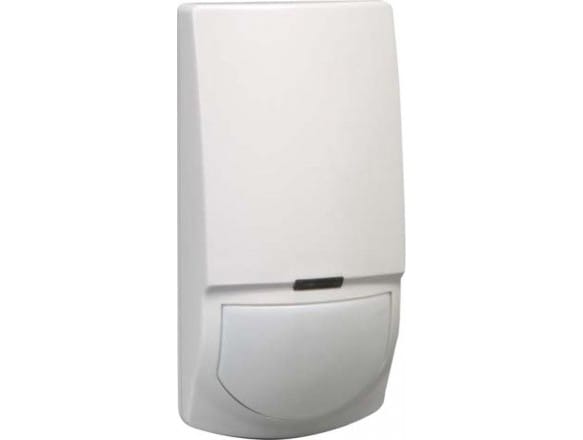

DUAL DETECTOR MICROWAVE + PIR SWAN-1000 CROW

€40.18
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
CROW
Product code:
SWAN-1000 / 5902887019418

Specification

Alarm outputs:Alarm output: N.C. 28V DC 0.1 A with 10 Ohm resistor in the lineTamper: N.C. 28V DC 0.1 A with 10 Ohm resistor in line
Detection angle:130 °
Dimensions:124 x 62 x 38 mm
Infringement signalling time:2 sec ± 1 sec
Led signaling:Flashing yellow LED during soaking red LED: ON - alarm active green LED: PIR TRACK yellow LED: MW TRACK
Power:8.2 volts ... 16 V DC25.5 mA Active State16.5 mA Standby
Producer / brand:CROW
Pyroelement:quadruple
Range:3m @ 130° 27m @ 20°
Recommended mounting height:1.5 m ... 3.1 m
Scales:0.11 kg
Selected features:Quad technology and hard lens for improved detection and elimination of false alarms Microwave detection based on Doppler effect Unique microwave antenna module Electronics based on VLSI technology with signal spectrum analysis Freedom of installation height 2-ways to adjust microwave sensitivity 2-ways to adjust PIR sensitivity Two-way temperature compensation Immunity to interference Resistance to animals up to 25 kg, less than 1 m
Sensor type:Passive infrared (PIR) and microwave (MW)
Use:Internal
Warranty:2 years

The SWAN-1000 detector is a combination of PIR sensors and microwave, providing protection against intruders based on a PIR sensor and a microwave antenna (Doppler effect)Using microprocessor technology, based on signal processing in the ASIC, SWAN-1000 eliminates false alarms caused by small animals

Microwave technology makes it possible to detect an intruder also through the wallFor example, by installing the detector in the garage, it is possible to detect both in the garage itself and outside

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
