Digital dual detector equipped with PIR and microwave detection path
The device's double mirror optics ensure uniform coverage and sensitivity in all areas of the detection fieldHigh resistance to false alarms

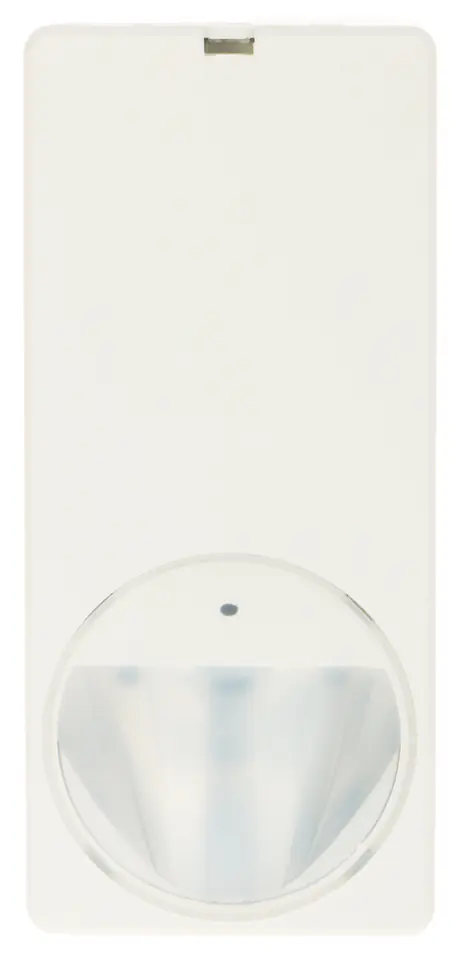

DUAL DETECTOR MICROWAVE + PIR PDM-IXA12T Vanderbilt
€91.16
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Vanderbilt
- Product code:
- PDM-IXA12T / 4025515470489
Share this product:
Specification
| Alarm output:: | NC |
|---|---|
| Detectable movement speed:: | 0.1 ... 4 m/s |
| Dimensions:: | 57 x 128 x 32 mm |
| Environmental class:: | EN 50131-2-4 Grade 3 |
| Manufacturer / brand:: | Vanderbilt |
| Maximum load on outputs:: | 100 mA / 30 V DC |
| Mechanical resistance class:: | IK02 |
| Microwave frequency band:: | 10.525 GHz |
| Operating temperature:: | -10 °C ... 55 °C |
| Permissible relative humidity:: | < 95 % RH (bez kondensacji) |
| Power:: | 9 V ... 16 V DC / 10.5 mA (max) |

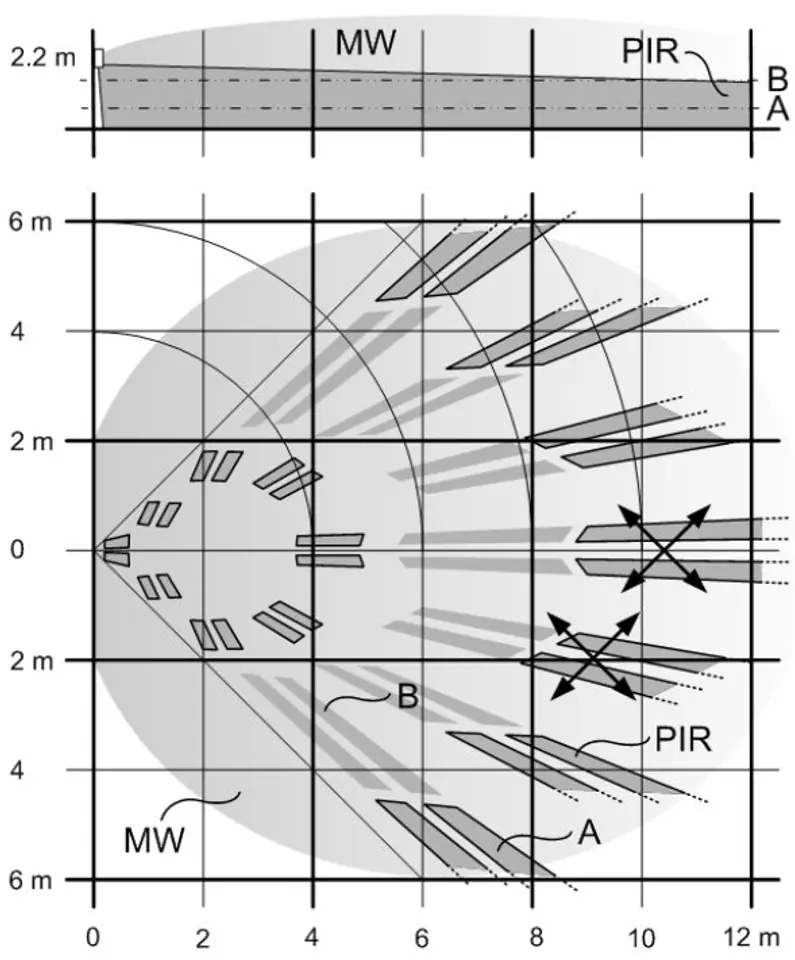

| Range:: | 12 x 12 m |
| Scales:: | 0.1 kg |
| Sealing:: | IP41 |
| Selected features:: | Matchtec Algorithm MAGIC Mirror Technology Reliable Intruder Detection High False Alarm Resistance Built-in Parametric Resistors RI: 4.7kΩ 250mW, RF: 2.2kΩ 250mW, REoL: 4.7kΩ 250mW Low Current Consumption Very easy installation |

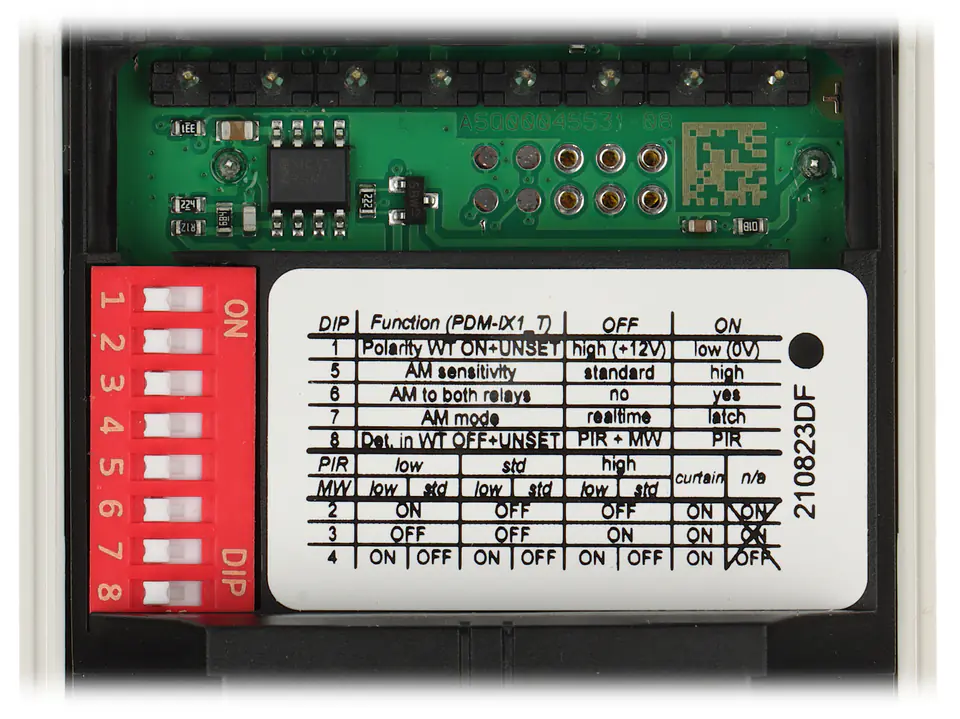

| Sensitivity adjustment:: | 6-step |
| Sensor type:: | Passive infrared (PIR) and microwave (MW) |
| Use:: | Internal / External |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
