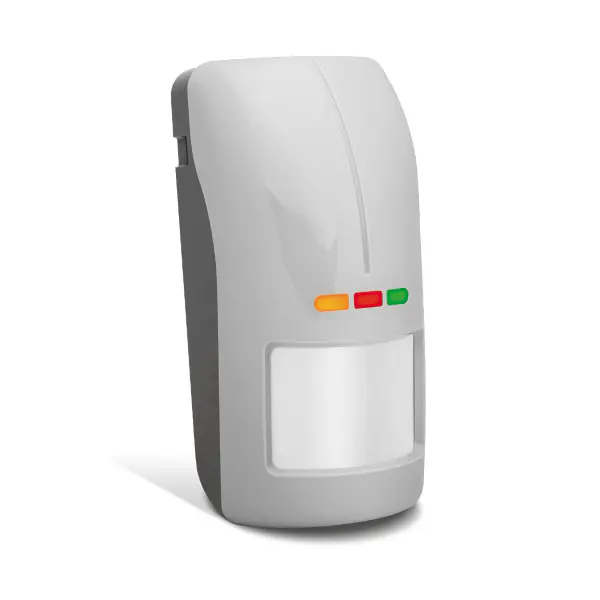

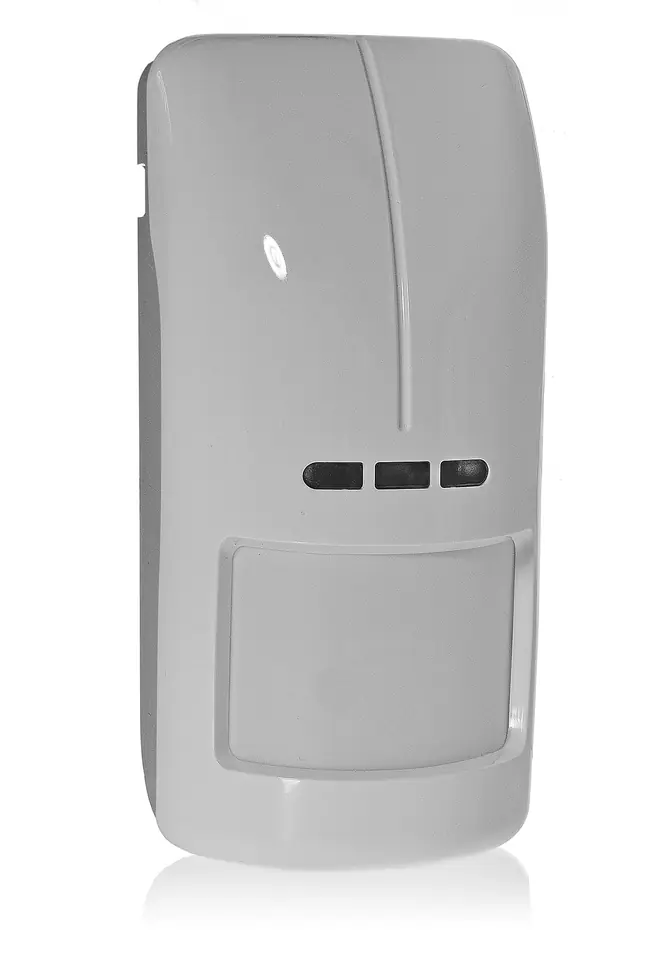

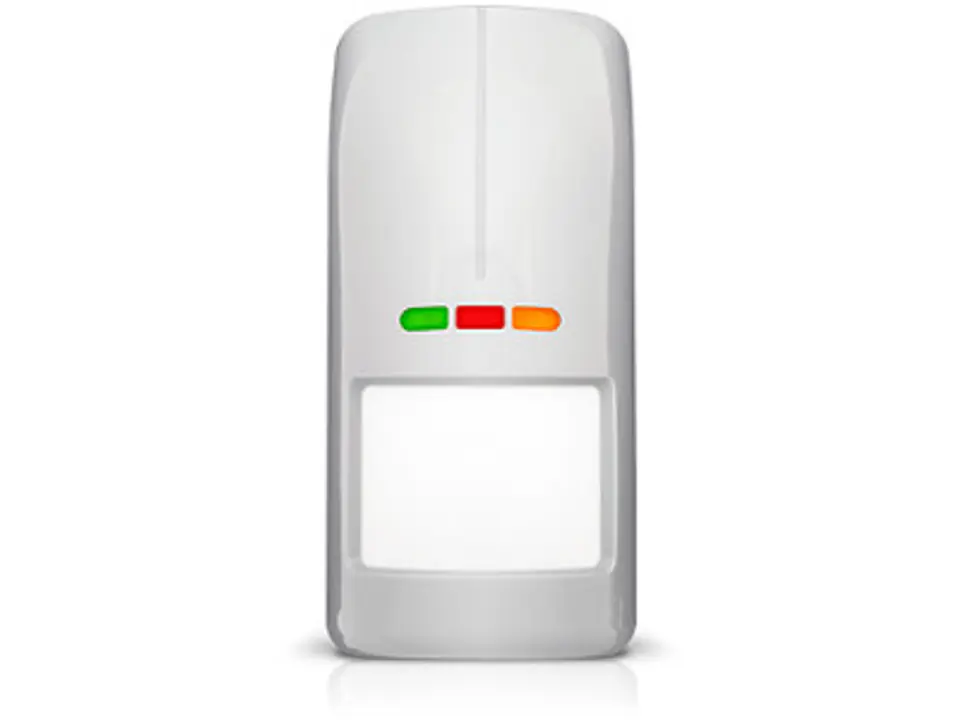

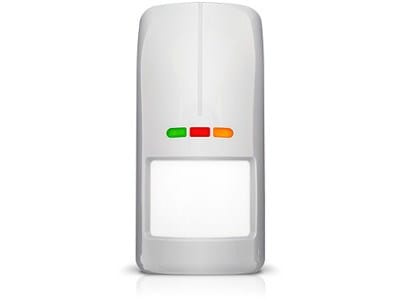

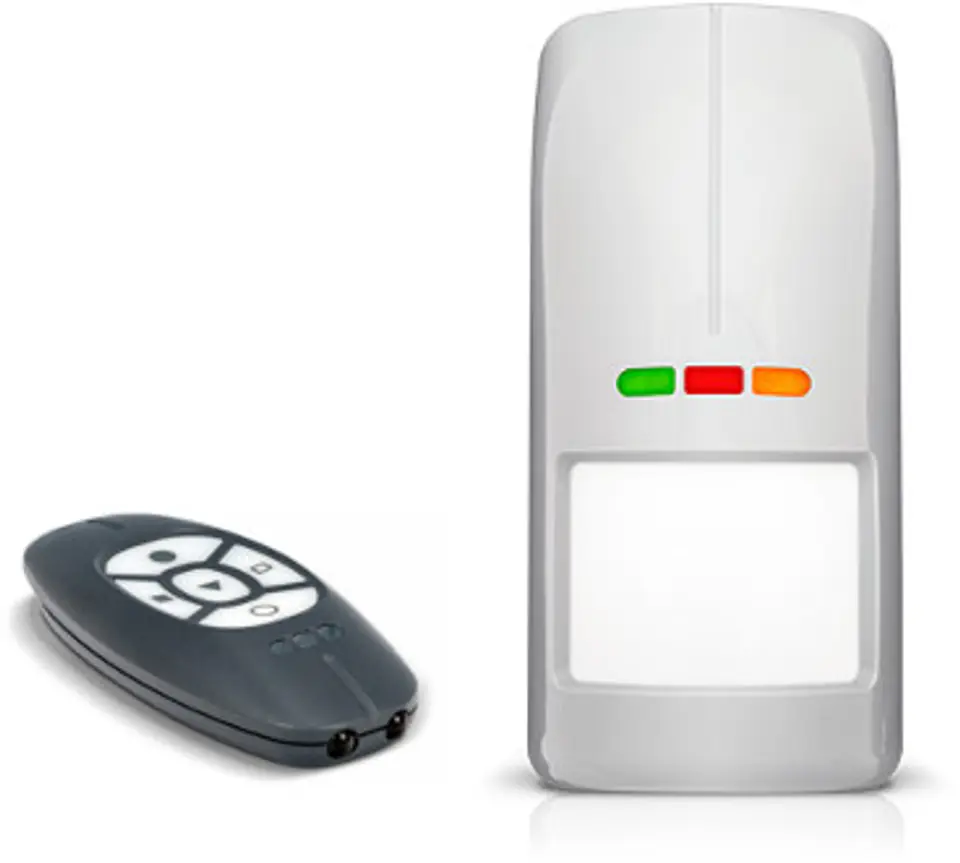

DUAL DETECTOR MICROWAVE + PIR OPAL-PRO-GY SATEL

€121.05
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Satel
Product code:
OPAL-PRO-GY / 5905033334434

Specification

Alarm output::NC
Animal resistance::≤ 20 kg
Anti-masking function::Active IR anti-masking
Colour::Grey
Detectable movement speed::0.3  ... 3 m/s
Detection angle::100 °
Dimensions::139 x 65 x 58 mm
Environmental class en 50130-5::IIIa
Grade::EN 50131-2-4, Grade 3
Led signaling::4 s Green - Sensor MW 2 s Red - Alarm signal 4 s Yellow - PIR sensor
Manufacturer / brand::SATEL
Maximum load on outputs::40 mA / 16 V DC - Relay output 50 mA / 12 V DC - Day/Night Mode, OC
Microwave frequency band::24 GHz
Operating temperature::-40 °C ... 55 °C
Power::12 VDC / 20 mA
Pyroelement::Double

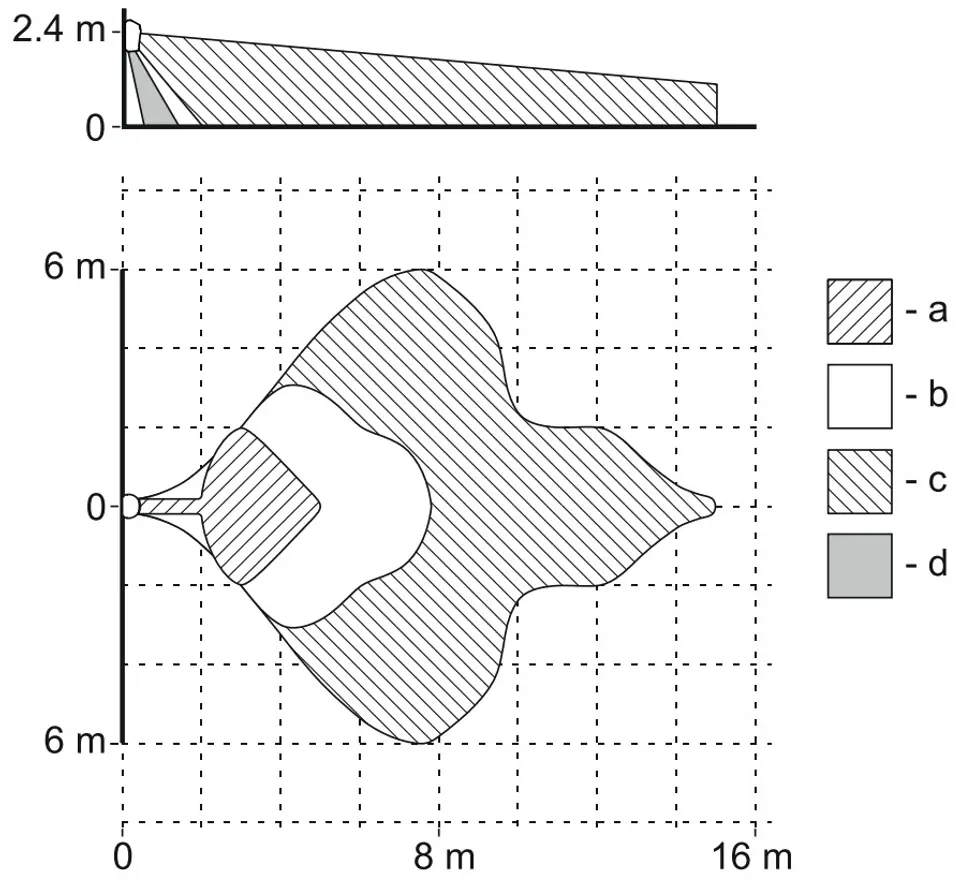

Range::Max. 12 x 15 m
Recommended mounting height::2.4 m
Scales::0.180 kg
Selected features::Protection class - IP54 EN 50130-4, EN50130-5, EN 50131-1, EN 50131-2-4 digital detection algorithm with temperature compensation, providing high resistance to false alarms and repeatability of parameters Resistance to changes in environmental conditions Control of the approach zone Tamper detection - housing opening, detachment from the ground Twilight sensor - open collector output (OC), Remote management
Sensitivity adjustment::16-step - Button control, Remote control
Sensor type::Passive infrared (PIR) and microwave (MW)
Tamper output::NC
Use::External
Violation signaling time::2 sec
Warranty::2 years

Digital dual detector equipped with PIR and microwave detection path

The construction of the OPAL-PRO-GY detector meets the requirements of EN 50131-2-4, Grade 3Thanks to this, this device can be used to protect the interiors of buildings particularly vulnerable to burglary, in which a high degree of protection is required, m.in in jewelry stores and in rooms of public buildingsTherefore, this device can be used to protect the interiors of buildings particularly vulnerable to burglary, in which a high degree of protection is required, m.in. in jewellery shops and in public buildings

Works with OPT-1 wireless remote control. (Note: remote control must be purchased separately)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
