DUAL DETECTOR MICROWAVE + PIR IX-AM-PLUS VIDICON

€32.35
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Thu, Nov 28
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
VIDICON
Product code:
IX-AM-PLUS / 5902887073274

Specification

Alarm outputs:NC, EOL - Set with jumpers
Colour:white

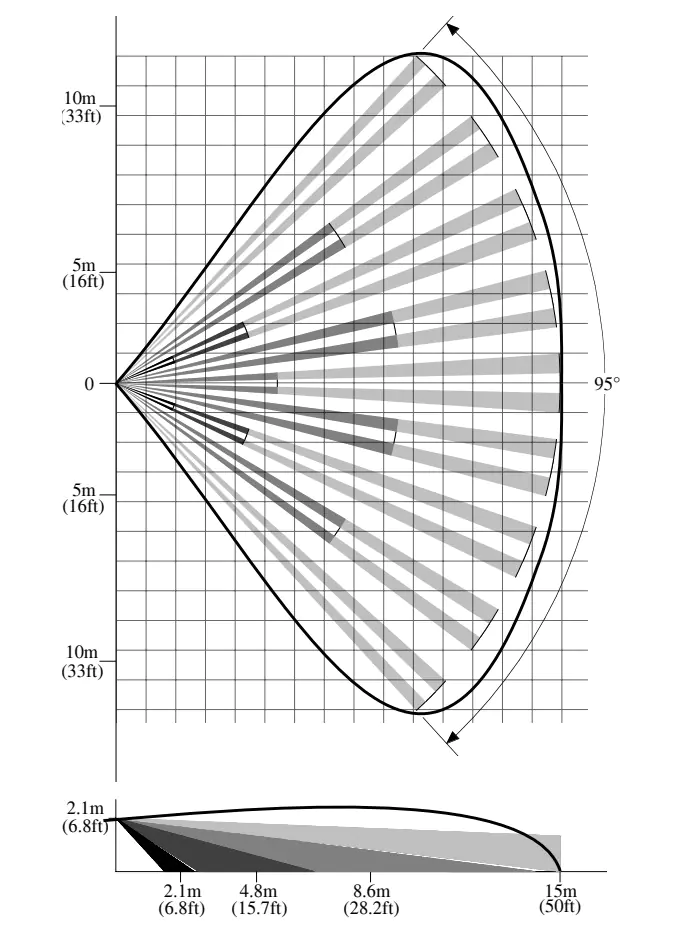

Detection angle:100 °
Dimensions:63 x 114 x 40 mm
Grade:EN 50131-2-4 Grade 3
Maximum current consumption:56 mA
Operating temperature:-20  ... 50 °C
Power:9  ... 15 volts DC
Producer / brand:VIDICON
Range:15 m
Resistance to animals:≤ 20 kg
Scales:0.08 kg
Selected features:Digital detector Fresnel lens matrix in LODIFF® technology Fresnel lenses with UV filter - POLY IR® White light filter LED signaling High resistance to RF interference: 30 V/m AND and Smart-OR functions Pulse counter Built-in EOL parametric resistors Tamper detection - housing opening, detachment from the mount Wall mounting: 1.8 ... 2.2 m
Sensor type:Passive infrared (PIR) and microwave (MW)
Use:Internal
Warranty:2 years

Digital dual detector with anti-masking equipped with PIR and microwave detection pathDual infrared and microwave detection technology and advanced digital analysis functions provide a high level of protection against intrusion attempts and reduce the risk of false alarmsThanks to the FULLY digital technology, the detector is much more accurate in detecting intrusion and is not subject to interference such as: white light, ultraviolet light, temperature change, air movement from heating/cooling systems and is completely resistant to electromagnetic radiation.

The device is equipped with AND and Smart-OR functions to generate an alarm: in the first case, the signal is activated when both sensors detect movement simultaneously, in the second case, the signal is activated as soon as one of the two sensors detects movement for a long time

Thanks to its resistance to animals, IX-AM-PLUS can provide protection even when small pets are within its surveillance range

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
