| Alarm outputs:: | NC |
|---|---|
| Animal resistance:: | ≤ 45 kg |
| Detection angle:: | 94 ° |
| Dimensions:: | 60 x 105 x 44 mm |
| Grade:: | EN 50131-2-4 Grade 2 |
| Maximum current consumption:: | 9 mA |
| Maximum load on outputs:: | 25 VDC / 0.1 A |
| Operating temperature:: | -10 ... 55 °C |
| Power:: | 9 ... 15 VDC |
| Pyroelement:: | Double |
| Range:: | 12 x 12 m |
| Scales:: | 0.08 kg |
| Selected features:: | Trifocus three-focal optics |
| Sensitivity adjustment:: | Potentiometer - Microwave (MW) |
| Sensor type:: | Passive infrared (PIR) and microwave (MW) |
| Use:: | Internal |
| Warranty:: | 2 years |

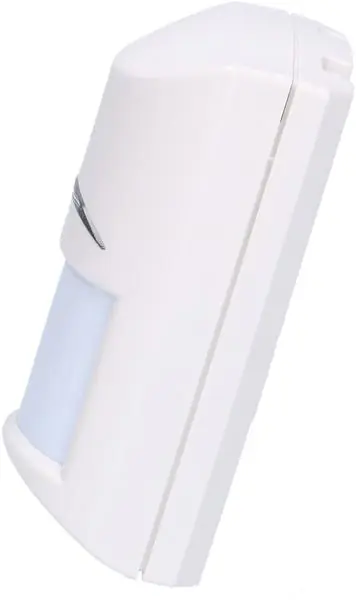

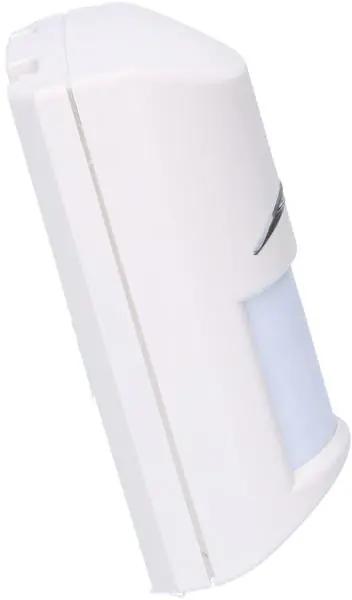

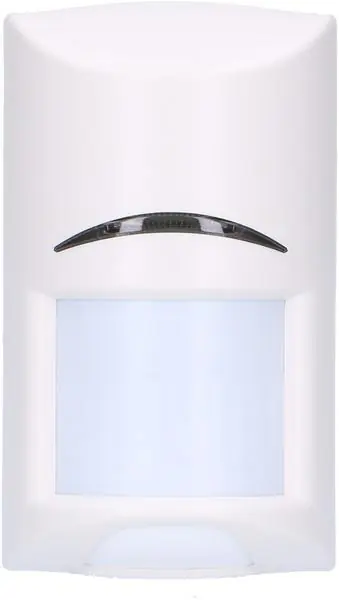

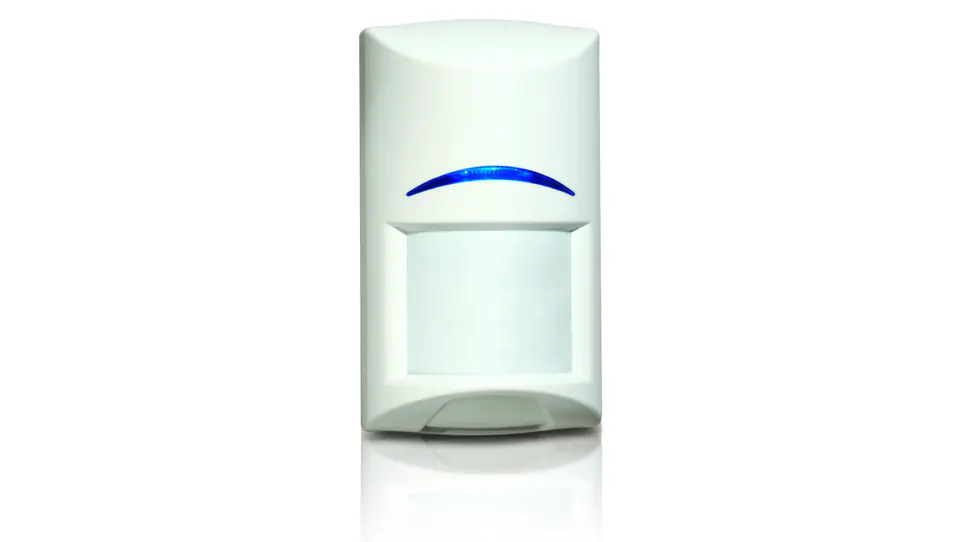

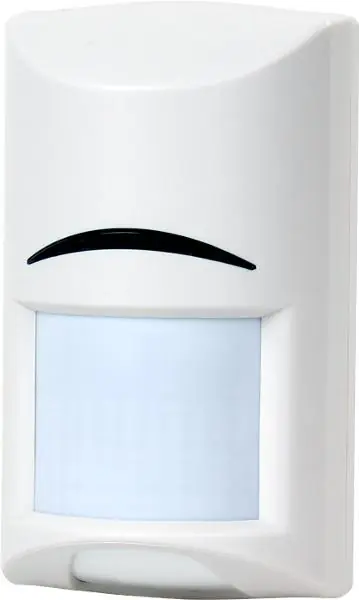

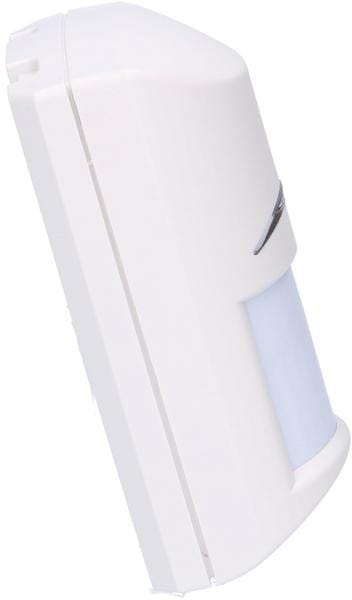

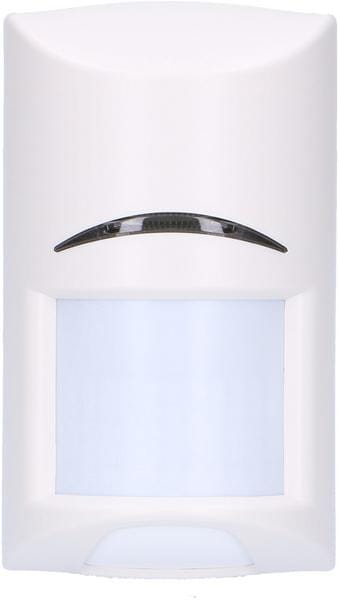

Digital dual detector equipped with PIR and microwave detection pathIf the PIR sensor is activated and the MW detection confirms the excitation of the PIR sensor, then an alarm signal will be sent to the alarm control panel
The device is designed to protect rooms where unfavorable conditions prevail – drafts or intensive convection, e.g. rooms with fireplaces or blowing heating
