| Alarm output:: | NC |
|---|---|
| Anti-masking function:: | Active IR anti-masking |
| Colour:: | white |
| Detectable movement speed:: | 0.3 ... 3 m/s |
| Detection angle:: | 10 ° |
| Dimensions:: | 44 x 105 x 40 mm |
| Environmental class en 50130-5:: | IIIa |
| Grade:: | 3 |
| Led signaling:: | 4 s Green - SENSOR MW 2 s Red - Alarm signal 4 s Blue - PIR sensor |
| Manufacturer / brand:: | SATEL |
| Microwave frequency band:: | 24.125 GHz |
| Operating temperature:: | -40 °C ... 55 °C |
| Power:: | 12 VDC / 25 mA |
| Pyroelement:: | Double |

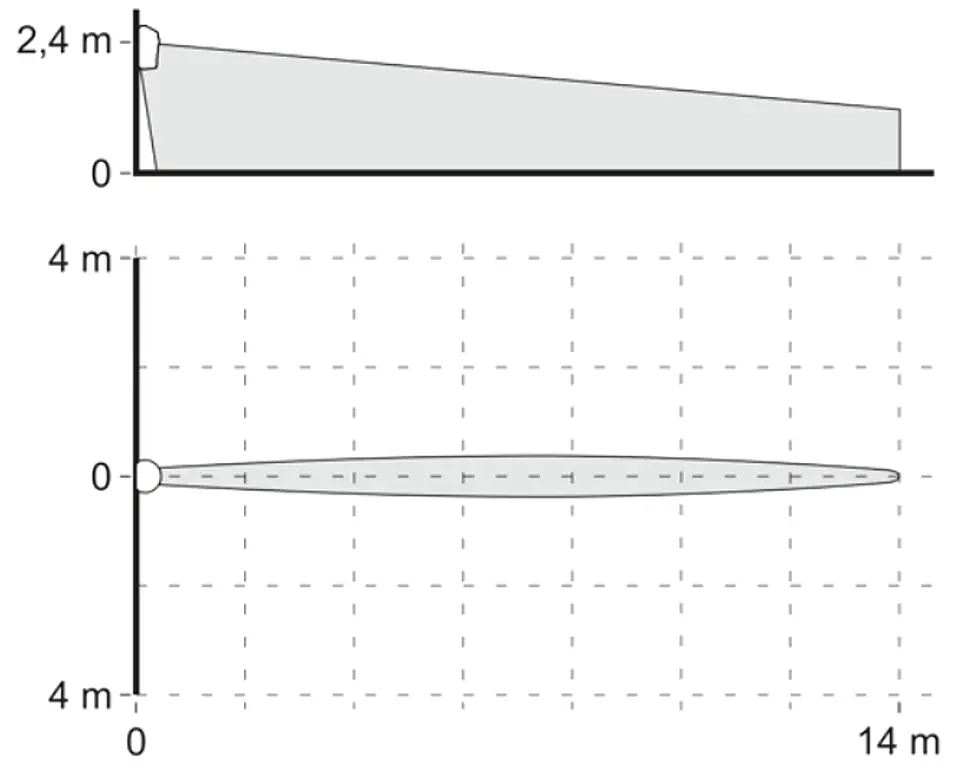

| Range:: | Max. 14 m |
| Recommended mounting height:: | 2.4 m |
| Scales:: | 0.092 kg |
| Selected features:: | Protection class - IP54 EN 50130-4, EN50130-5, EN 50131-1, EN 50131-2-4 Environmental class EN 50130-5 : IIIa Ability to work in adverse weather conditions (rain, snow, fog, strong wind) digital detection algorithm with temperature compensation, ensuring high resistance to false alarms and repeatability of parameters Resistance to changes in environmental conditions Control of the approach zone Tamper detection - opening of the housing, detachment from the ground |
| Sensitivity adjustment:: | PIR sensor - Microwave potentiometer (MW) - Potentiometer |
| Sensor type:: | Passive infrared (PIR) and microwave (MW) |
| Use:: | External |
| Violation signaling time:: | 2 sec |
| Warranty:: | 2 years |

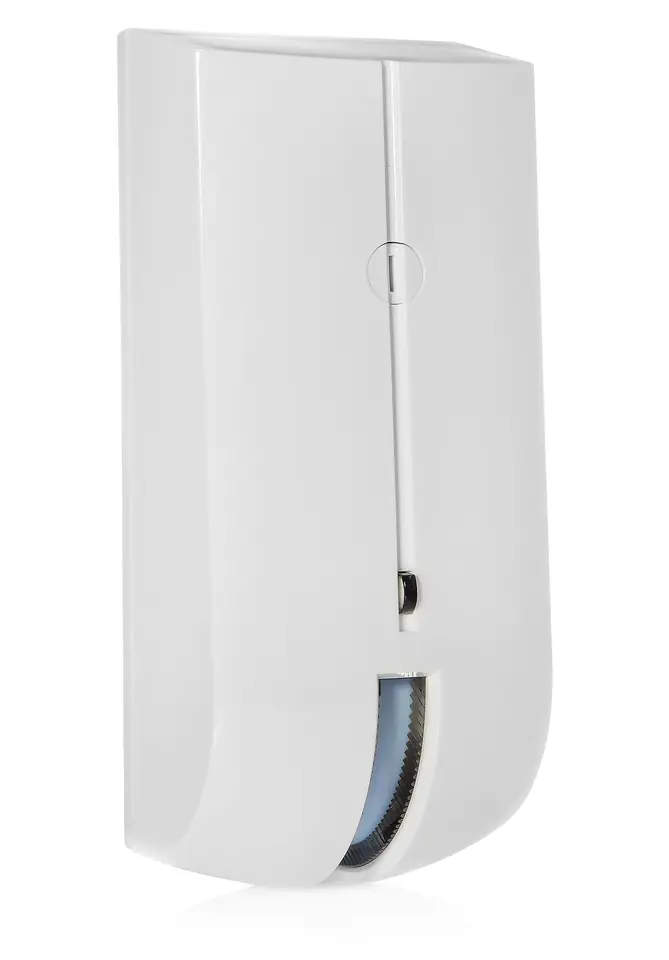

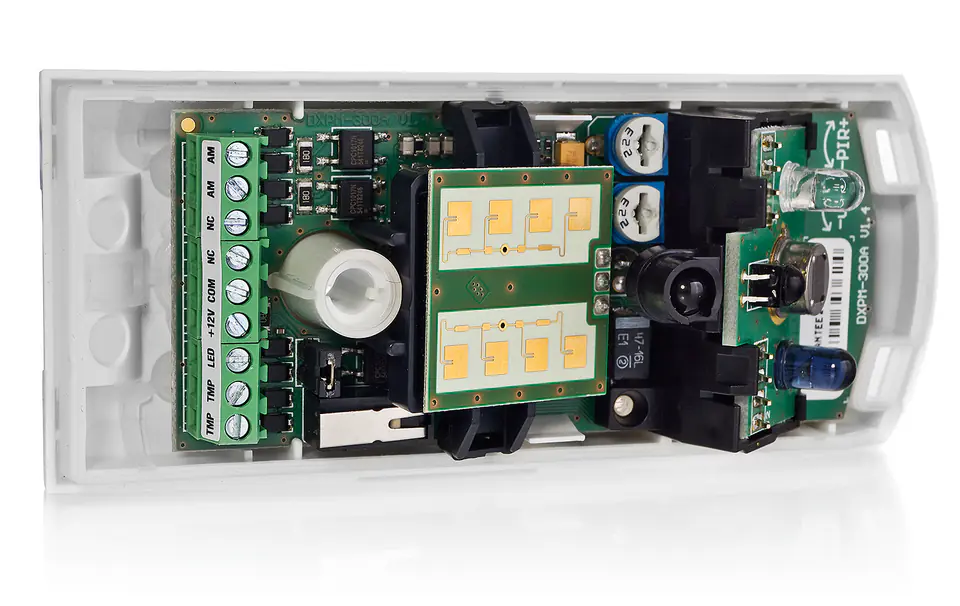

Digital dual detector equipped with PIR and microwave detection path
The design of the AGATE detector meets the requirements of EN 50131-2-4, Grade 3Thanks to this, this device can be used to protect the interiors of buildings particularly vulnerable to burglary, where a high degree of protection is required, m.in in jewelry stores and in rooms of public buildings
