Specification:
DC voltage: 200mV/2V/20V/200V/1000V ±(0.8%+5)
AC voltage: 200mV/2V/20V/200V/750V ±(1,0%+5)
DC current: 20μA/200μA/2000μA/20mA/200mA/2A/20A ±(2.0%+2)
AC Current: 20μA/200μA/2mA/20mA/200mA/2A/20A ±(2.0%+3)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(1.0%+4)
Capacity: 2nF/20nF/200nF/2uF/20uF/200uF +/-(4%+5)
Temperature: -40°C~150°C +/-(1.0%+4), 150°C~1370°C +/-(1.5%+15)
Frequency: 2KHz/20KHz +/-(3% + 5)
Transistor hFe Test: YES
Acoustic Continuity Tester: YES
Diode Test: YES
LOGIC: YES
Display: LCD, adjustable
Power Supply: 9V battery
Sampling rate: 2 times per second
Measurement method: A/D converter double integral
Out of range indication: only the number "1" on the screen
Working temperature: 0-40 degrees Celsius
Storage temperature: -10-50 degrees Celsius
Dead battery indication: On-screen battery icon
Product dimensions: 190x90x33mm
Item weight: 227g

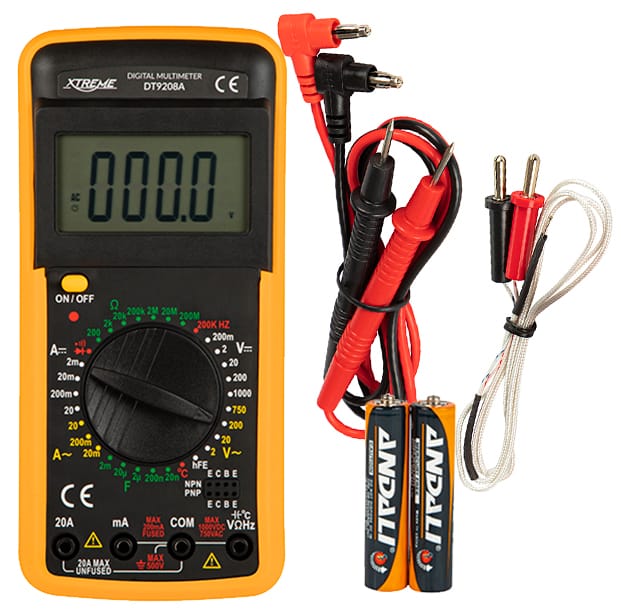

Included: meter, batteries, necessary wires
Key features:
Adjustable LCD display
Rotary switch for selecting specific functions, ranges, and turning the meter on and off
Test leads included
Power supply from 9V DC battery
Indication of a dead battery
Out-of-range indication
Rubber, removable cover
The multifunctional XTREME meter is designed not only for professionals, but also for beginner DIY enthusiasts thanks to its simple operation. Small dimensions will allow you to have the product almost always with you, which will allow you to check the parameters in various situations.
