Specification:
DC voltage: 200mV/2V/20V/200V/1000V ±(0.8%+5)
AC voltage: 200mV/2V/20V/200V/750V ±(1,0%+5)
DC current: 20μA/200μA/2000μA/20mA/200mA/2A/20A ±(2.0%+2)
AC Current: 20μA/200μA/2mA/20mA/200mA/2A/20A ±(2.0%+3)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(1.0%+4)
Capacity: 2nF/20nF/200nF/2uF/20uF/200uF +/-(4%+5)
Transistor hFe Test: YES
Acoustic Continuity Tester: YES
Diode Test: YES
Display: LCD, adjustable
Power Supply: 9V battery
Sampling rate: 2 times per second
Measurement method: A/D converter double integral
Out of range indication: only the number "1" on the screen
Working temperature: 0-40 degrees Celsius
Storage temperature: -10-50 degrees Celsius
Dead battery indication: On-screen battery icon
Product dimensions: 190x90x33mm
Item weight: 227g

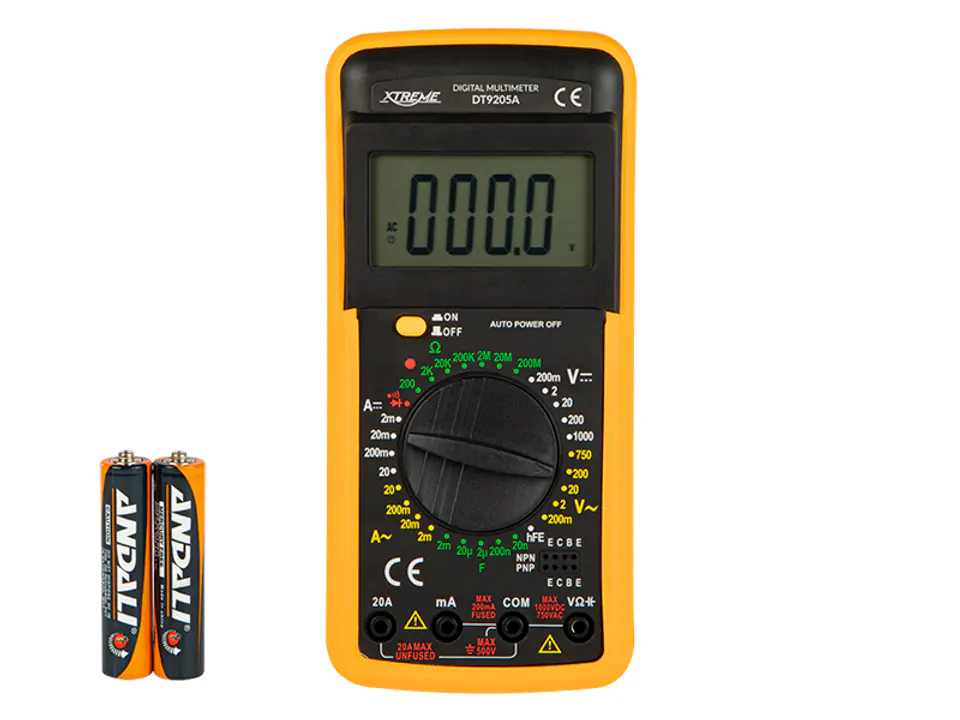

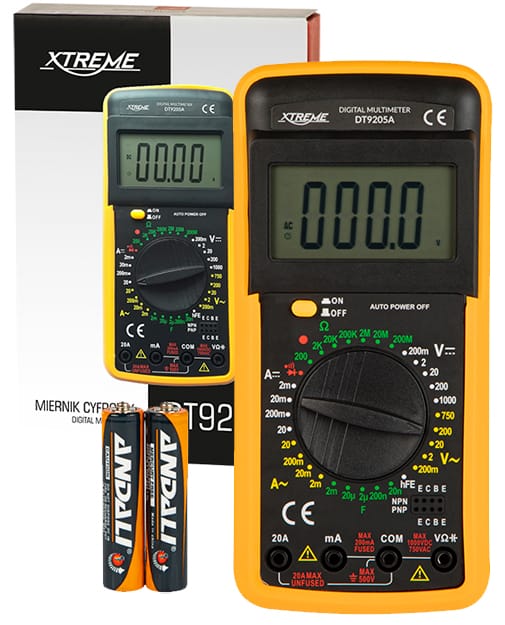

Included: meter, batteries, necessary wires
Key features:

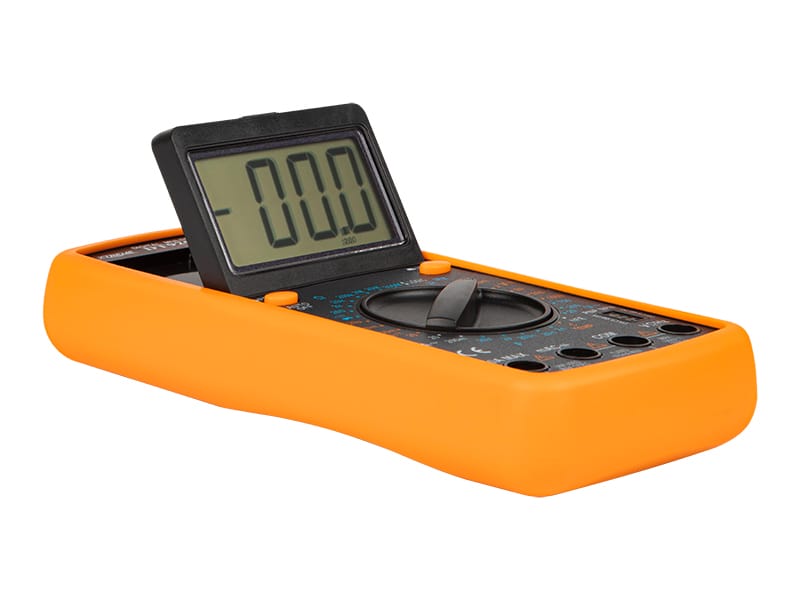

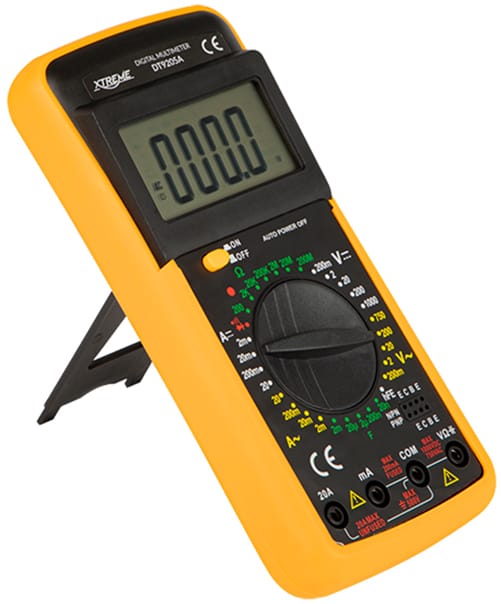

Adjustable LCD display
Rotary switch for selecting specific functions, ranges, and turning the meter on and off

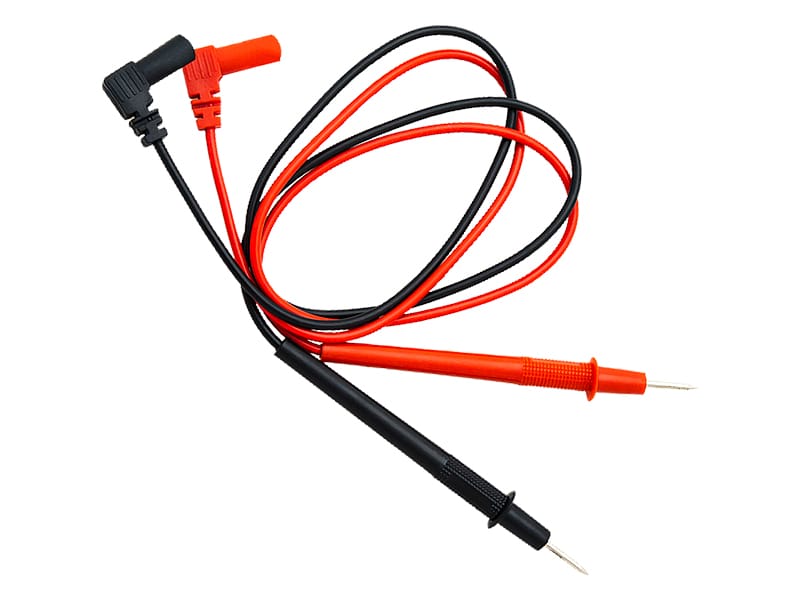

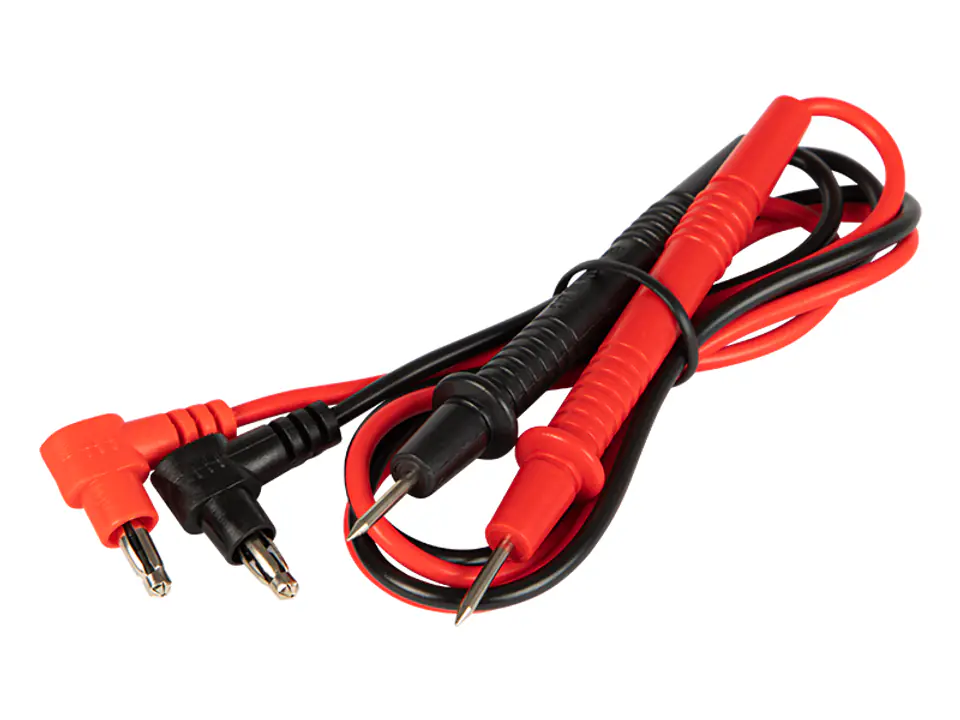

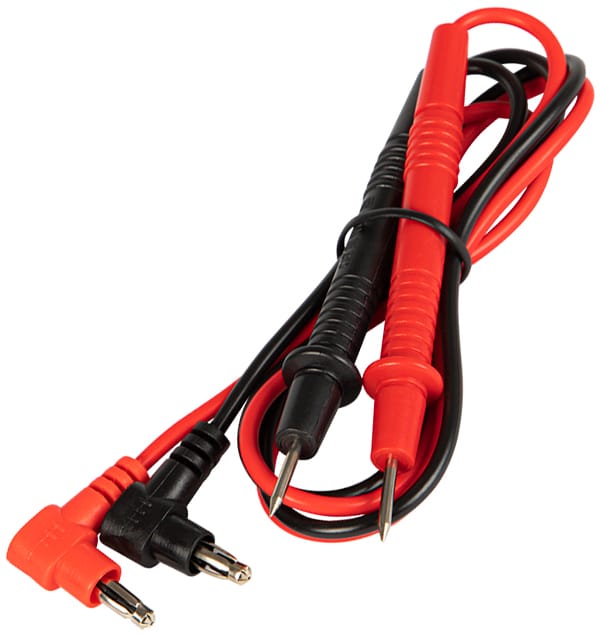

Test leads included
Power supply from 9V DC battery
Indication of a dead battery
Out-of-range indication

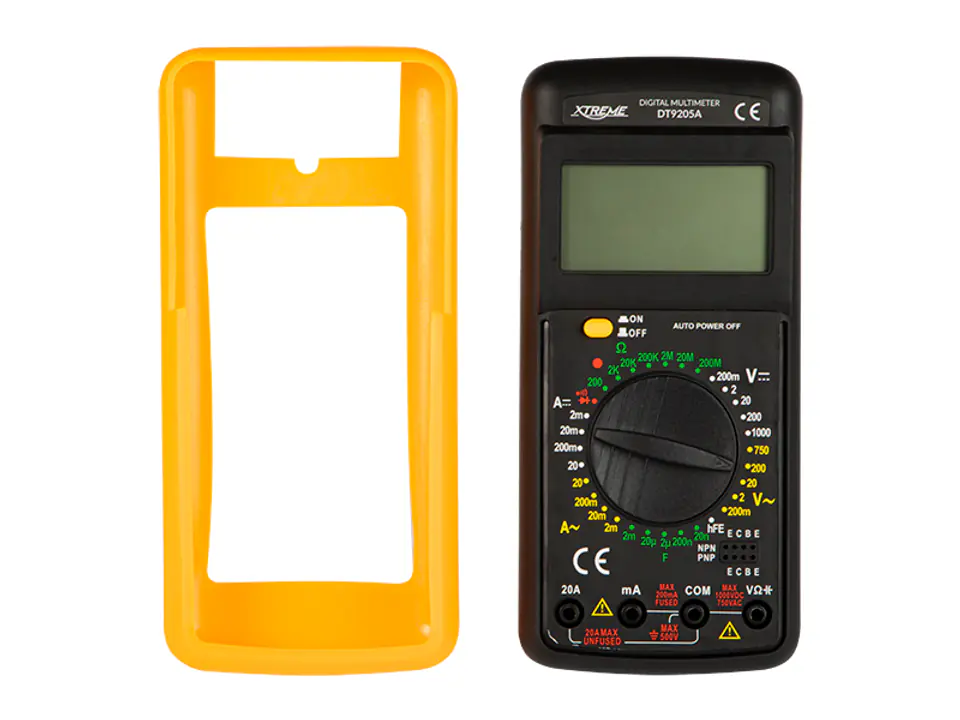

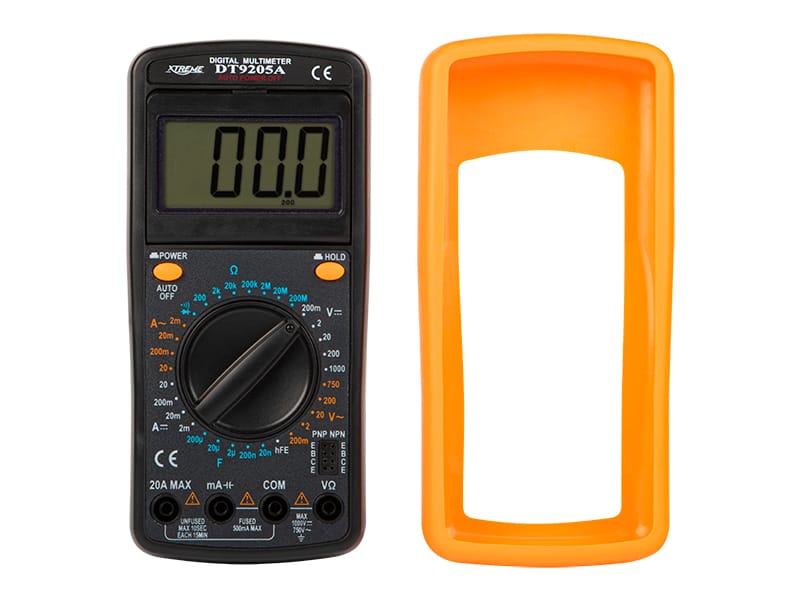

Rubber, removable cover

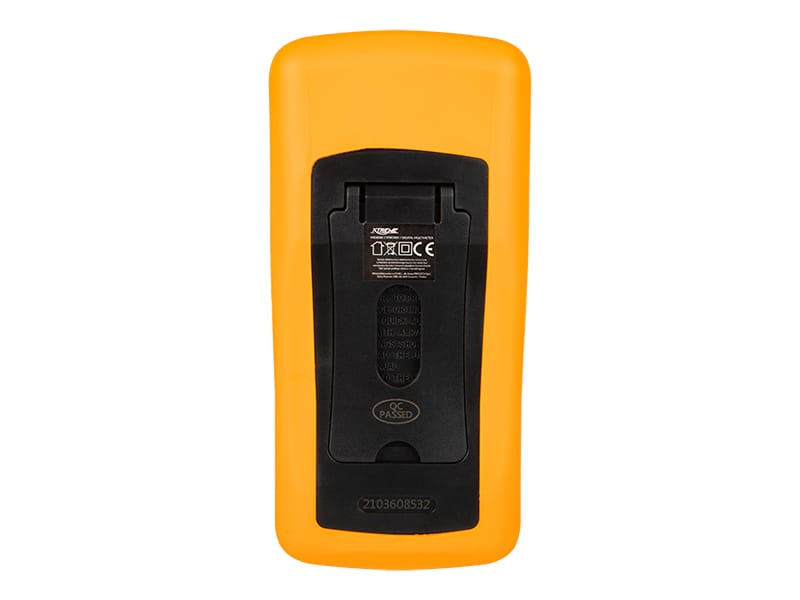

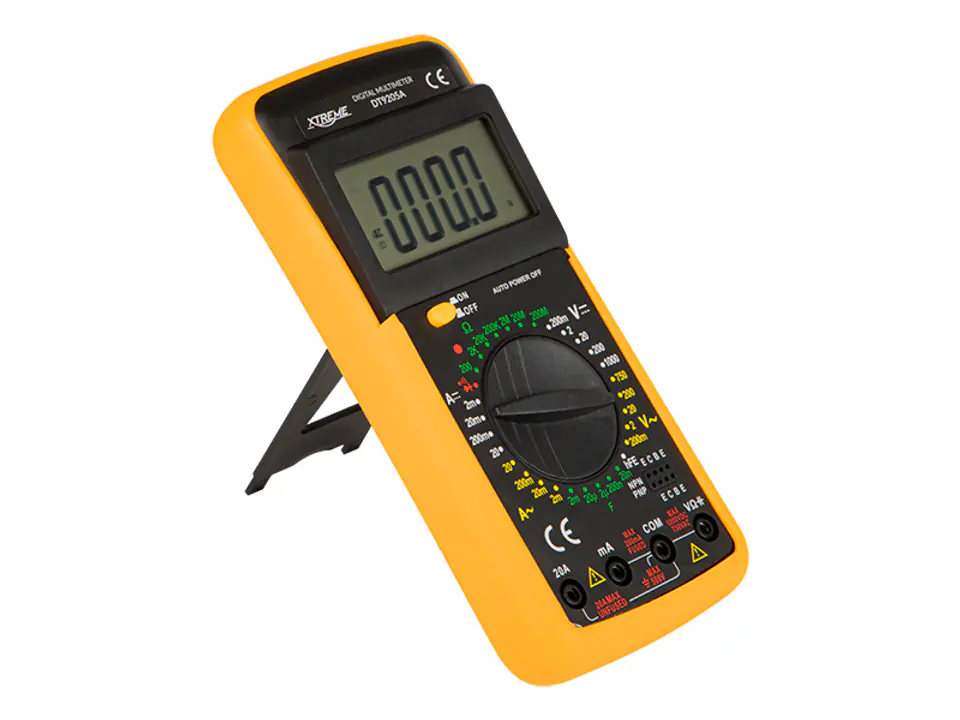

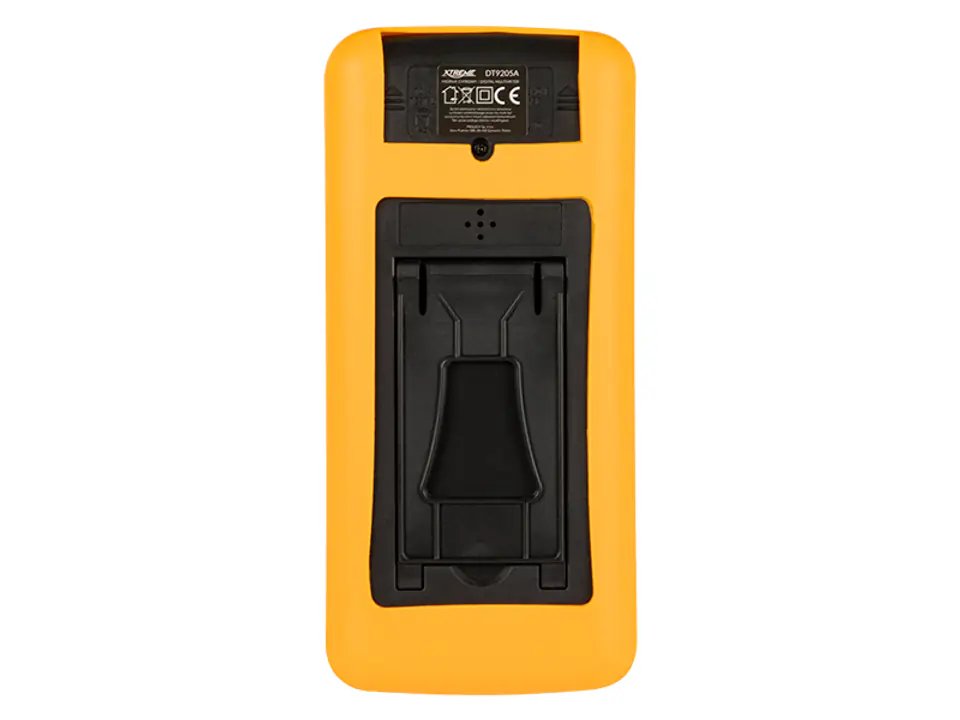

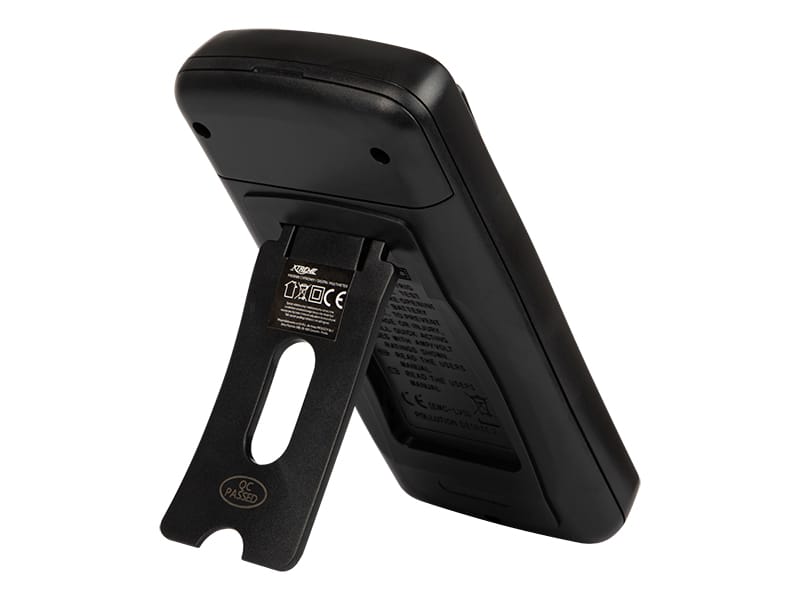

The XTREME meter is a universal tool designed for workshops or schools, but it is also perfect for home and professional tasks. It is characterized by a very clear LCD display with the possibility of adjustment and setting at an angle and a protective and removable rubber cover, and a support has been built on the back that will facilitate the reading of results during measurements. The necessary cables are also included in the set.
