DT890G XTREME Digital Meter

€14.75
Shipping from warehouse: ⁨P2⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Blow
Product code:
5900804004509

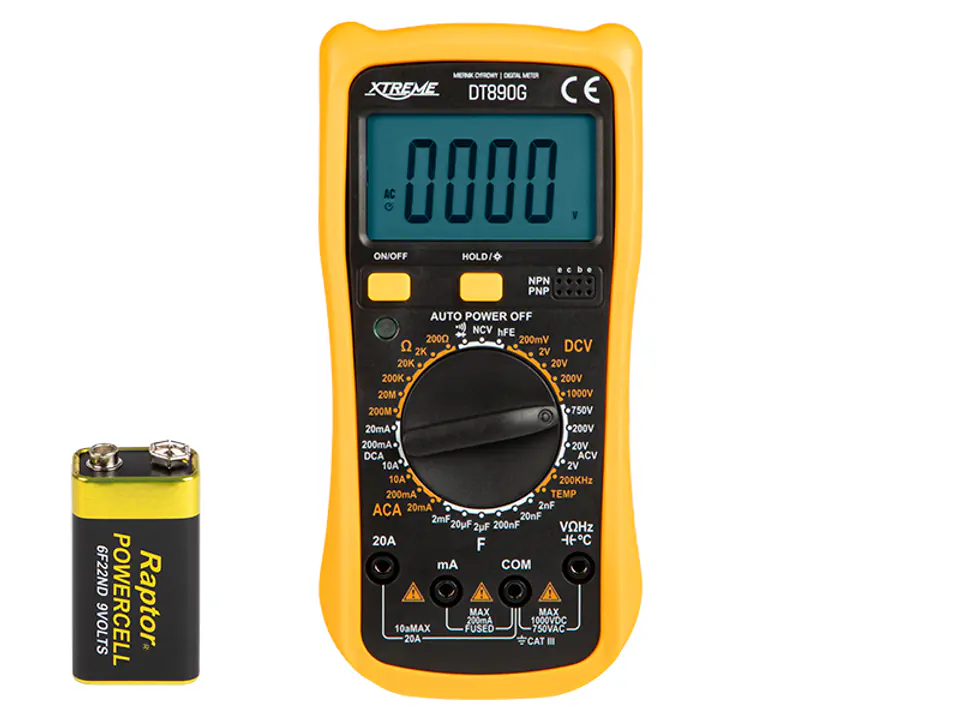

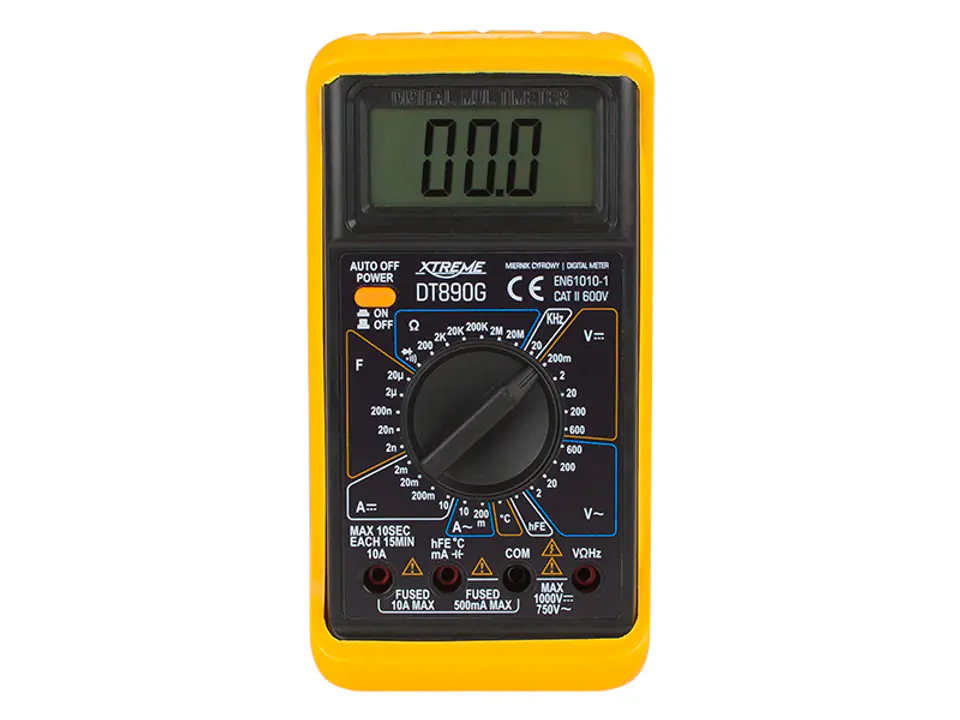

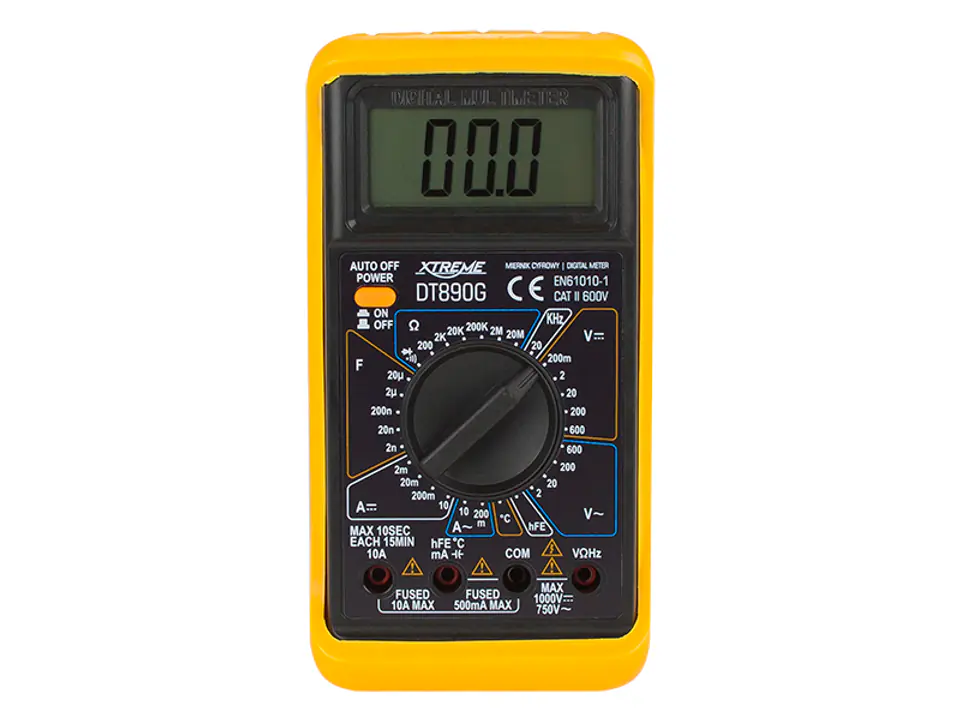

The DT890G XTREME digital meter is a product that guarantees accuracy and precision. The large and clear LCD display ensures that the results are read correctly. The materials that were used in the production of the meter are of high quality, which translates into the durability of the product and its long use.

Convenient use

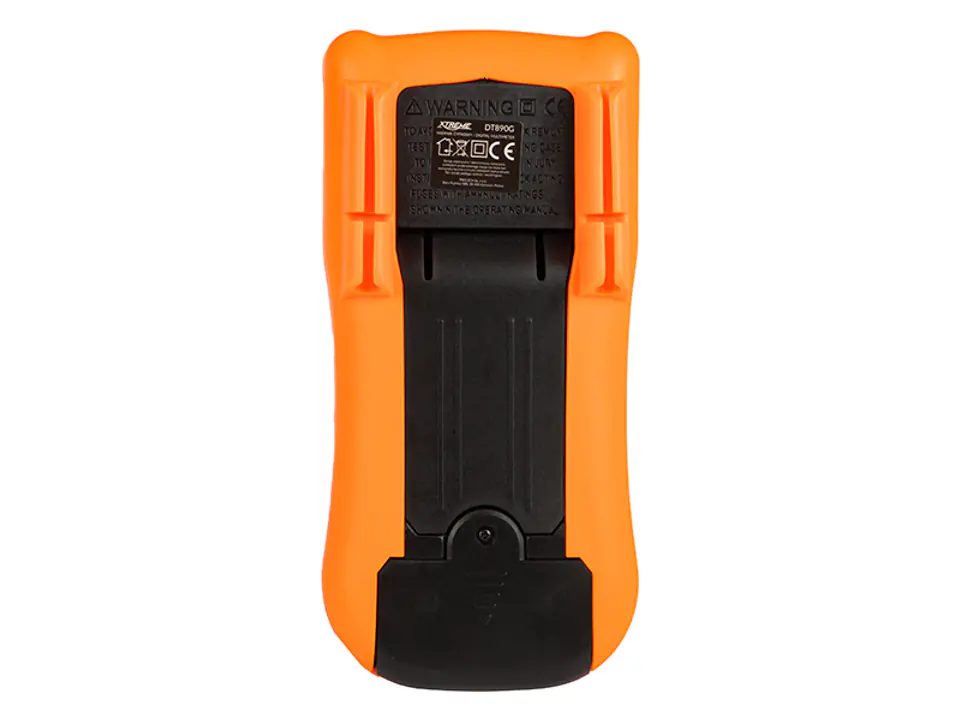

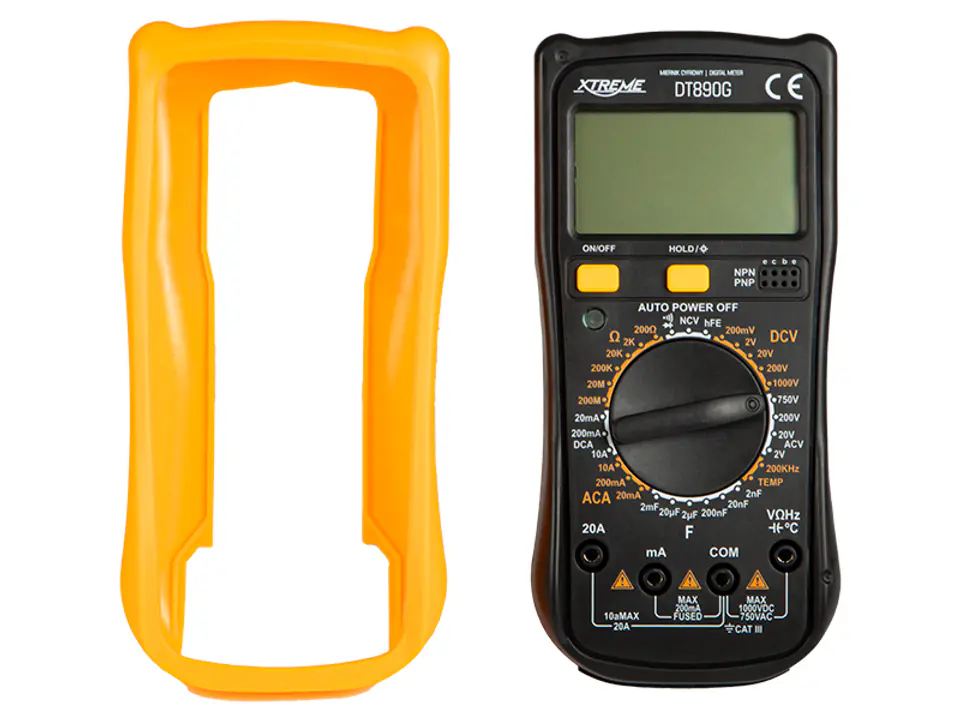

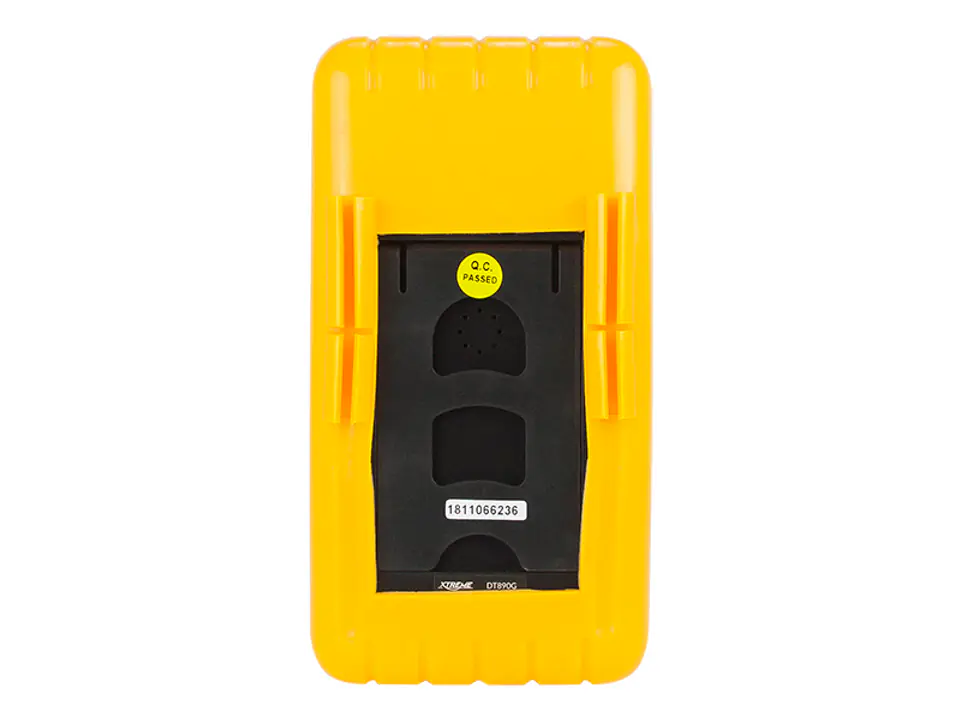

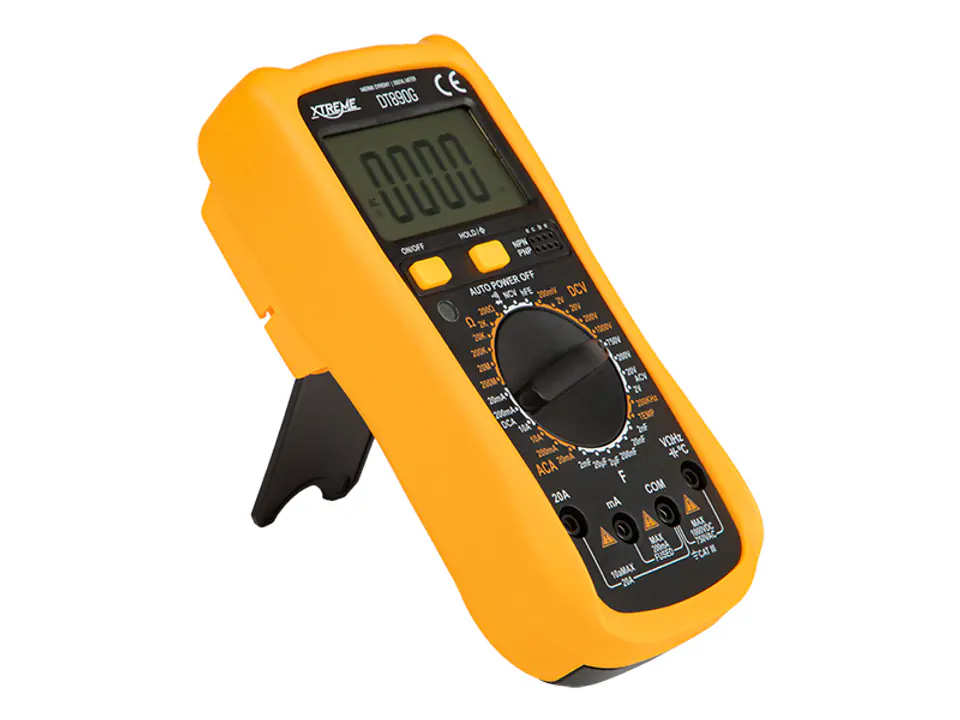

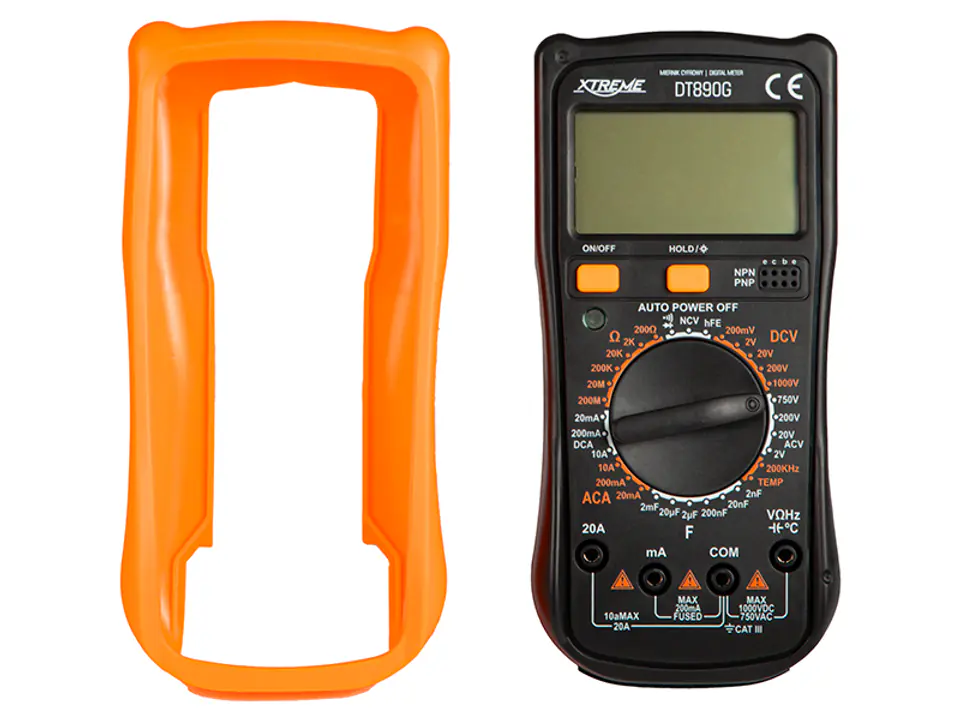

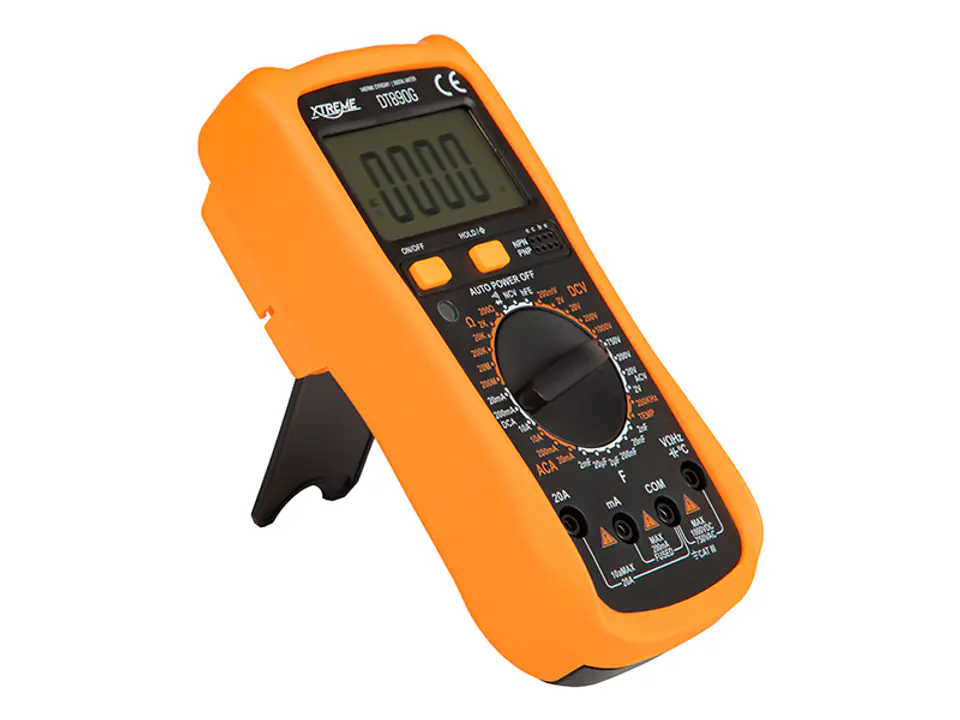

The built-in kickstand on the back of the device allows you to set the device in a way that is convenient for the user, without having to constantly hold the meter in your hand - this will definitely facilitate various types of manual work, and the reading of measurement results will provide an extremely clear and expressive LCD screen. In addition, the removable rubber cover will protect the device from mechanical damage and at the same time protect the user from shock.

Variety of applications

The meter is perfect not only for professional workshop workers, but also for amateurs of electronics. The device allows you to measure current in batteries, in household sockets or wires in hobby electronics, as well as in other electronic devices.

Included:

- Meter with easy-to-read LCD display and kickstand

- Rubber protection against mechanical damage and shock

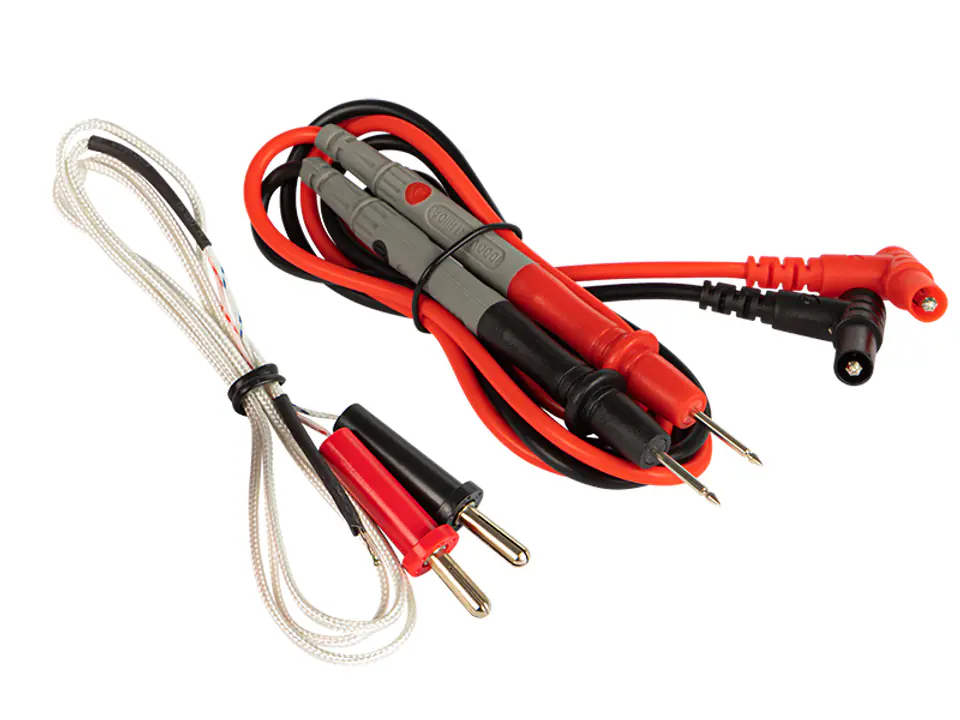

- Necessary test leads and plugs

- User Manual

Specification:

- Power supply: 9V battery

- Screen: LCD, range 1999

- Sampling rate: 2 times per second

- Measurement method: A/D converter double integral

- Out of range indication: only the number "1" on the screen

- Working temperature: 0 degree c ~ 40 degree c

- Storage temperature: -10 degrees C ~ 50 degrees C

- Dead battery indication: on-screen battery icon

- Dimensions: 170x87x35mm

- Weight with battery: 211g with battery

- DC voltage measurement: 0V – 600V in 5 ranges

- AC voltage measurement: 0V – 600V in 4 ranges

- DC measurement: 2mA – 10A in 4 ranges

- AC measurement: 2mA – 10A in 2 ranges

- Resistance measurement: 200 – 200MΩ in 6 ranges

- Capacitance measurement: YES

- Frequency measurement: YES

- Temperature measurement: YES

- hFE measurement in transit.+diode testing: YES

- Acoustic continuity tester: YES

- Basic accuracy: +/- (0.5% + 2 digits)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
