Convenient use

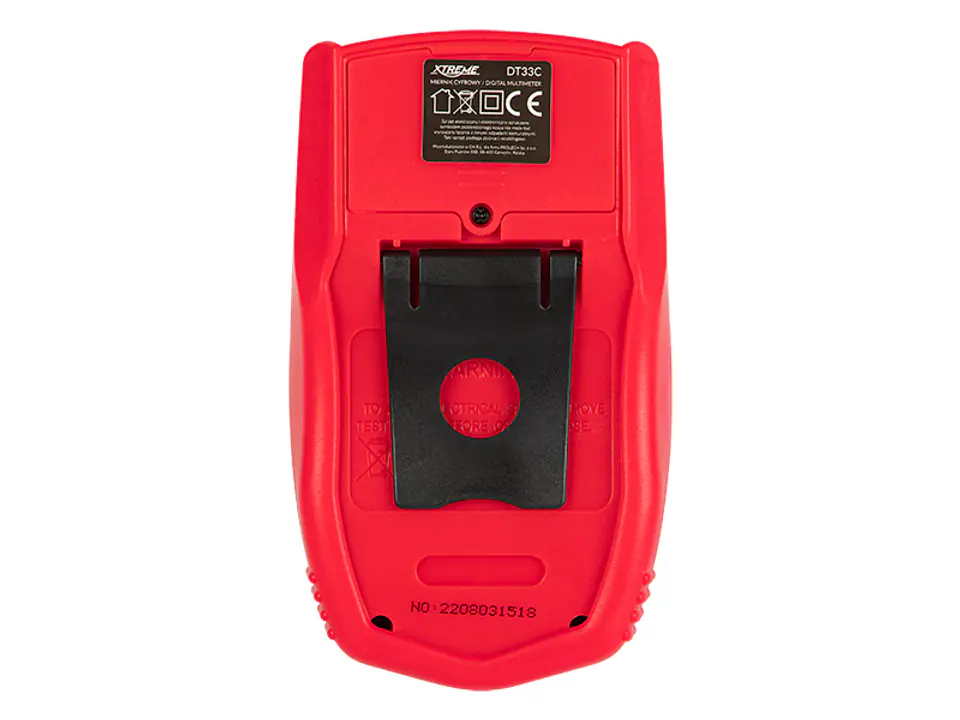

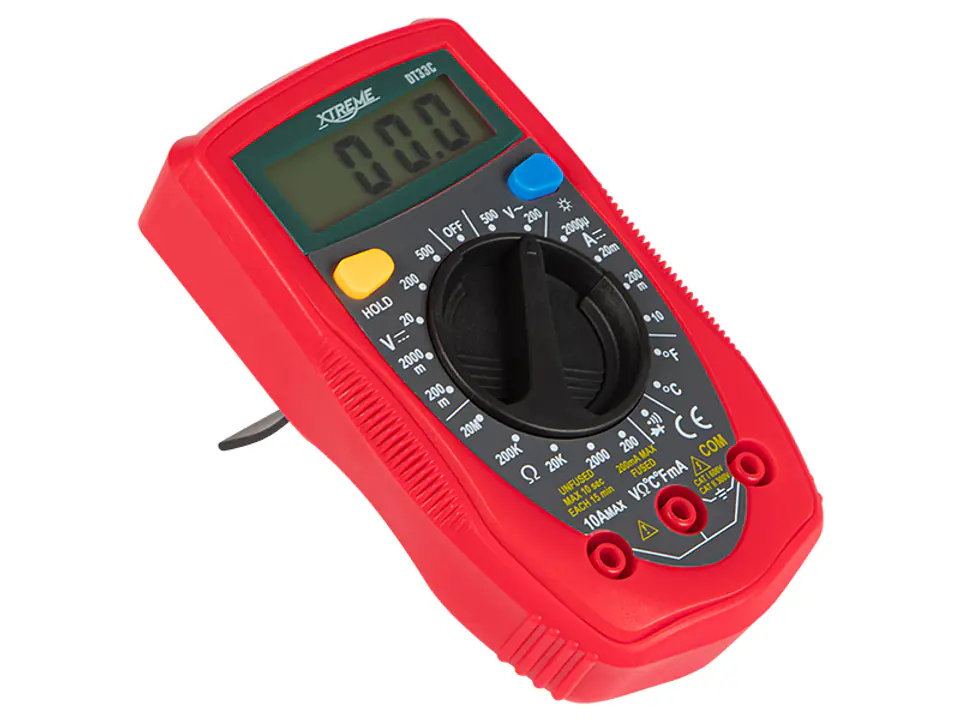

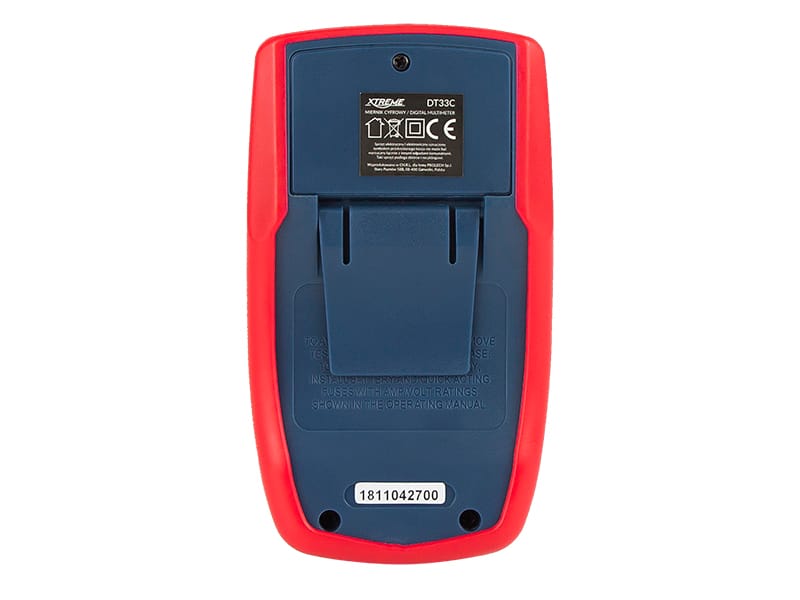

The built-in kickstand on the back of the device allows you to set the device in a way that is convenient for the user, without the need to constantly hold the meter in your hand - this will definitely facilitate various types of manual work, and the reading of measurement results will provide a clear LCD screen. In addition, a removable plastic cover will protect the device against mechanical damage.
Variety of applications
The meter is perfect not only for professional workshop workers, but also for amateurs of electronics. The device allows you to measure current in batteries, in household sockets or wires in hobby electronics, as well as in other electronic devices.
Included:

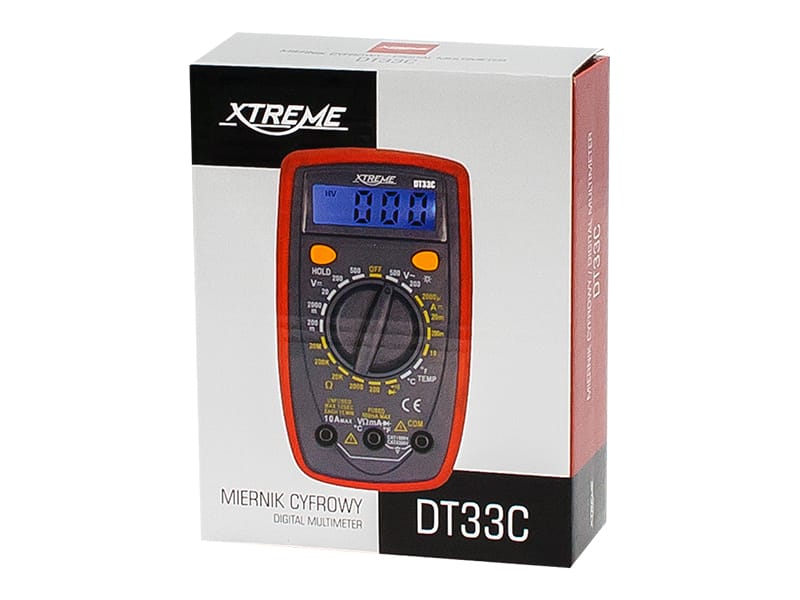

- Meter with easy-to-read LCD display and kickstand

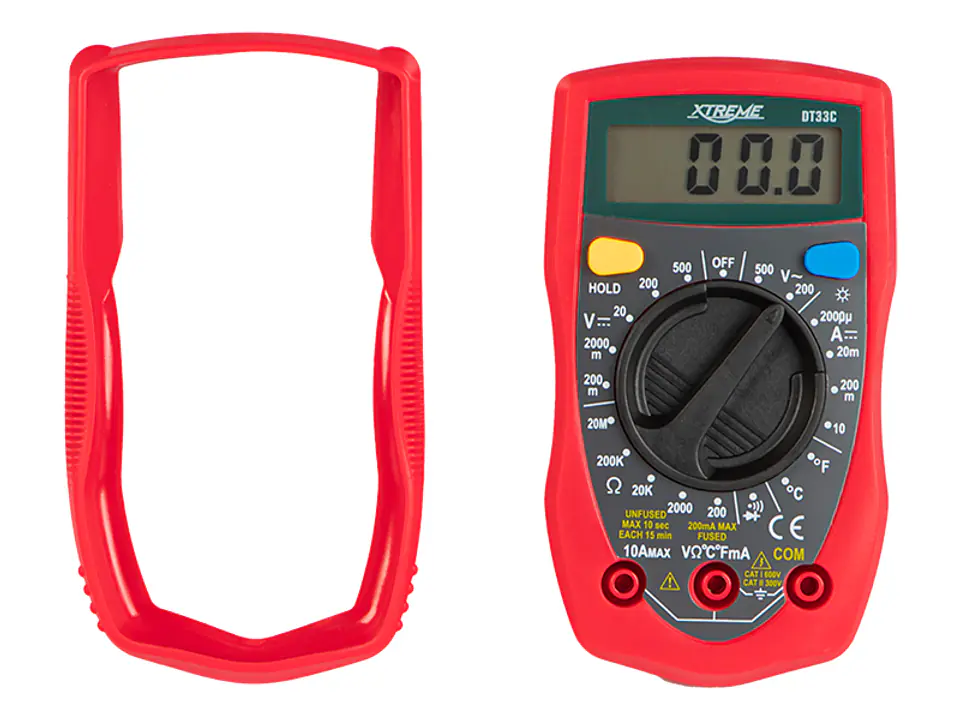

- Plastic protection against mechanical damage

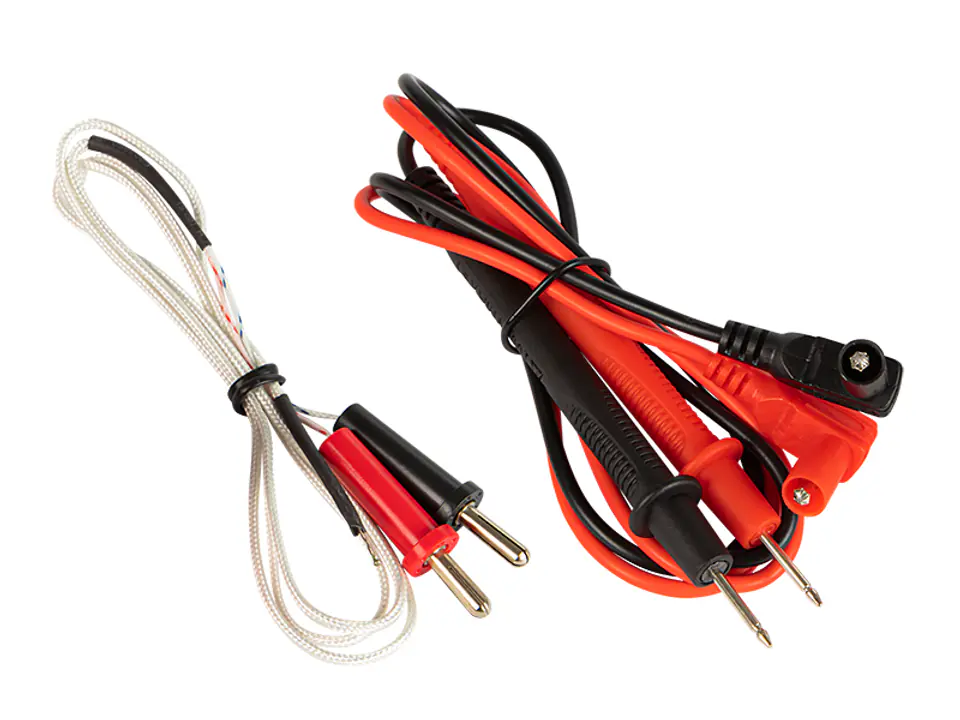

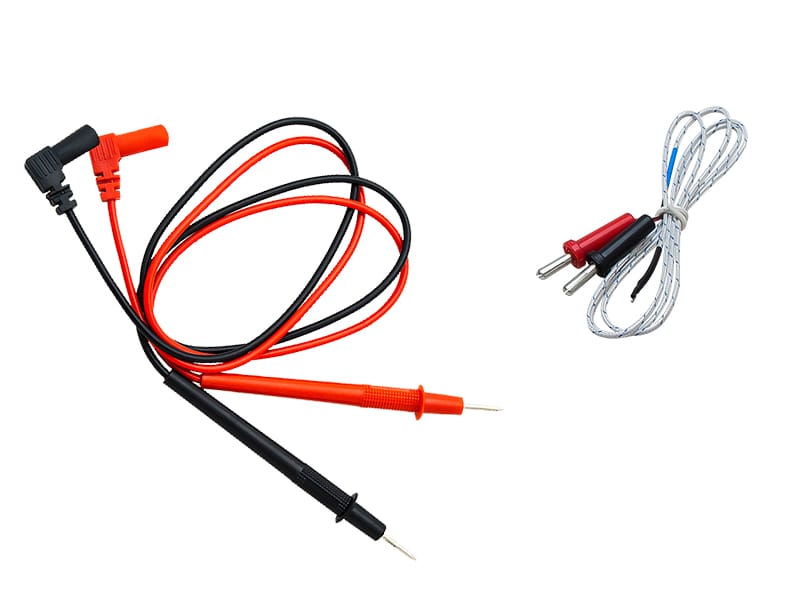

- Necessary test leads
- User Manual
Specification:

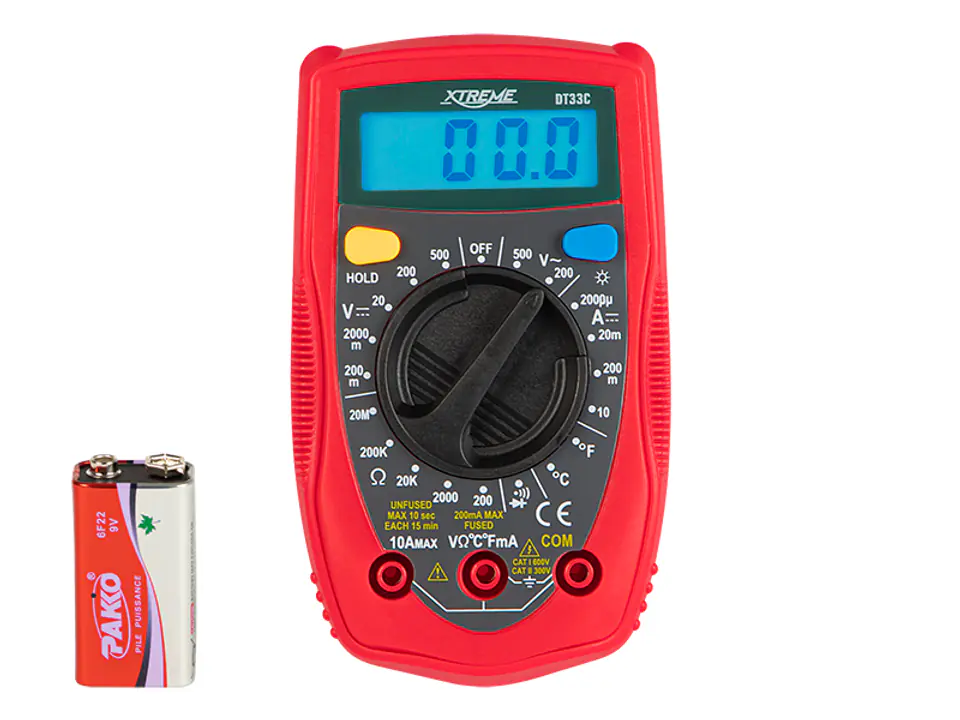

- Power supply: 9V battery
- Screen: LCD
- Sampling rate: 2 times per second
- Measurement method: A/D converter double integral
- Out of range indication: only the number "1" on the screen
- Polarity indication: for negative displayed "-"
- Working temperature: 0 degree c ~ 40 degree c
- Storage temperature: -10 degrees C ~ 50 degrees C
- Dead battery indication: on-screen battery icon
- Dimensions: 130x73x37mm
- Weight with battery: 145g
- DC voltage measurement: 200mV – 500V in 5 ranges
- AC voltage measurement: 200V – 500V in 2 ranges
- DC measurement: 200uA – 5A in 5 ranges
- Resistance measurement: 200 – 200MΩ
- Temperature measurement: YES
- Acoustic continuity tester: YES
- Basic accuracy: +/- (0.5% + 2 digits)
