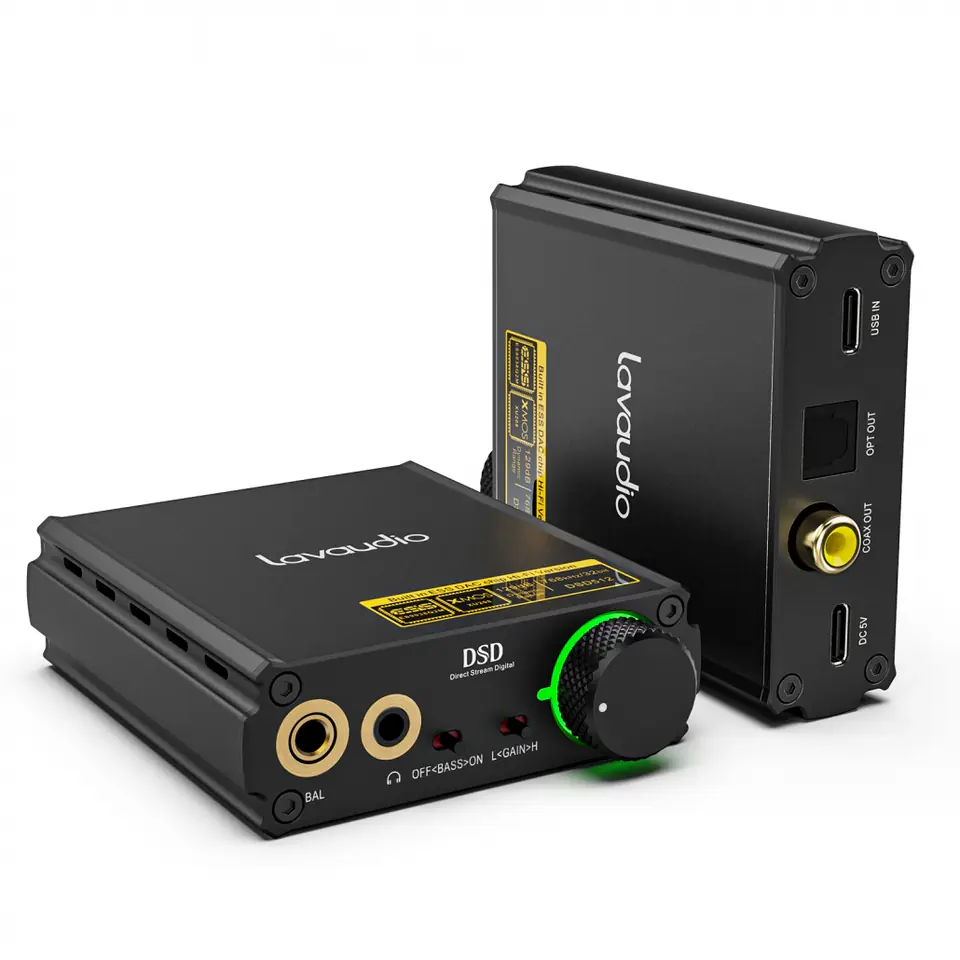

Receiver USB-C Audio Converter Lavaudio DS400
This extraordinary receiver is a real treat for fans of music and audiophilia. Just connect the device to the tower, speakers or other audio system and we can enjoy the sounds in the highest quality. The DS400 was created with music in mind, and music was a priority in the design process.

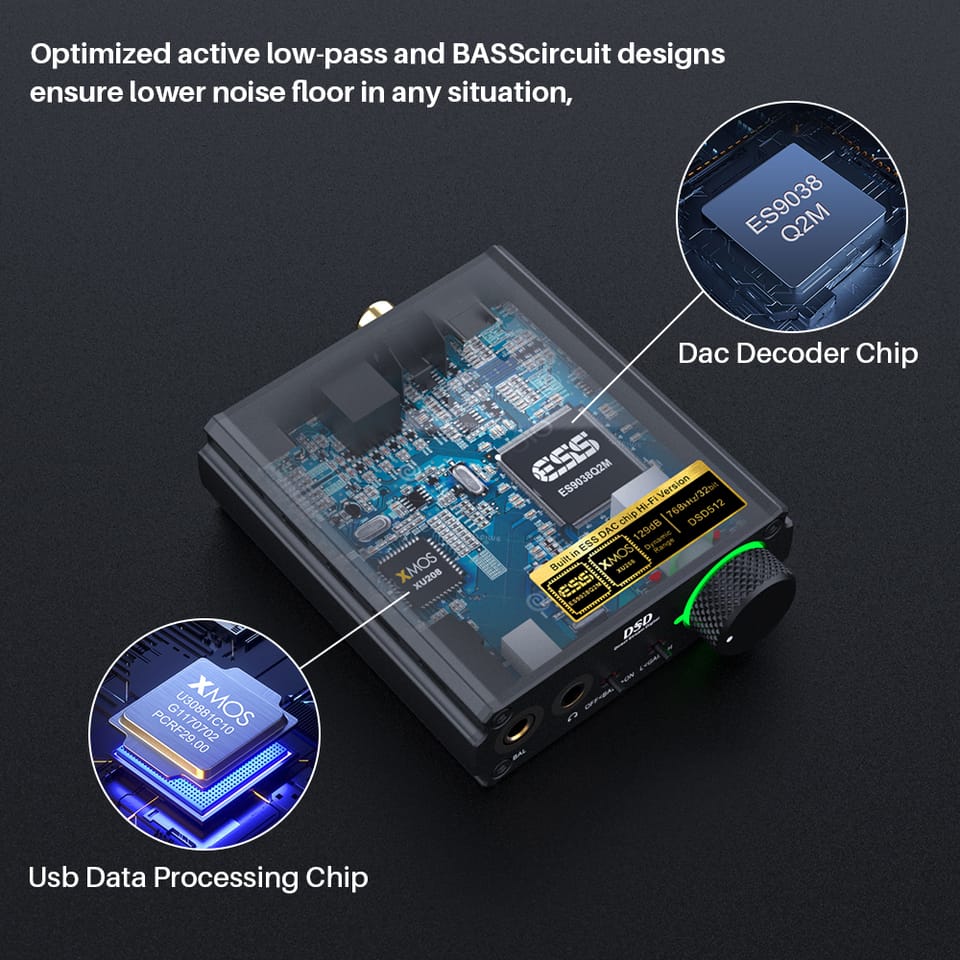

【High-performance dac & usb decoding chip】: Equipped with the powerful and proven ESS ES9038Q2M and XU208 chip, DS400 headphone amplifiers are capable of decoding up to 768kHz/32 bits and DSD64-DSD512, its memory is twice that of the U8, and its computing speed reaches a terrifying 1000 MIPS, which is twice as fast as the 500 MIPS in the U8. DS400's dual crystal oscillators ensure that any digital audio signals sent to the DAC are exactly correct, further improving sound quality.
【Easily support low or high impedance headphone】: For total output power up to 140.5mW at 32 Ω load and up to 140.5 mW at 600 Ω, DS400 desktop amplifier can easily support any low- or high-impedance headphone. The DS400 portable headphone amplifier allows you to smoothly adjust the volume in very small steps without unwanted noise or channel imbalance.

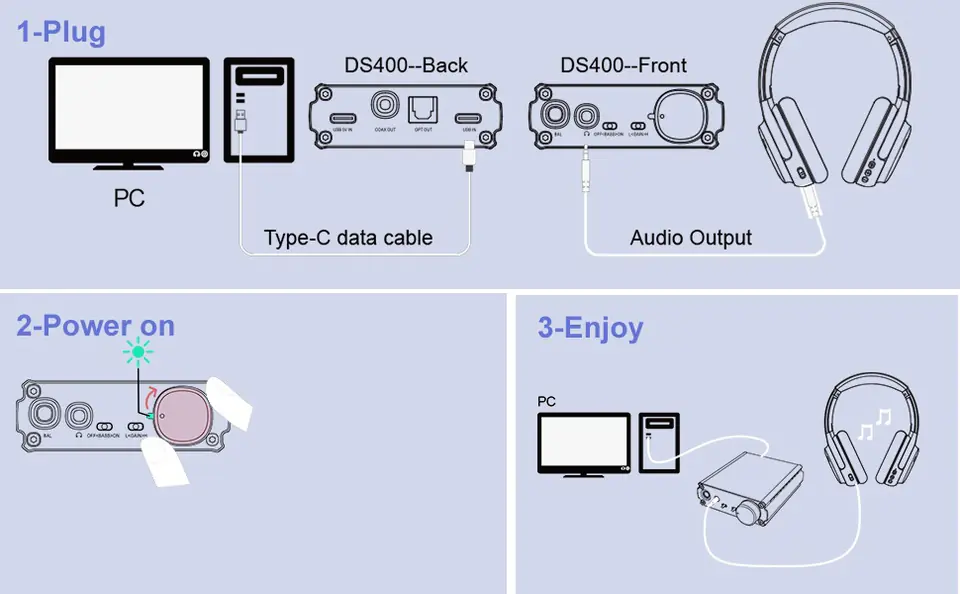

【Type-C OTG Input】: Only one line (USB OTG line) is required to complete all inputs, no additional lines are required. The DS400's ESS chip directly converts any USB audio input to digital signal output, allowing you to connect to speaker systems, amplifiers, or other external set-top boxes. Note: The input cannot be completed if the USB line does not have OTG function, such as as the original iPhone data line!

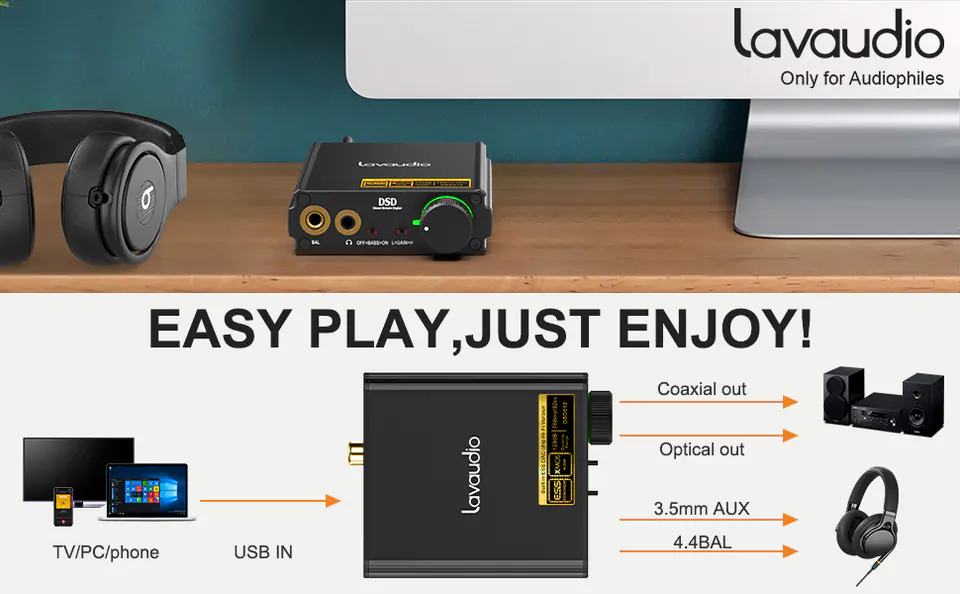

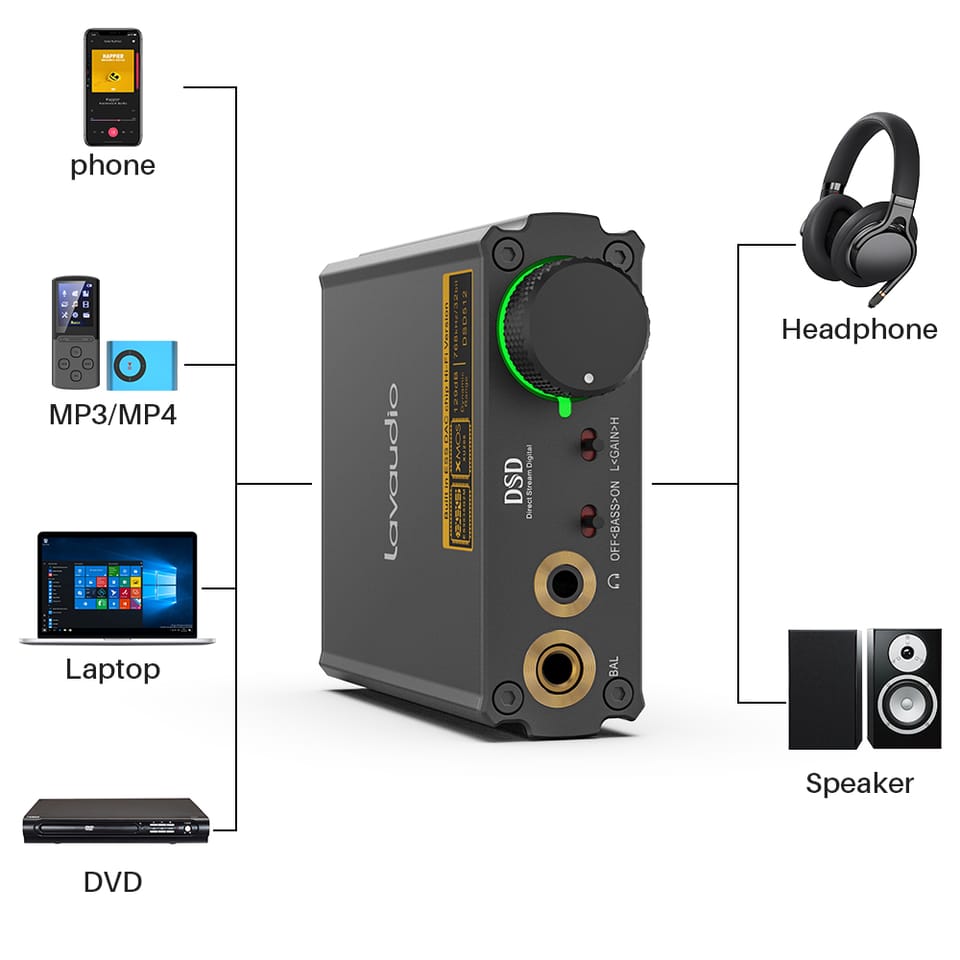

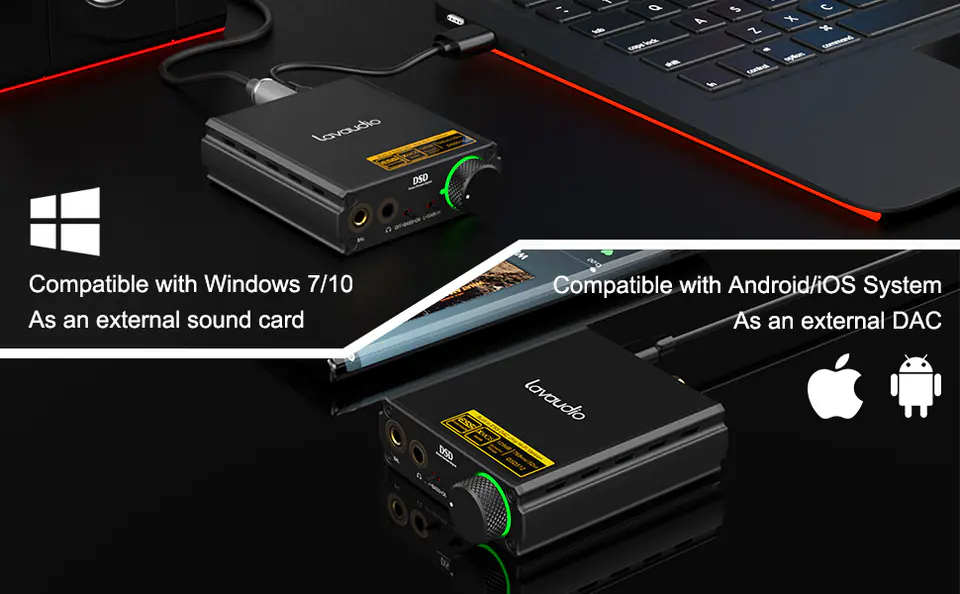

【Variety of Outputs】: Supports 3.5mm single-ended headphone outputs and balanced 4.4mm headphone output/RCA line out, with optical and coaxial inputs supporting PCM44.1-192kHz, DSD64 outputs, so that the DS400 portable headphone transducer compatible with various operating systems, such as Android/iOS/Windows7/10, you can use it to connect to your phone/computer/player.

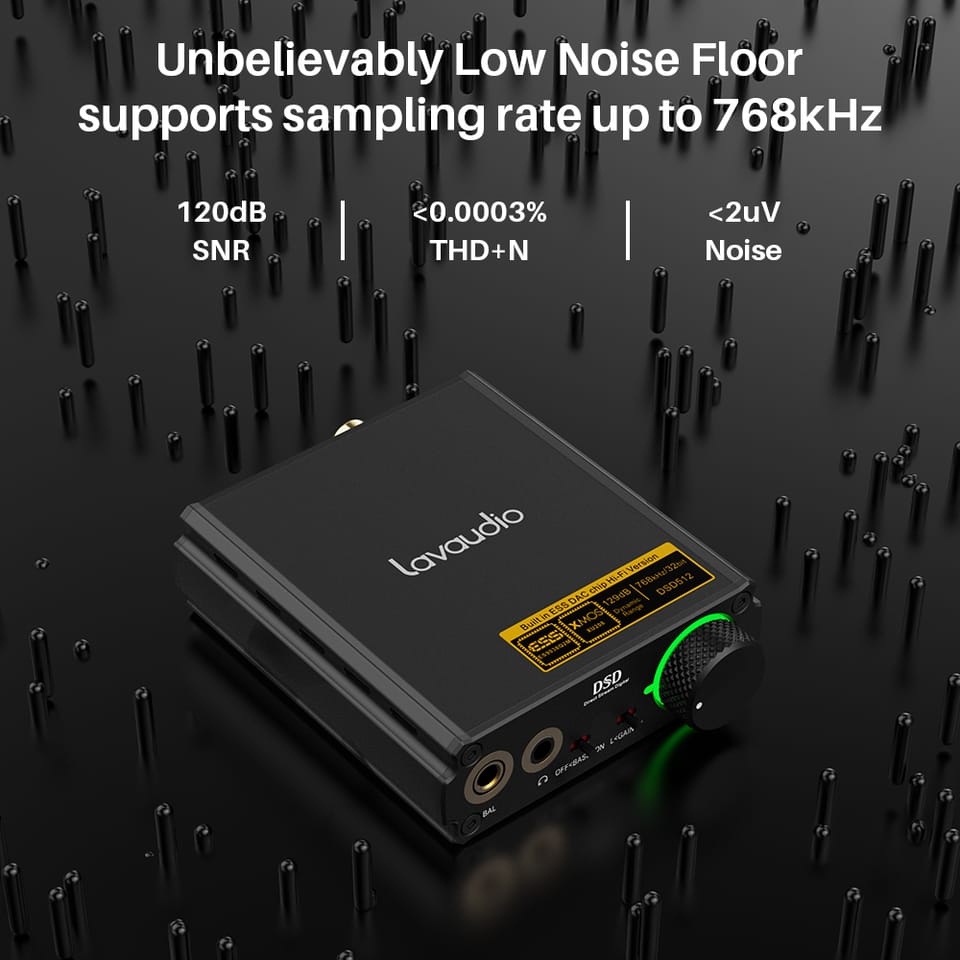

【Incredibly Low Noise】: Optimized active low-pass circuit designs and BASS ensure lower noise in any situation. Such as the power module. The DS400 features a surge protection (OVP) and a dual-filter circuit to ensure power stability, while digital and analog audio circuitry receive their own power supply to greatly reduce crosstalk. – This is true high-fidelity sound.
• Product model: HI-FI DAC USB Headphone Amplifier
• Solution: XMOS XUCS43198+ ES9038Q2M+ DAC amplifier chip
OPA1612*2 + OPA1622*2 headphone amplifier chip
• USB decoding: support PCM 768 kHz/32 bit, DSD512 (native), DSD128
(Dop), compatible with PC, IOS and Android
• Audio interface: Input: Type C;
Output: 3.5mm & 4.4mm & Coaxial & Optical
•Adjustable bass and output boost
• Audio output interface: 3.5 mm, RCA (2.85 Vrms/0 dB),
•Hi-Fi function: THD+N:<0.0003%, SNR>116dB,DNR>115dB
• Headphone port output: 2.3 Vrms at low gain 4.6 Vrms at high gain
3.5mm port: 16Ω/200mW;32Ω/150mW
4.4mm port: 32 Ω/300 mW
•Brilliant metal air housing design
