Specifications:
Working height: 305 mm
stroke length: 80 mm
socket: Euronorm ø 43 mm
Dimensions: 203 x 570 x 307 mm
base: 203 x 307 mm
For extremely accurate drilling in flat, round and slatted elements. Stable, 40 mm, round column with 340 mm toothed bar. Drilling without the effect of "twisting".
integrated return spring,
retaining button for serial drilling,
adjustable scaling ring with millimeter graduation for accurate setting of the set drilling depth,
with cable holder,
Solid, cast iron base.
**

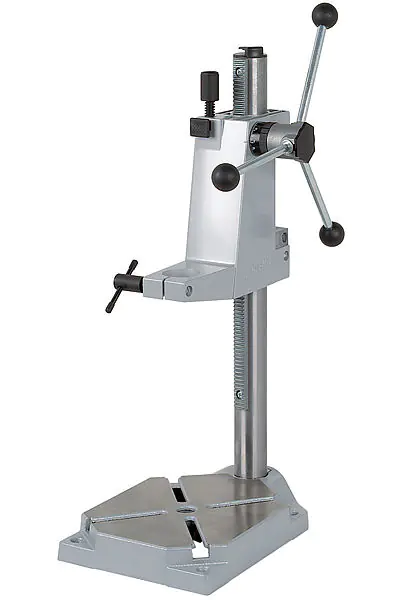

DRILLING STAND ''EXCLUSIVE'' FOR 43MM DRILLING MACHINES
€122.25
Shipping from warehouse: A3
Estimated shipping: Tue, Nov 19 - Fri, Nov 22
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- UN
- Product code:
- 5027000 / 4006885502703
Share this product:
Specification
| Base plate depth: | 30.7 cm |
|---|---|
| Base plate width: | 20.3 cm |
| Column length: | 34 cm |
| Height: | 570 mm |
| Material: | Die cast aluminium |
| Product colour: | Aluminium |
| Product type: | Drill stand |
| Spindle collar diameter: | 4.3 cm |
| Working height: | 30.5 cm |
| Working stroke: | 8 cm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
