Manufacturer number: MSW 10060438

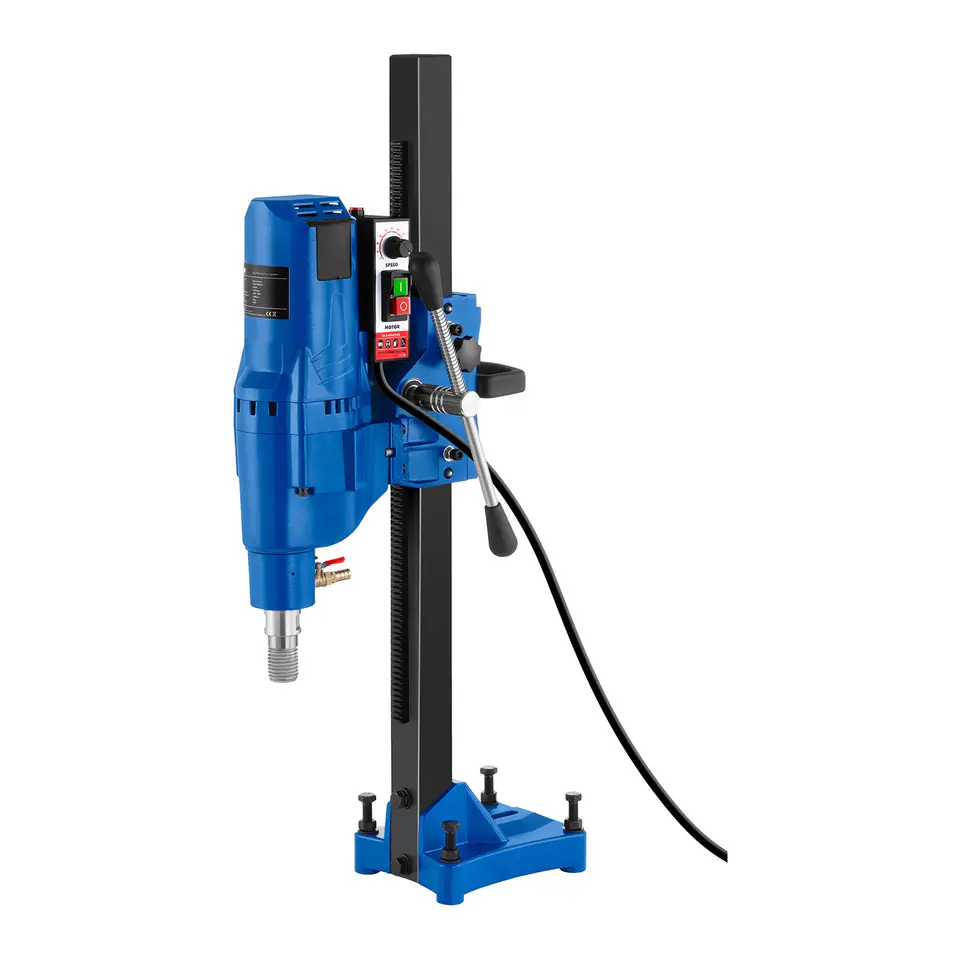

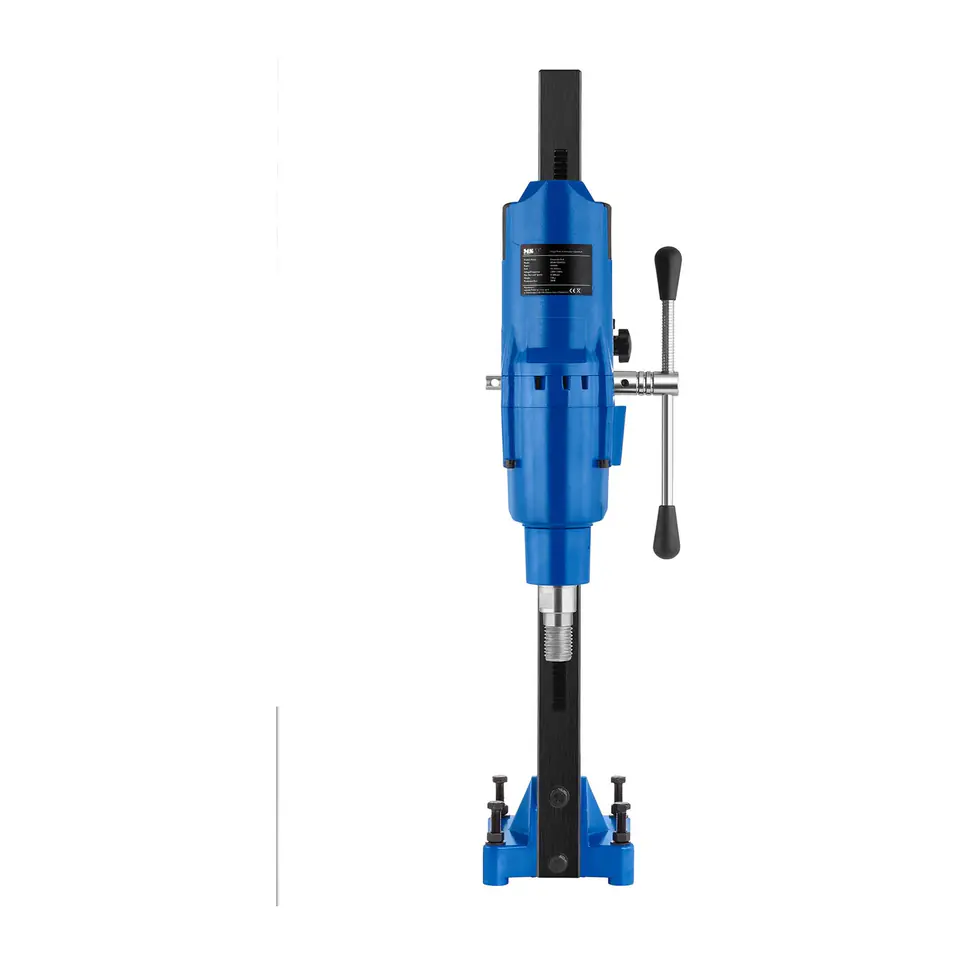

The professional drilling rig MSW-DDM255 , thanks to its solid construction, will work well in the processing of hard materials such as brick, concrete or stone. The 4435 W motor guarantees efficient operation and drilling speeds of up to 580 rpm. The comfortable T-type handle allows you to adjust the drilling depth, and the guide ensures smooth up and down movement in the range of 0 - 520 mm.

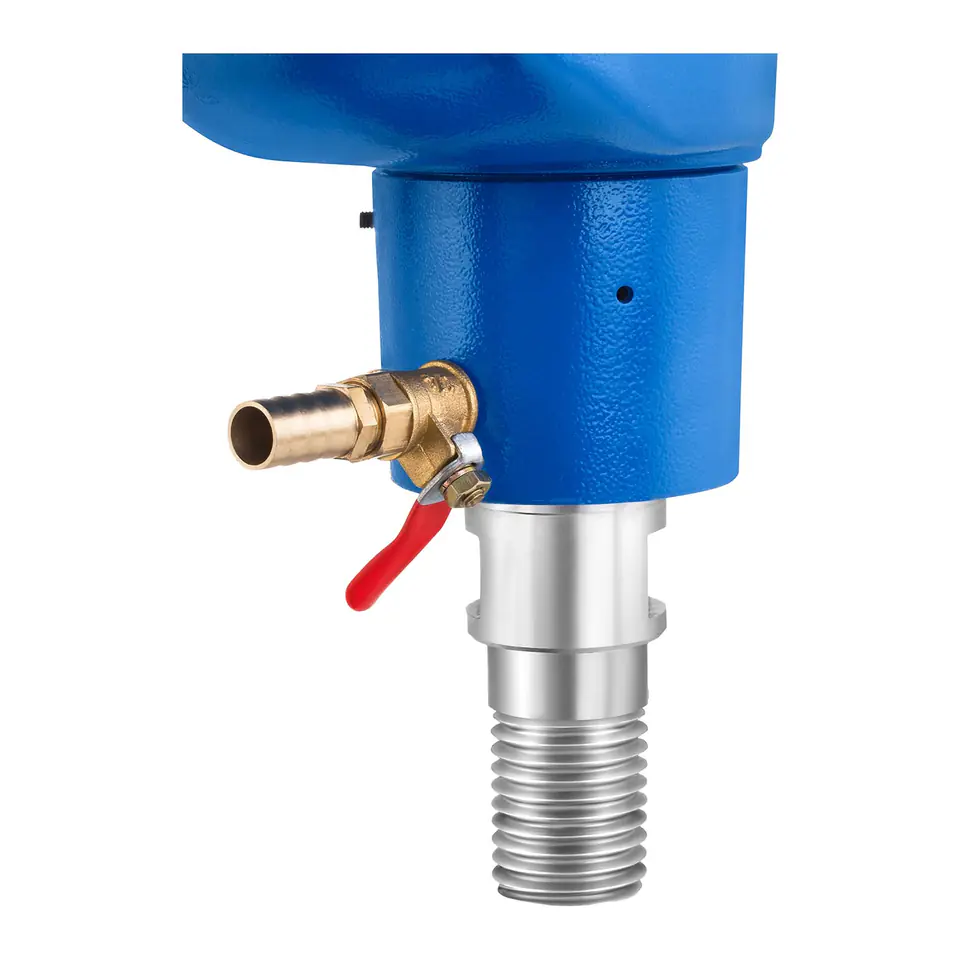

To increase work efficiency, the drilling rigs are equipped with a special connector and hose that can be connected to an external device responsible for wet work. This will extend the life of the crowns and reduce the risk of damage to the processed material. The device fits diamond crowns with a diameter of up to 255 mm.

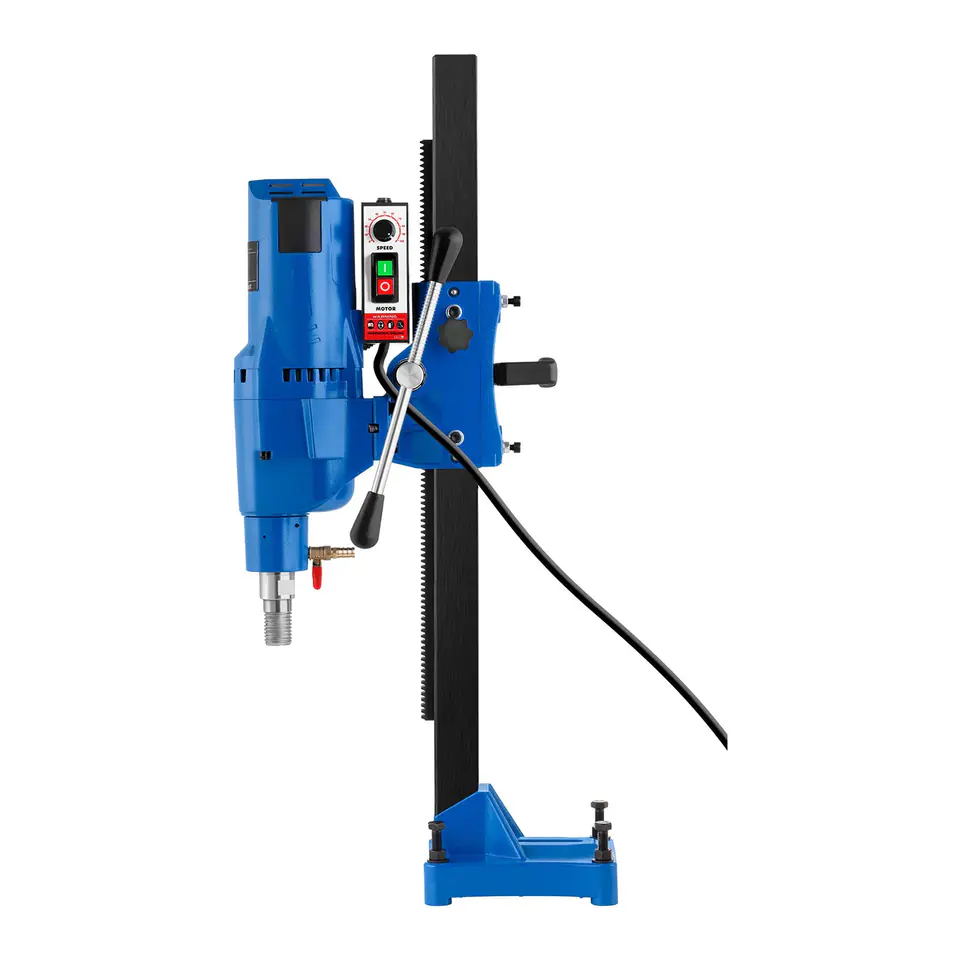

Convenient operation of the device is due to m.in clear control panel. There are large buttons responsible for starting and turning off the equipment and a stepless knob for determining the drilling speed. A special indicator light informs you that the machine is ready for operation.

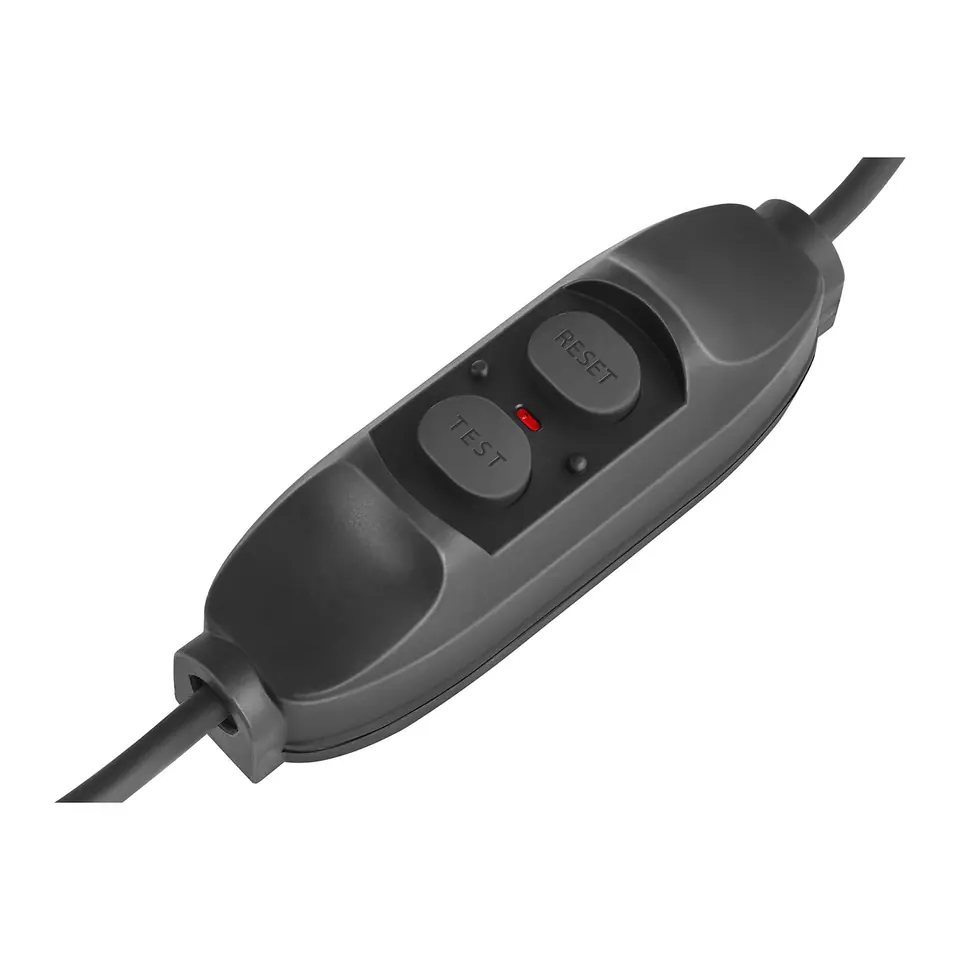

The safety of work on the drilling rig is ensured by the PRCD module (residual current circuit breaker) that prevents the machine from turning on in the event of a short circuit. It also ensures that the device does not start uncontrolled when connected to a power source.
Product features:
- - Reliability - solid construction allows wet and dry work,
- - Multitasking - the ability to drill in various hard materials such as brick, concrete, reinforced concrete or stone,
- - Versatility - compatibility with diamond drills with a diameter of up to 255 mm,
- - Security - built-in PRCD module.
- - Model - MSW-DDM255
- - Catalogue number - 10060438
- - Housing material - Aluminum, steel, plastic
- - Power - 4350 W
- - Voltage/frequency - 230V/50Hz
- - Sound pressure - 70 dB(A)
- - Sound power - 85 dB(A)
- -Max. drilling diameter - 255 mm
- - Drill cap diameter - 1 1/4"
- - Water hose connection diameter - 1/2"
- - Water hose length - 3.1 m
- -Max. rotational speed (no load) - 580 rotations/min
- - Slide range - 0-520 mm
- - Dry and wet drilling - Yes
- - PRCD module - Yes
- - Power cord length - 3.2 m
- - Dimensions (LxWxH) - 20,5 x 30 x 101,5 cm
- - Weight - 21.1 kg
- - Shipping dimensions (LxWxH) - 93 x 36 x 23 cm
- - Shipping weight - 23,8 kg

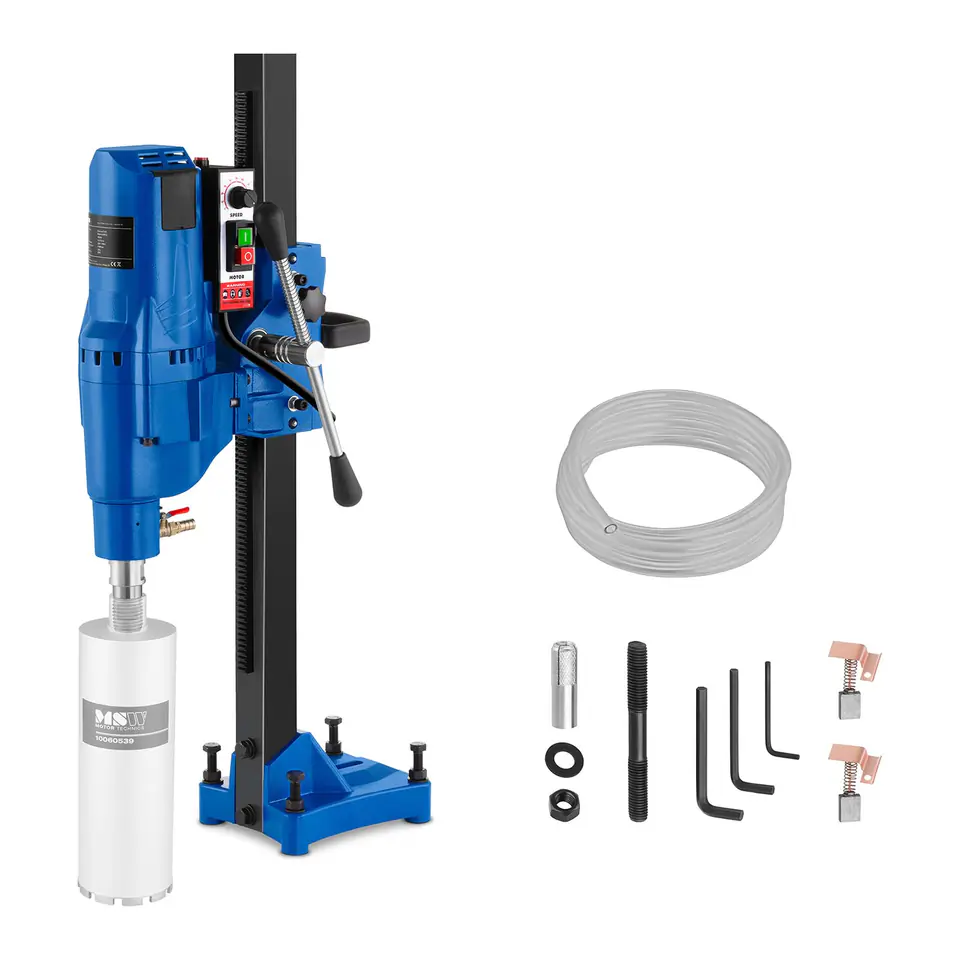

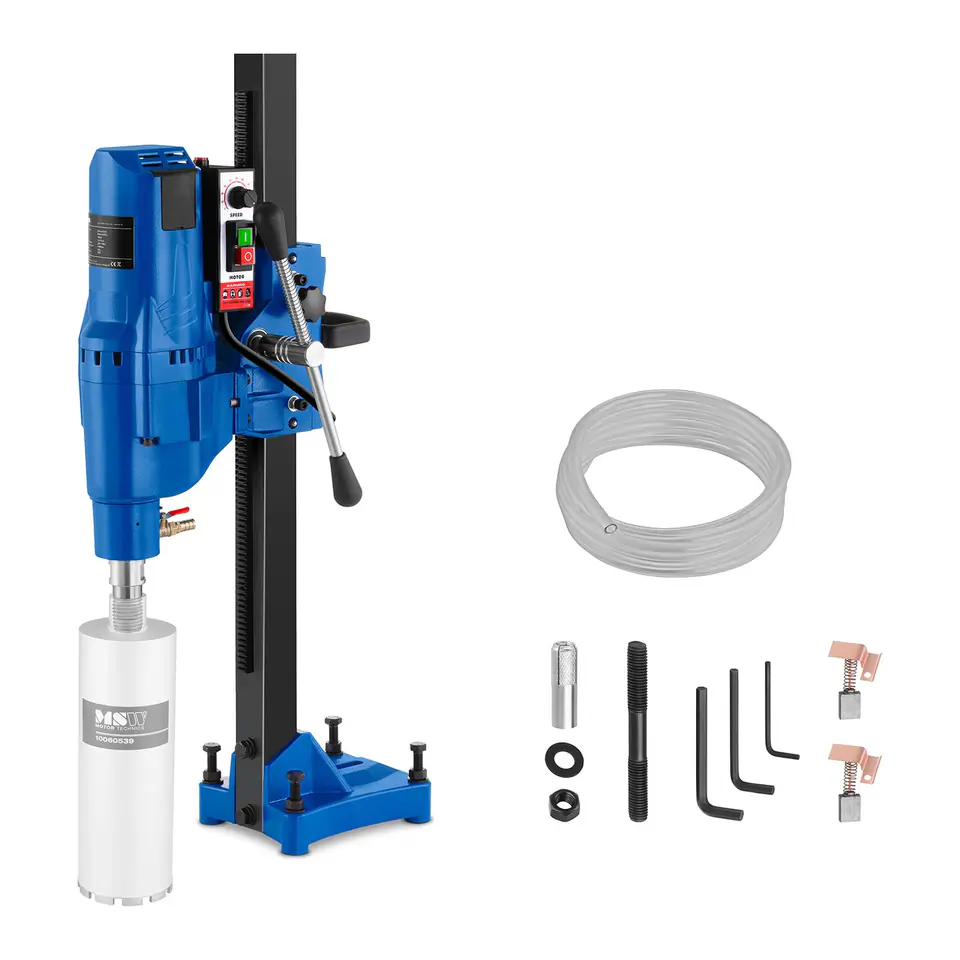

- - Concrete drill

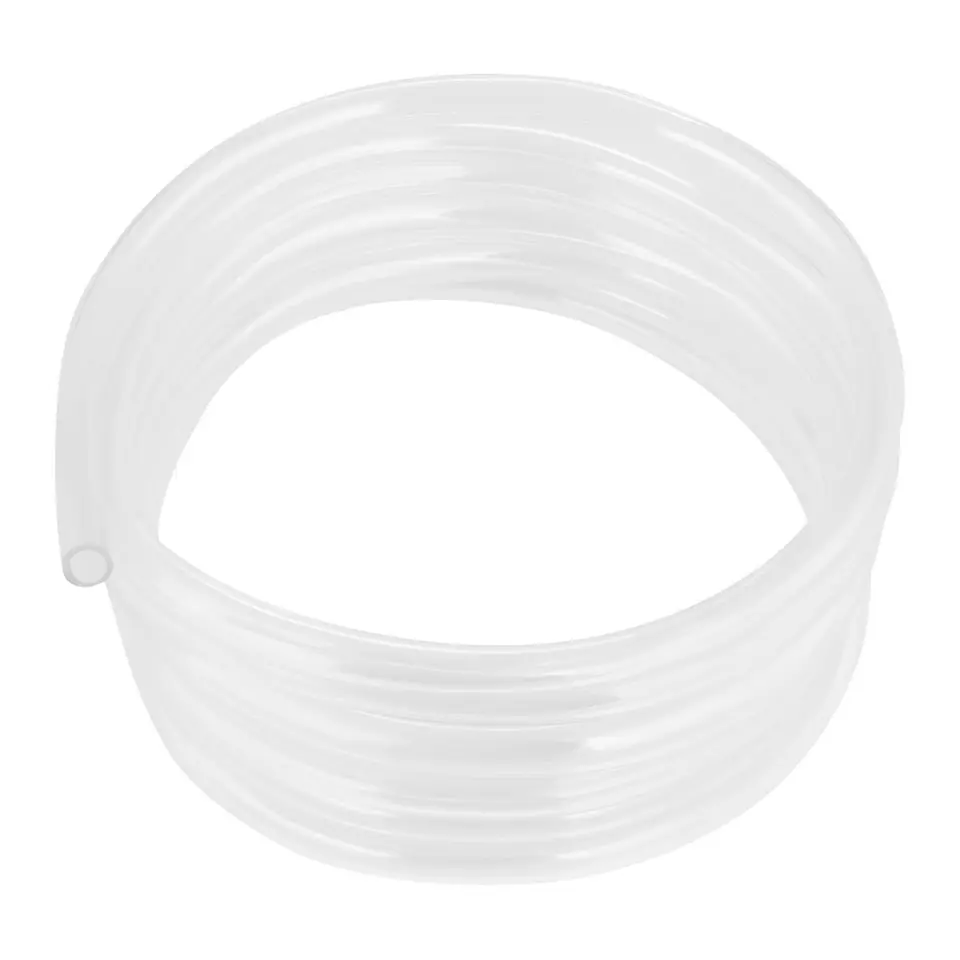

- - Water hose 3.1 m
- - Rotatable handle

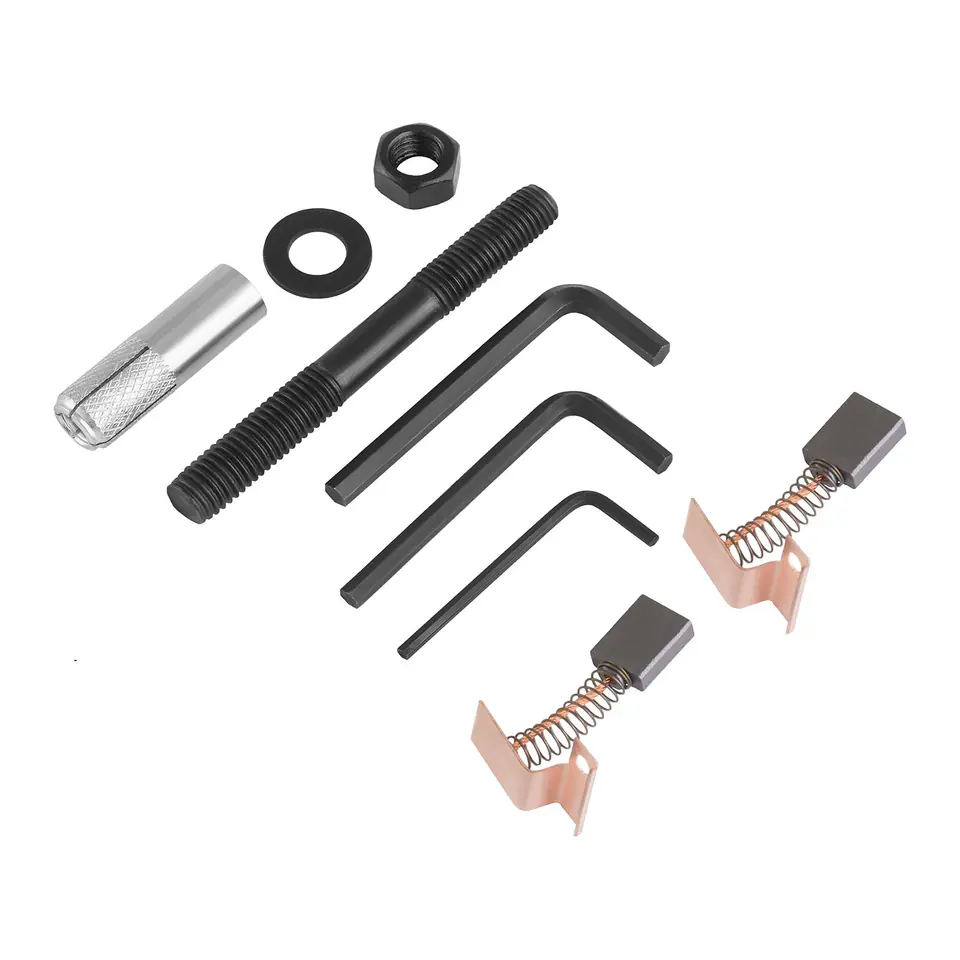

- - Allen keys – 3 pcs.
- - Rear guide handle
- - Anchor bolt
- - Carbon brushes – 2 pcs.
- - Power cord 3.2 m with safety module PRCD
- - Manual EN
