| Aluminium < 8% krzemu: | 40 |
|---|---|
| Cast iron gg/gts: | 20 |
| Copper alloys: | 60 |
| For ø detail: | > 250 mm |
| Ggg cast iron: | 16 |

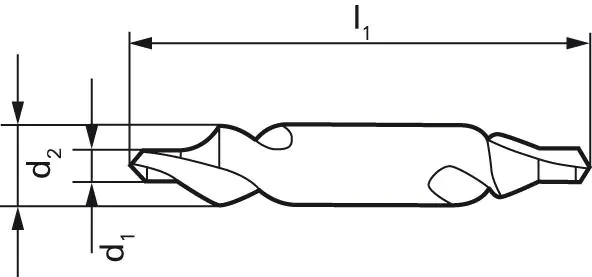

| Grip ø d2 h8: | 25.00 mm |
| Inox austenite.: | 8 |
| Inox duplex: | 6 |
| Inox ferrite./martenz.: | 10 |
| Ø drilling machine d1 k 12: | 10.00 mm |
| Steel < 1000 n/mm2: | 20 |
| Steel < 1400 n/mm2: | 16 |
| Steel < 700 n/mm2: | 25 |
| Steel < 700 n/mm2 f: | 0.12 mm/rev |
| Titanium > 850 n/mm2: | 5 |
| Total length l1: | 100.0 mm |

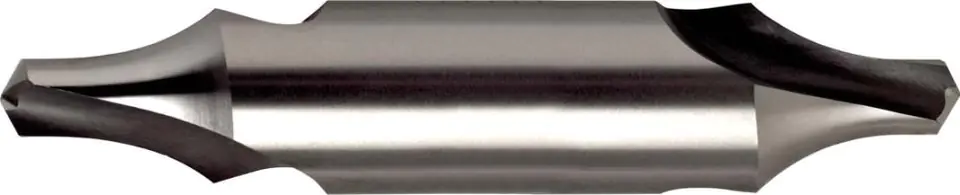

HSS drilling machine, right-hand, uncoated, Gühring
Design: with radius (less risk of breakage).
Diameter tolerance: Ø 1,0–2,5 = + 0,14 mm
Ø 3,15–5,0 = + 0,18 mm
Ø 6.3 = + 0.22 mm

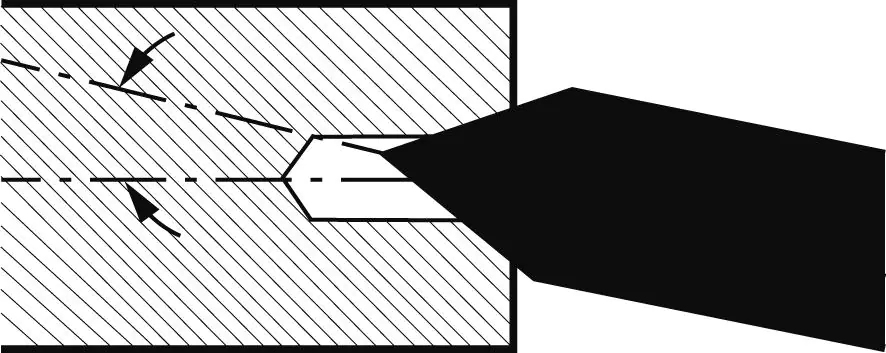

Application: standard drill for making centerings according to DIN 332, sheet 1, shape R (with radius).
