Drill step. HSS TiN with quadruple groove spiral.4-20mm EXACT

€50.33
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
EXACT
Product code:
07057 / 4026558070575

Specification

Aluminium < 8% krzemu:Recommended
Aluminium > 8% silicon:Recommended
Always < 1000 n/mm²:Recommended
Always < 1400 n/mm²:Appropriate
Always < 700 n/mm²:Recommended
Copper alloys:Recommended
Grip ø h8:8 mm
Height of steps:4 mm
Inox ferrite./martenz.:Appropriate
No:7057
Overall length:67 mm
Shell:Tin

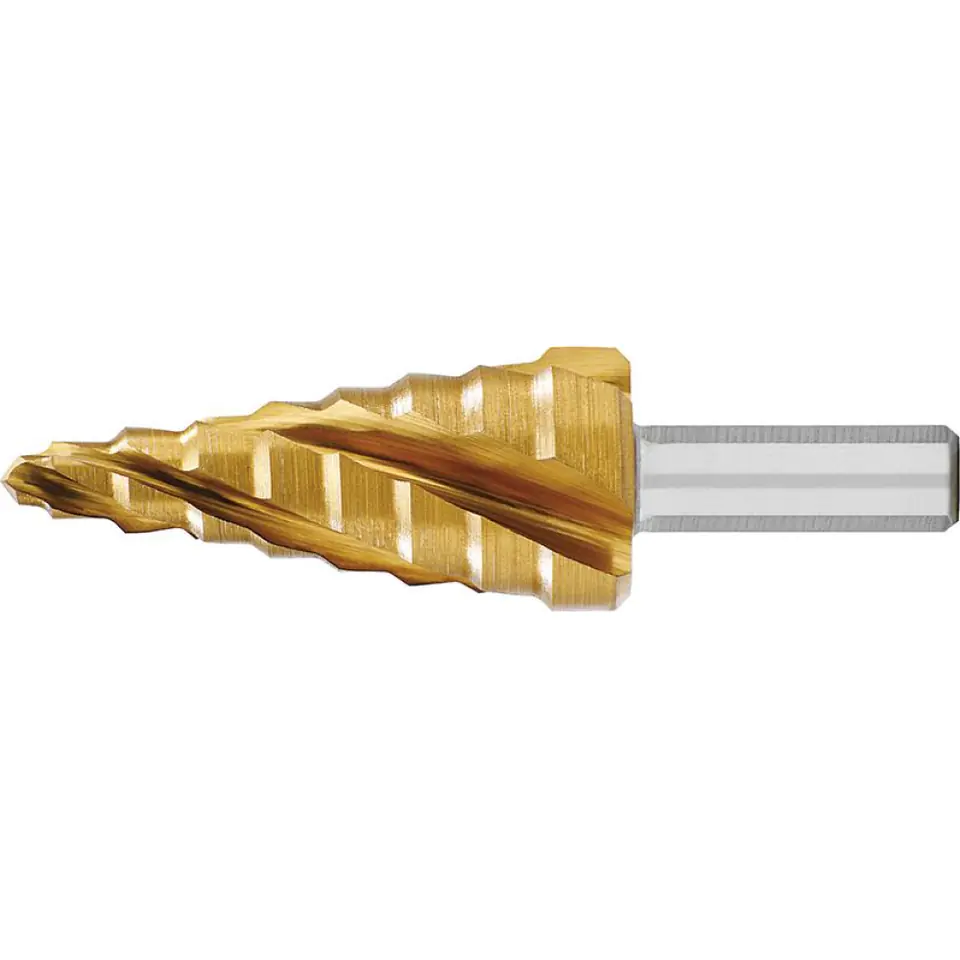

Universal step drill

Design: innovative step drill with 4 cutting edges, INNOVATIVE QUADRUPLE SPIRAL GROOVE, NEW TURBO TIP vertex greatly simplifies centering and drilling. The 3-plane shank prevents the tool from slipping in the chuck. With laser marking of bore diameter and rotational speed. The bore diameter can also be read on a rotating tool.

Application: for burr-free drilling and reaming of sheets, pipes and profiles up to 6 mm thick.
Deburring of materials up to 1.5 mm thick. Work without burrs and notches, can be used in hand or rack drills. No scoring required.

Note: In order to extend the life of the tool, it is recommended to use the #SAP#B#2212425#, 8765180# drilling paste included in the kit.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
