| Aluminium > 8% silicon: | 50 |
|---|---|
| Cast iron gg/gts: | 33 |
| For thread: | M3 |
| Ggg cast iron: | 26 |
| Inox austenite.: | 8 |
| Inox duplex: | 6 |
| Inox ferrite./martenz.: | 10 |

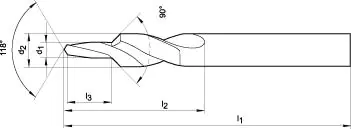

| Length of steps l3: | 9 mm |
| Ø drill bits d1 x ø countersink d2: | 3.2 x 6.0 mm |
| Spiral length l2: | 28 mm |
| Steel < 1000 n/mm2: | 24 |
| Steel < 1400 n/mm2: | 19 |
| Steel < 700 n/mm2: | 30 |
| Total length l1: | 66 mm |

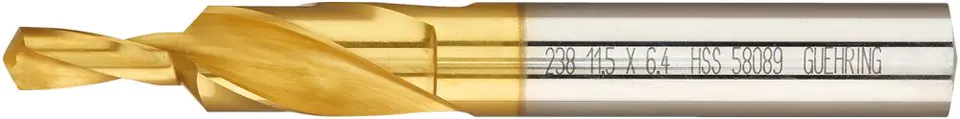

Short step drill, 90°, for through holes
Design: 90° depth angle, accurate quality.
Application: for through holes for screws according to DIN EN 20273 and regrooves under screw heads 90°. Shape A and B, according to DIN 74, part 1. For screws according to DIN 963 and DIN 964. Designed especially for use on NC and CNC machines.
