| Aluminium > 8% silicon: | 50 |
|---|---|
| Cast iron gg/gts: | 33 |
| For thread: | M10 |
| Ggg cast iron: | 26 |
| Inox austenite.: | 8 |
| Inox duplex: | 6 |
| Inox ferrite./martenz.: | 10 |

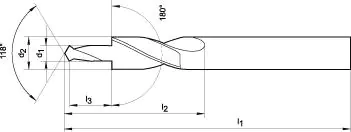

| Length of steps l3: | 23 mm |
| Ø drill bits d1 x ø countersink d2: | 11.0 x 18 mm |
| Spiral length l2: | 62 mm |
| Steel < 1000 n/mm2: | 24 |
| Steel < 1400 n/mm2: | 19 |
| Steel < 700 n/mm2: | 30 |
| Total length l1: | 123 mm |

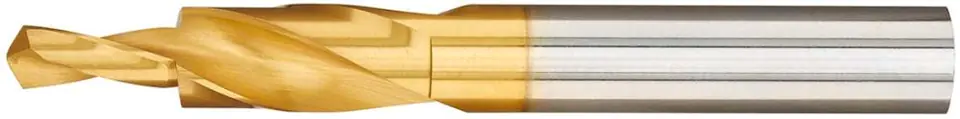

Short step, 180°, through hole
Made of products: 180° depth angle, medium quality.
Application: for screw holes according to DIN EN 20273 and countersinks under screw heads 180°. Shape H, J and K according to DIN 84, DIN 912, DIN 6912, DIN 7513 and DIN 7984. Designed especially for use on NC and CNC machines.
