Technical data:
Product series: Ecoline accessories
Specification: 9 x 81 x 125 mm
Product text, accessories, grey: Pack size of 1
Genus. Pack.: Combined cardboard and plastic packaging, Tight Pack, with Euro hole
Incl. Pack. : 1 Pcs.
Diameter (D) mm: 9,00
Working length (L1) mm: 81
Overall length (L2) mm: 125
materials to be processed (details):
- Alloy/non-alloy steel
- Grey cast iron
- Hardened plastic
- Steel/Ferrous Metal
- Stainless steel/Inox

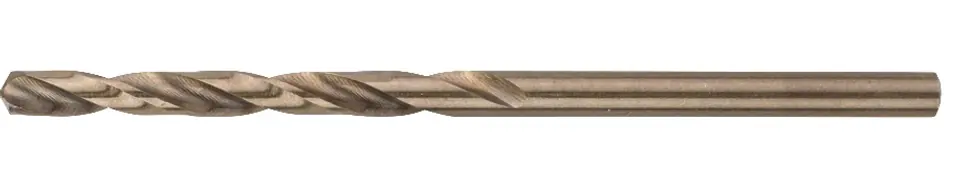

HSS Cobalt twist drill bit has a long service life when drilling stainless steel
Two cutting edges and two grooves enable fast chip evacuation and extend drill life
Complies with DIN 338. Drill bit type N (apical angle), with 135-degree tip and diameter tolerance h8
Active cutting and excellent centering without the drill sliding on the surface thanks to the cross-ground tip
The HSS Cobalt twist drill bit is manufactured in accordance with DIN 338. Drill type N (apical angle) with 135-degree tip and tolerance of diameter h8. Active cutting and excellent centering without the drill sliding on the surface thanks to the cross-ground tip.
Drill bit designed for drilling alloy and non-alloy steel, stainless steel, cast iron, cast steel and steel resistant to acid and high temperatures. It is equipped with a cylindrical chuck (a mandrel equal to the diameter of the drill) and is intended for use with stationary drills and screwdrivers.
**
