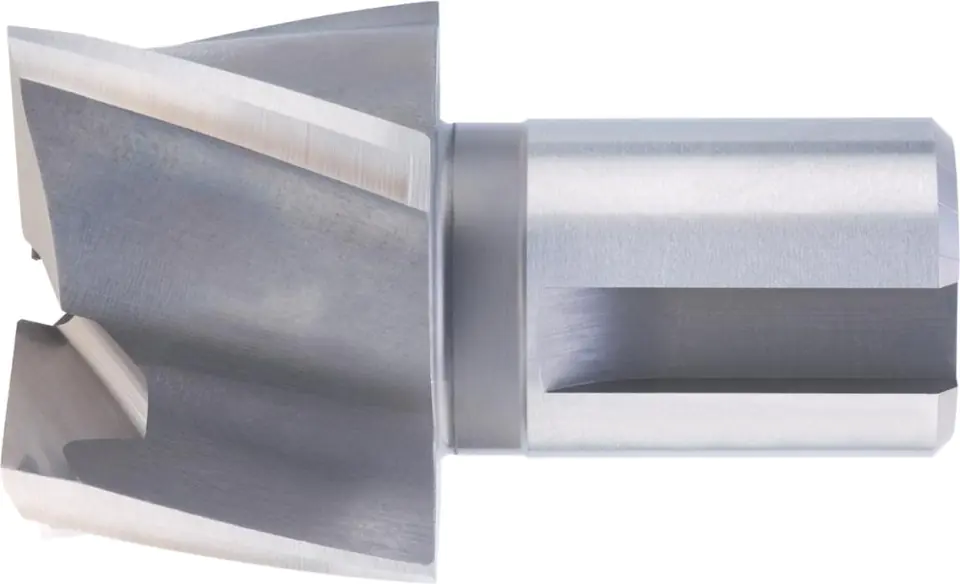

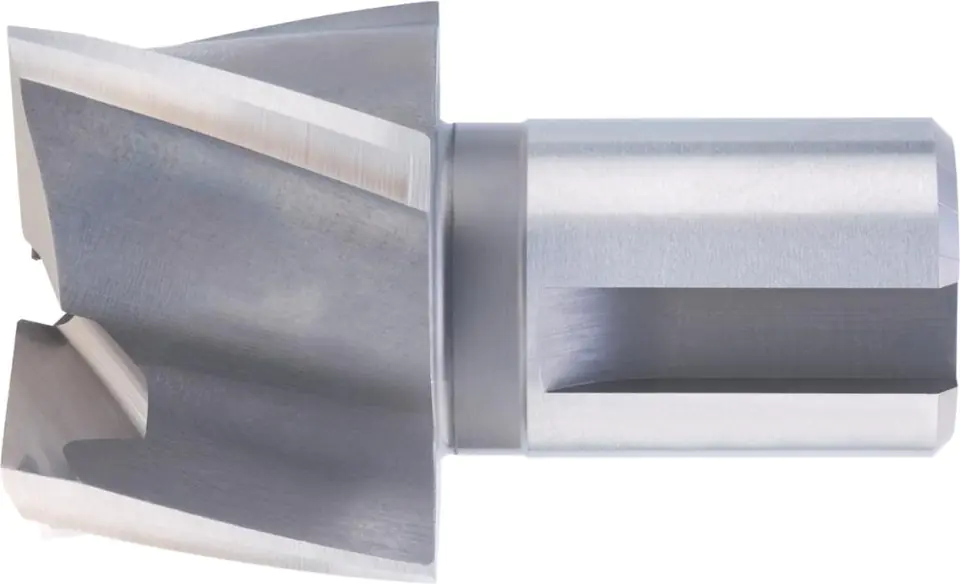

Dredger with guide journal HSS, wlk. 2 33mm GFS

€155.00
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
GfS
Product code:
16821330 / 4033591013414

Specification

Dredge ø (k8) d:33 mm
Execution:3-blade
Grip length:33 mm
Grip ø mk/mm:22 mm
Head length:27 mm
Hole ø:10 mm
Overall length:60 mm

Dredge with guide pivot – size 2

Material: hardened and grinded. The countersink and journal are fastened with screws, with the countersink being additionally protected against displacement by means of a mandrel
Application: for DIN countersinks as well as for suitable journal and countersink combinations for stepped holes or out-of-standard countersinks.

Available up to 85mm diameter.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
