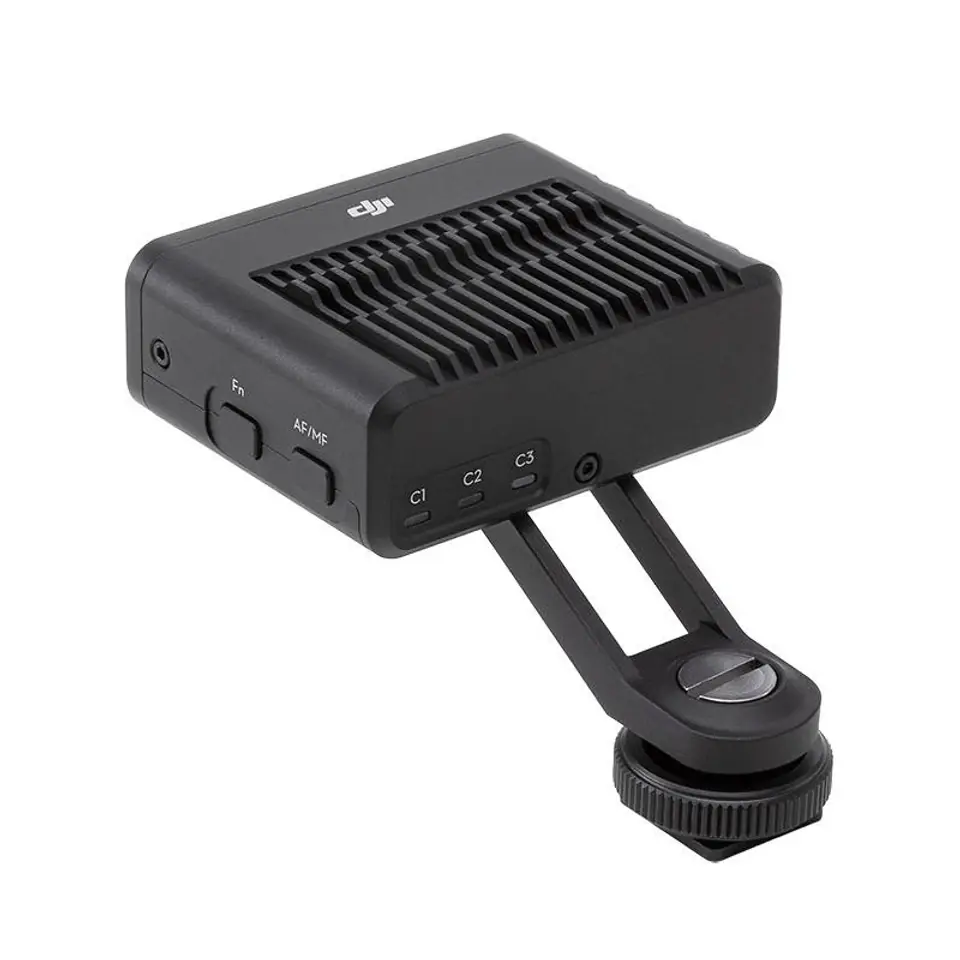

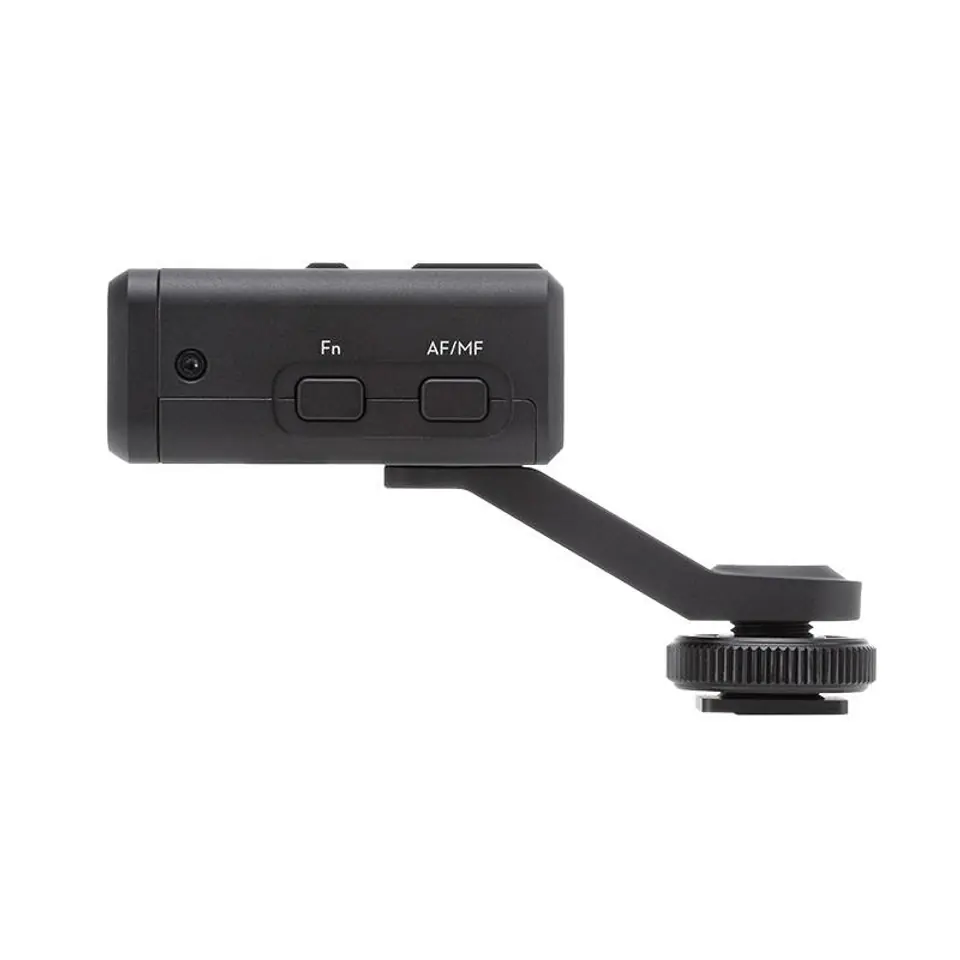

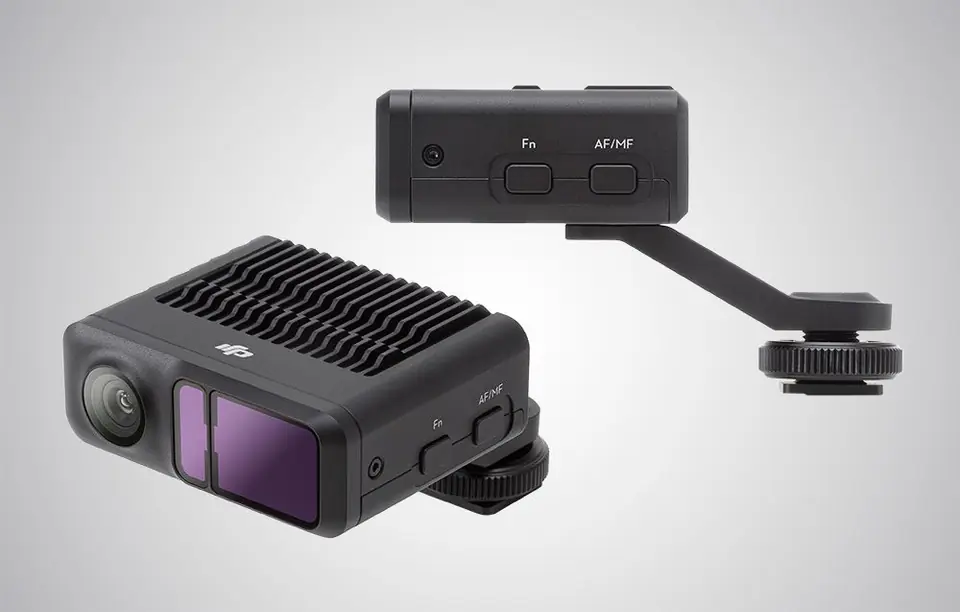

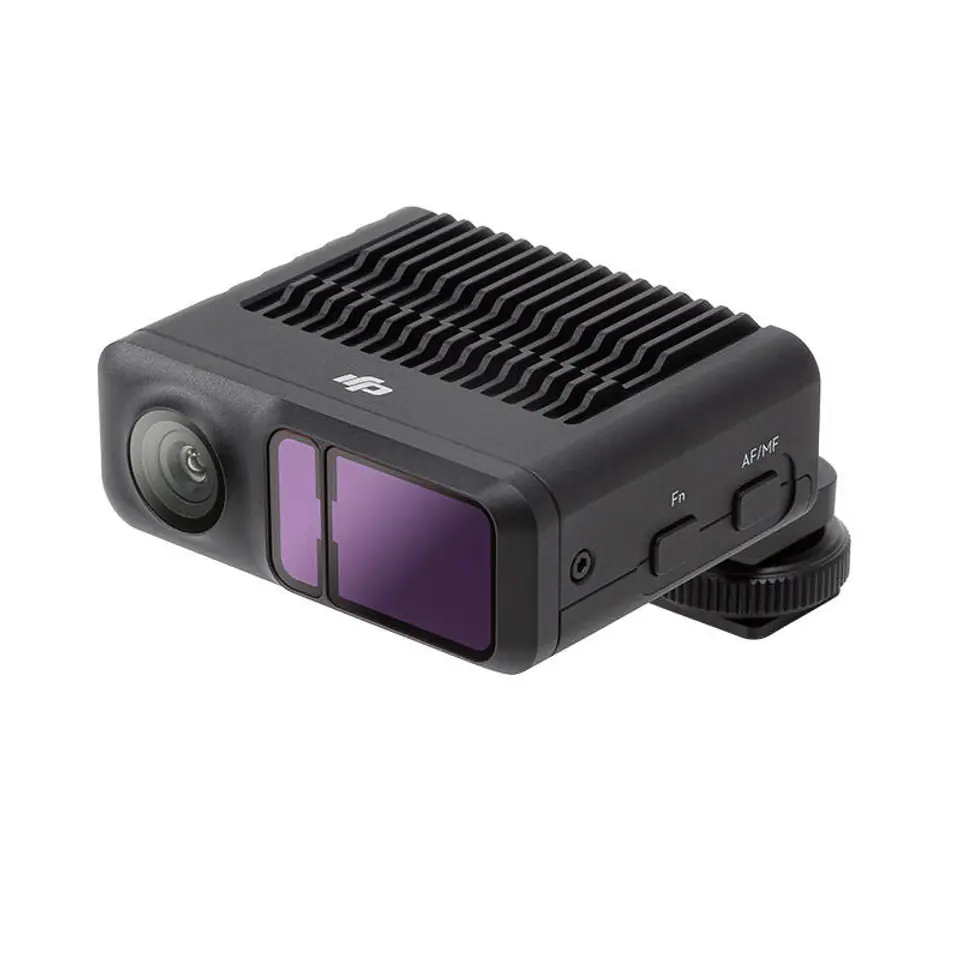

DJI LiDAR Range Finder RS 3 Pro

€805.78
Shipping from warehouse: ⁨I2⁩
Estimated shipping: Mon, Nov 11 - Thu, Nov 14
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
DJI
Product code:
CP.RN.00000288.01 / 6941565935533

Specification

Quantity per carton:20 pcs.

Make it easy to adjust the focus, even in low light conditions. LiDAR Range Finder can explore its surroundings and can therefore display up to 43,200 distance points and has a detection range of up to 14 m. Moreover, its operation is not dependent on the texture of the surface of the object. It also has a built-in camera with a focal length equivalent of 30 mm, whose field of view (FOV) reaches 70°. This means that it will be perfect for various scenarios. When you combine it with the new DJI RS Focus Motor (2022), you'll be able to use autofocus on handheld lenses. In addition, with the LiDAR RANGEFINDER, THE DJI RS 3 Pro supports ActiveTrack Pro mode, which offers greater performance in identifying and tracking selected objects.

  • DJI LiDAR Range Finder x1

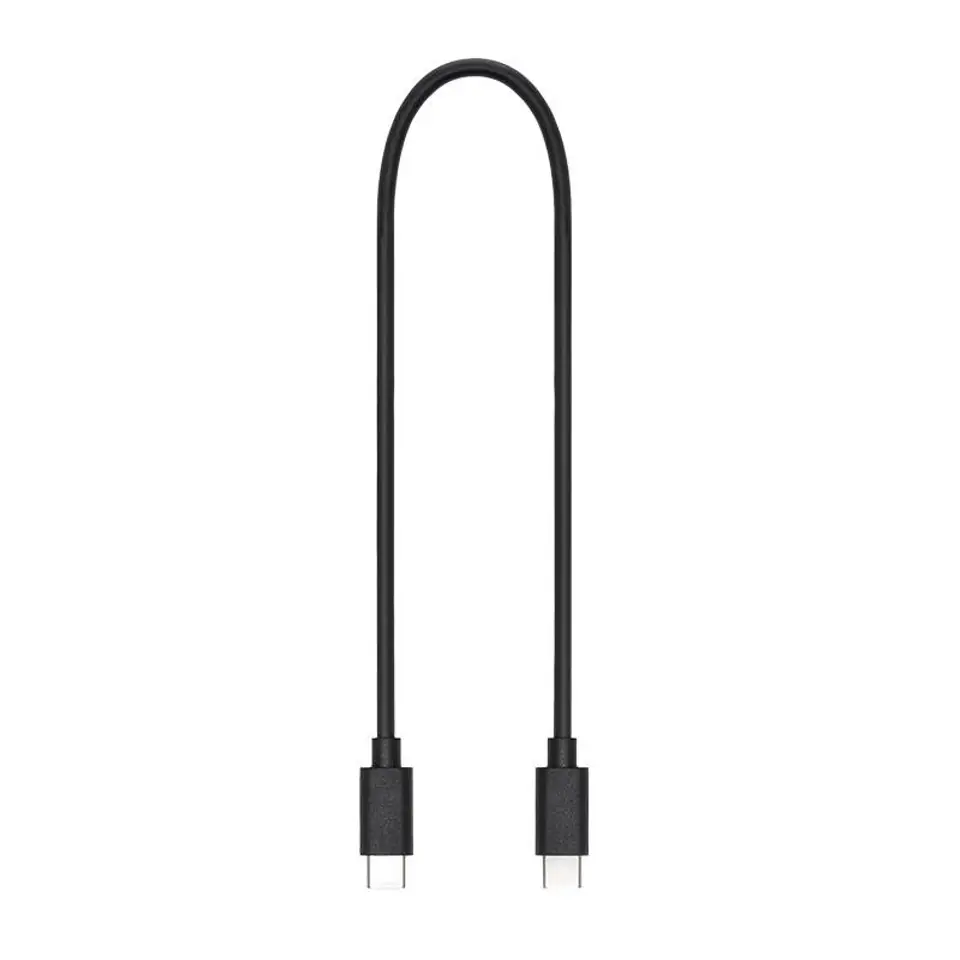

  • MCC cable (USB-C, 30 cm) x1

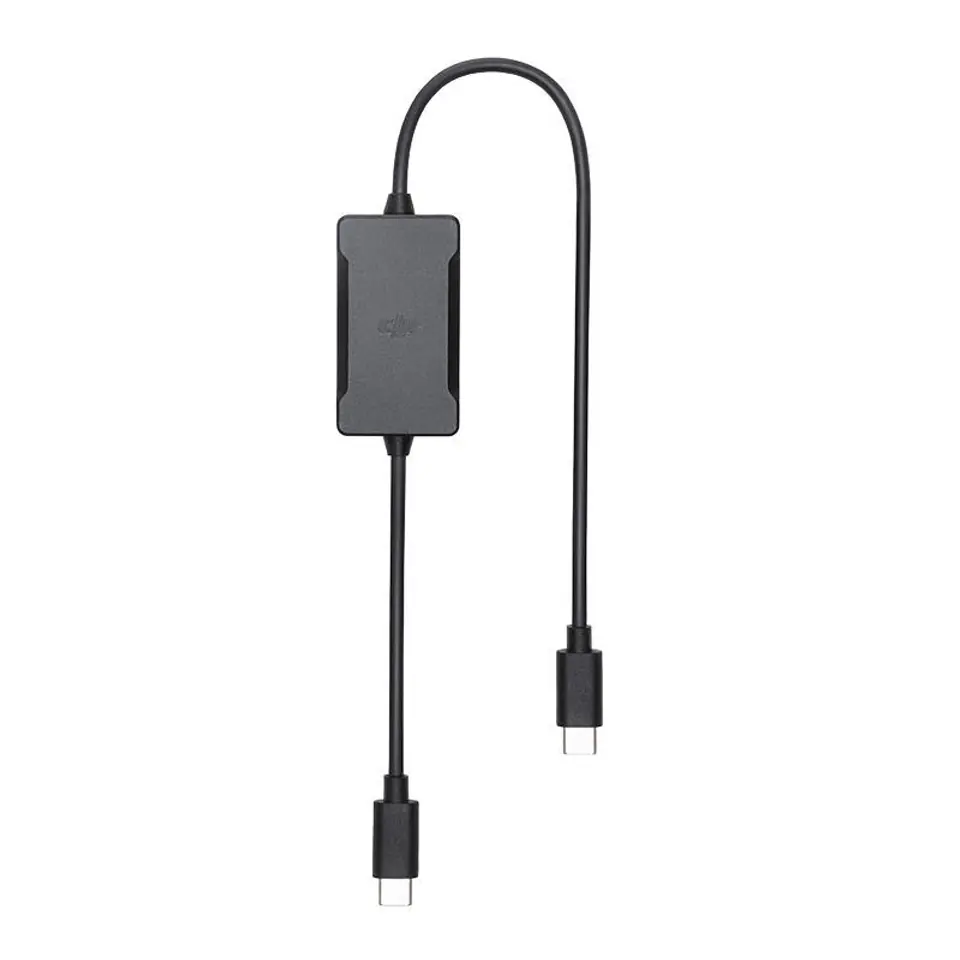

  • LiDAR Control Cable (USB-C, 30 cm) x1

ProducerDJI
NameDJI LiDAR Range Finder
Available portsCold shoe, mounting hole 1/4"-20, USB-C, USB-C Power/CVBS/CAN Data
Resolution (image sensor)448 x 298 on touch
Field of View (FOV)57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Equivalent focal length30 mm
Resolution (ToF sensor)240 x 180
ToF sensor detection range0.5-14 m
Distance error (ToF sensor)1%
LearningIt can recognize up to 5 objects simultaneously and select one of them to track it.
Identification rangeUp to 9 m
Power consumption6.8 Watts
Input voltage7-16 volts
Operating temperature-20-45°C
Dimensions66 x 57 x 24 mm (L x W x H)
ScalesApprox. 130 g
Mounting plate height30 mm
Lenses that do not require calibrationDZOFILM Vespid Cyber 35 / 50 / 75 mm
CompatibilityDJI RS 3 Pro

DJI LiDAR Range Finder (RS 3 Pro)
