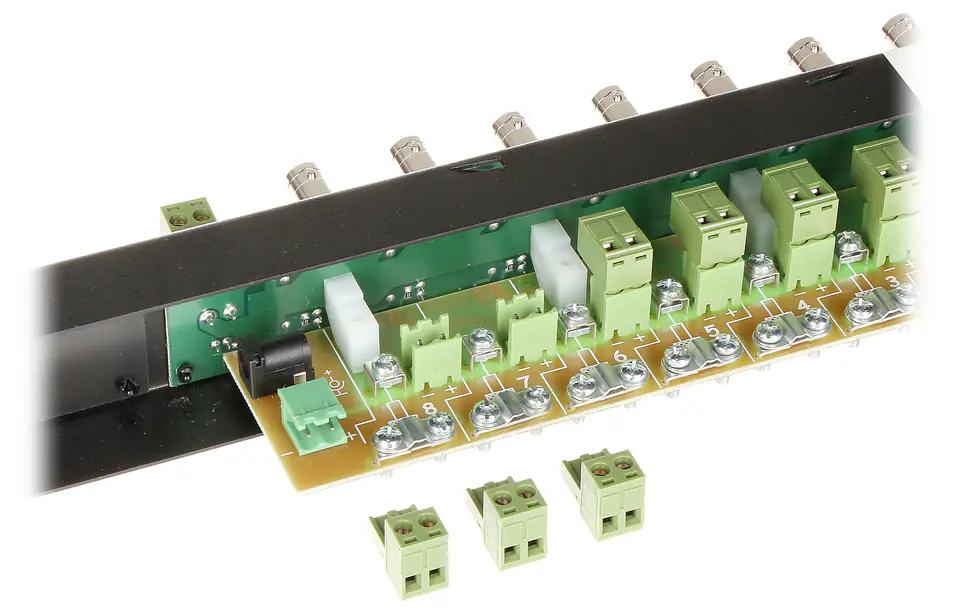

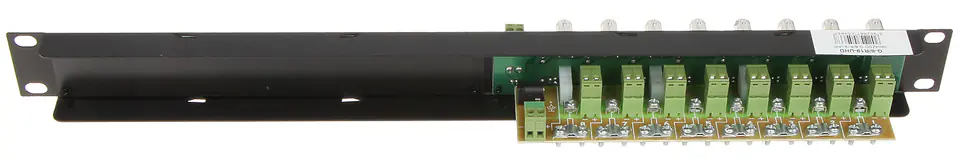

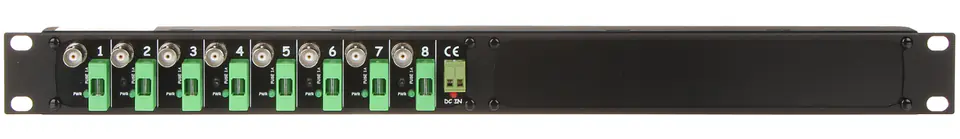

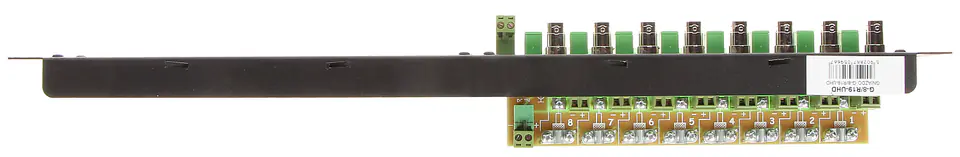

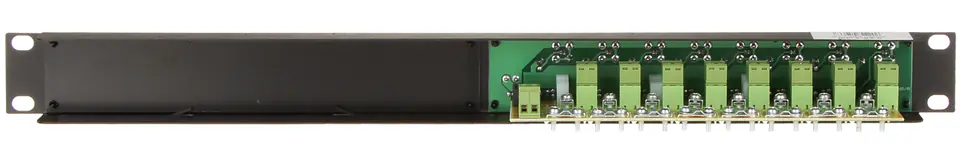

G-8/R19-UHD is a device designed for convenient and permanent connection of 8 coaxial CABLES (e.g. YAP type), and branching the power supply from a high-quality external power supply to 8 outputs, each of which is protected by a fuse, and has an LED indicating its burningThe coaxial wires are fixed with the help of low-loss screw terminals (clamp of the conductor and the wire screen)
The most important features of the device:
It is dedicated to applications using video signal standards: AHD, HD-CVI, HD-TVI, PALOprove space saving in the rack cabinet – distribution socket in one panel 1UIsle-efficient designAdd installation of a coaxial cable: the clamp of the conductor and the cable screen connects the cable with BNC8 sockets power outputs with short-circuit protection protected by 1A fusesEach output has a green LED that lights up during normal operation (no lighting means burnout fuse)Red LED (POWER) indicates voltage from external power supply
