DISTRIBUTION SOCKET G-16/R19

€138.48

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Wed, Nov 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: G-16/R19 / 5902887016264

Specification

Assembly::	Rack 10"
Case::	Metal
Colour::	Black
Current consumption of the device (for different uz)::	12 V = 150 mA / 30 V = 250 mA
Dimensions::	480 x 48 x 44 mm
Manufacturer / brand::	DELTA
Max. current::	150mA camera - 98 meters (R=3,4Ohm/100m) 150mA camera - 60 meters (R=5,5Ohm/100m) 650mA camera + thermostat - 22 meters (R=3,4Ohm/100m) 650mA camera + thermostat - 14 meters (R=5,5Ohm/100m)
Maximum current of a single output::	1 A
Maximum supply current::	2x10 A
Number of power inputs::	6 pcs. 2.1/5.5mm socket / cable terminals
Number of power outputs::	16 pcs. Cable clamps
Number of video inputs::	16 pcs. screw terminals
Number of video outputs::	16 pcs. BNC socket
Operating temperature / relative humidity::	-50 °C ... 55 °C / < 95 %
Power::	8 ... 30 V DC (typically 12 V)
Purpose of leds::	red "POWER" - informs about the supply voltage (DC IN) green "PWR LED" - inform about the failure of the fuse (no lighting means that the fuse is blown) yellow "VIDEO LED" - inform about the presence of a video signal
Scales::	0.6 kg
Standard::	CVBS - PAL / NTSC
Type of fuse inserts::	1A/250V, 5/20mm, time-lag
Warranty::	3 years

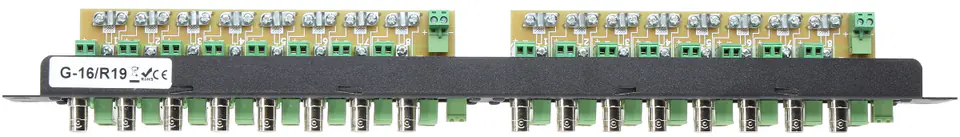

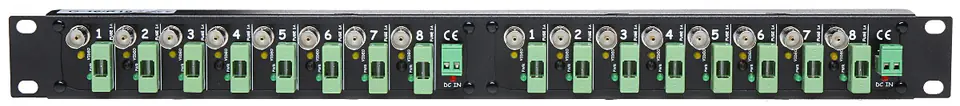

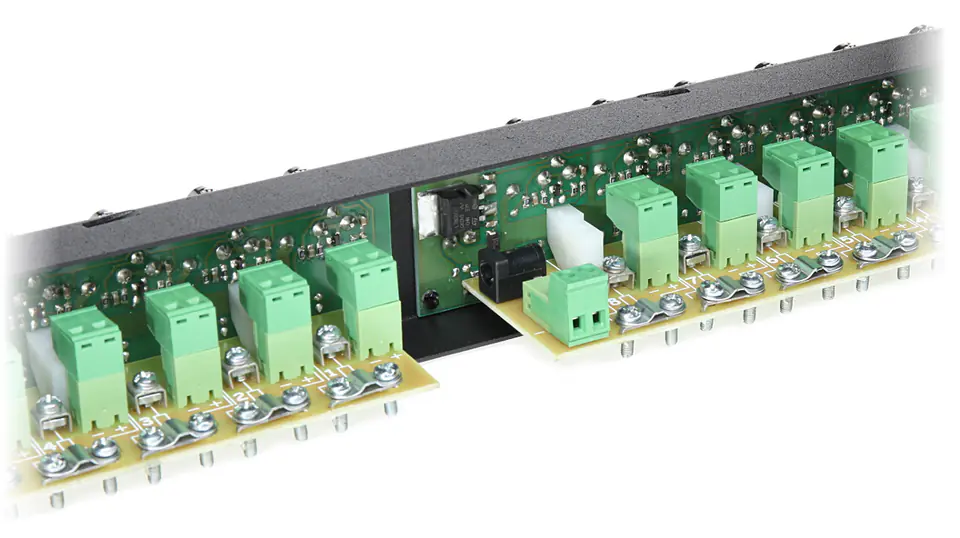

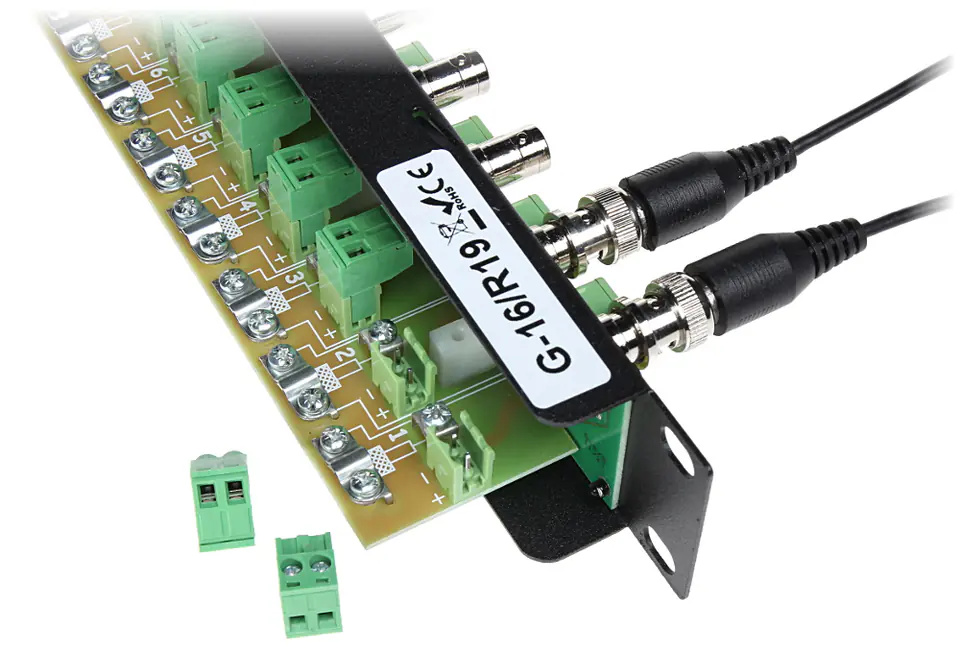

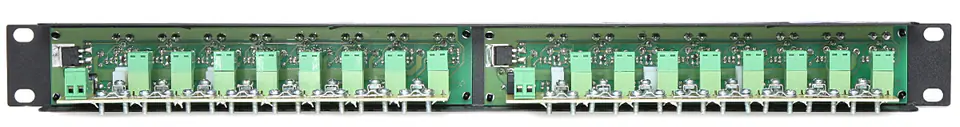

G-16/R19 is a device designed for convenient connection of 2x8 YAP CCTV cables and orderly branching of power supply from one power supply of higher power G-16/R19 branching power supply to 2x8 outputs, each of which is protected by a fuse and has an LED informing about its burning out (lack of lighting means that the fuse is burned out)G-16/R19 has three power input sockets, which are connected to each otherIt does not matter which connector we supply power to, which allows connection either via DC 2.1/5.5 plug or isolated wiresIt also allows you to connect the connectors in series with each other, e.g. power to the DC IN socket, from DC IN cable terminals, using the WT-2.1 cable to the second G-16/R19 socketThe device is ideal for connecting the power supply with the 2.1/5.5mm plug to the YAP75 cables supplying the camera

No more hanging wires in the RACK cabinet! Take care of the aesthetics of the wiring

YAP75-0.59/3.7+2x0.5 CCTV cable has 2 wires of 0.5mm²The theoretical value is 3.4Ω/100mThe manufacturer of the cable gives 5.5Ω/100mPowering the camera with DC 12V voltage with a YAP75 cable and assuming a voltage drop of up to 11V, the power supply can be transmitted at the distances given in the table below

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
