| Dimensions: | 1110 x 590 x 500 mm |
|---|---|
| Energy gain: | 11 ... 14 dBi - passive mode - no power, 25 ... 32 dB - active mode - DC 12V power supply (no power supply included) |
| Impedance: | 75 Ω |
| Polarity: | Horizontal / Vertical - after rotating 90° |
| Received channels: | 21 ... 48 |
| Scales: | 1.6 kg |

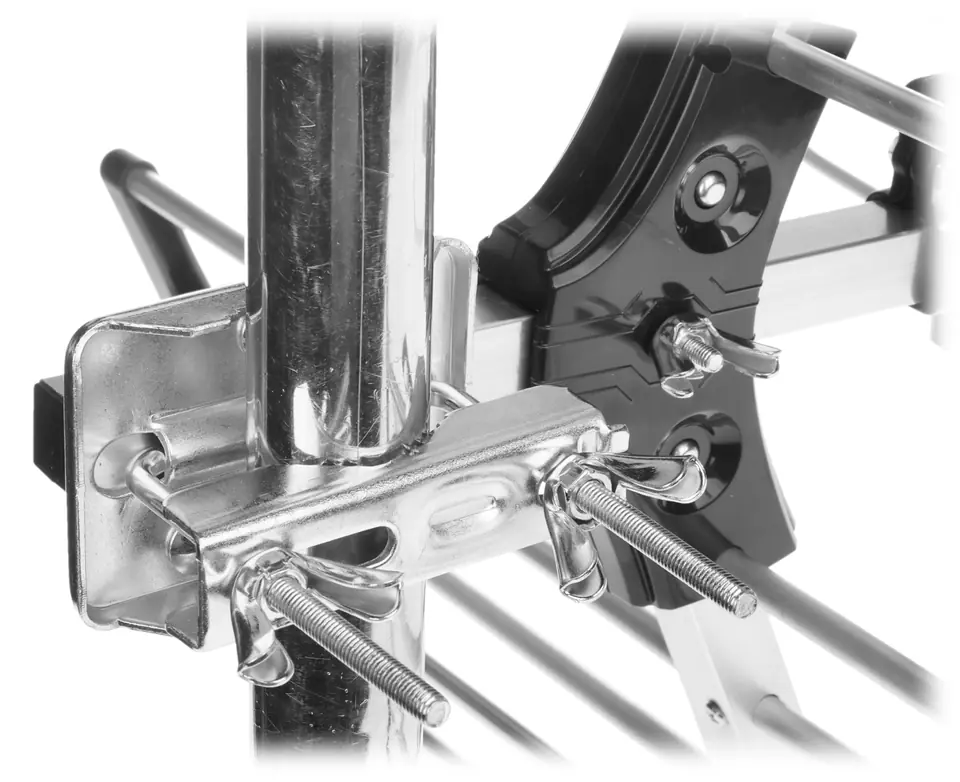

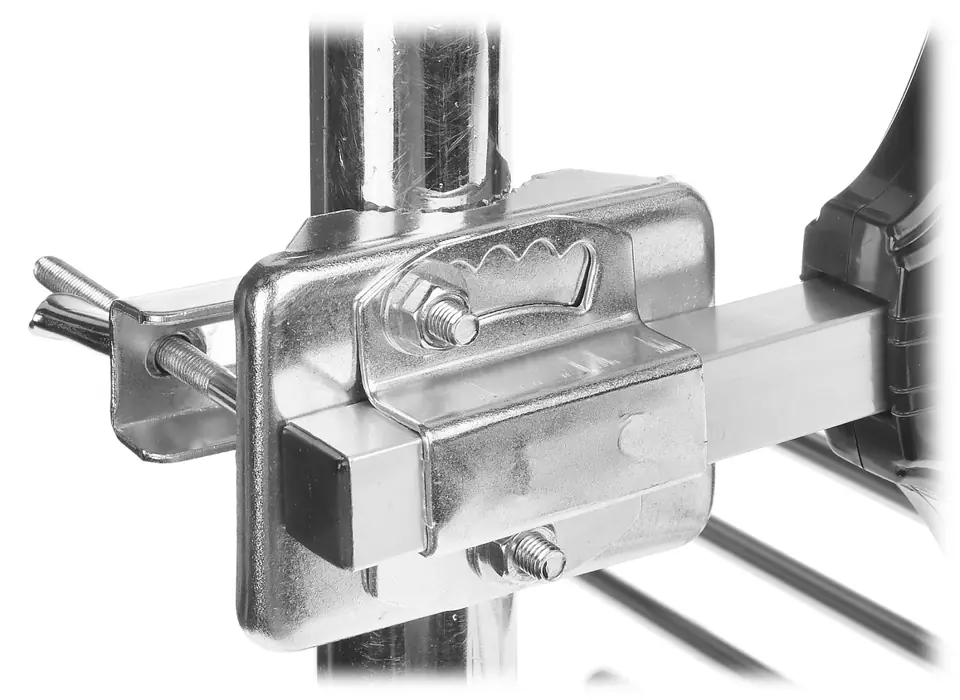

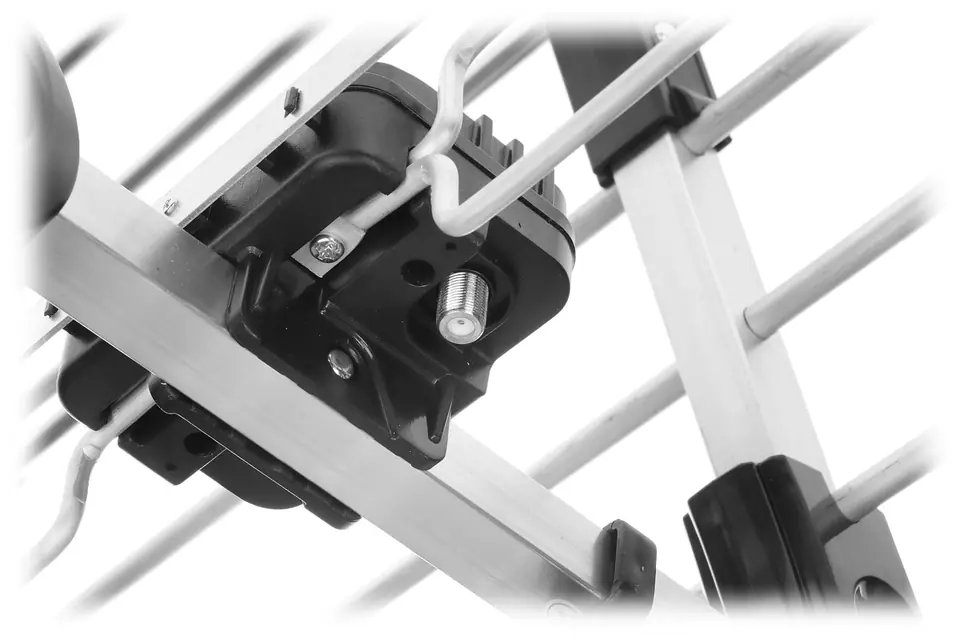

| Selected features: | Number of elements: 25 Built-in LTE filter, Built-in antenna amplifier with bypass - operation in passive or active mode, Mounting to mast max. Ø 60 mm The design of the antenna allows simple, quick assembly without the use of tools |
| Warranty: | 2 years |

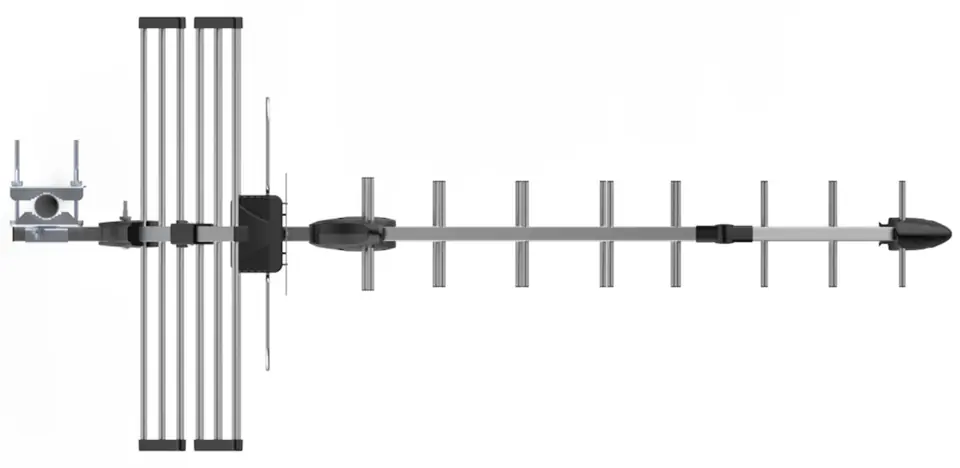

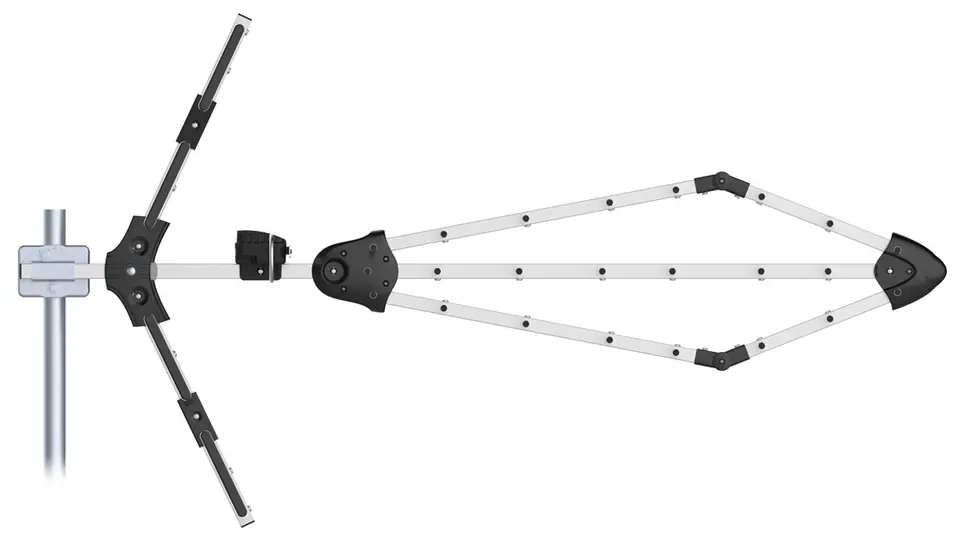

The directional antenna SMART-HORIZON is adapted to receive digital terrestrial television DVB-T / DVB-T2

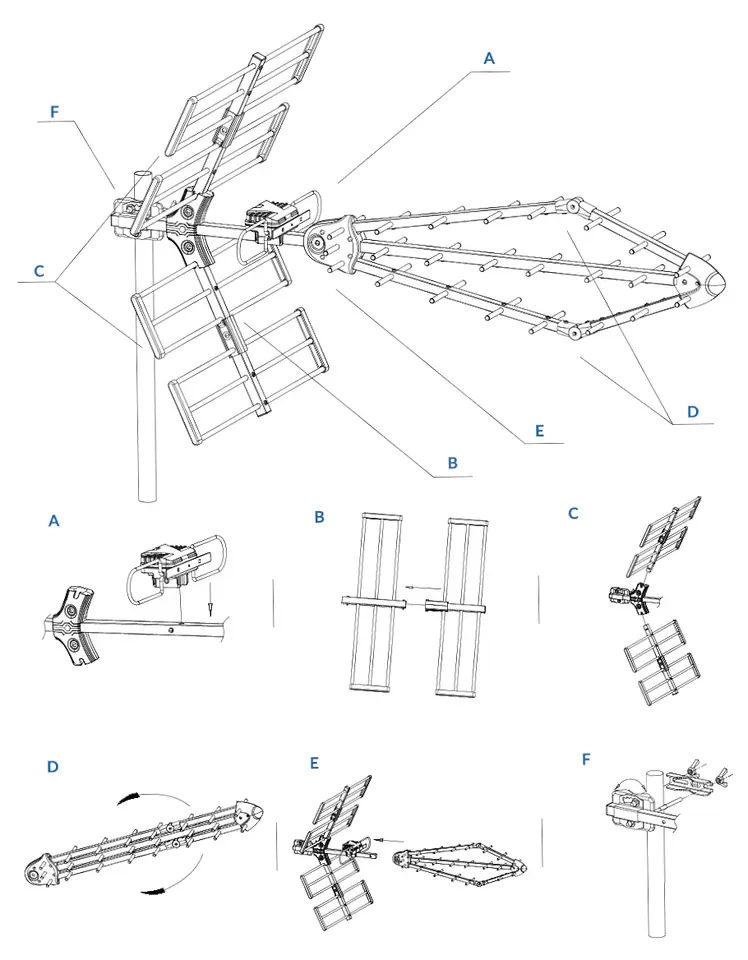

Assembling the antenna is very easy, does not require tools and takes up to several minutesThanks to its design, despite its compact dimensions, the antenna is characterized by a particularly high gainThe parts of the antenna are made of aluminum, and the steel structural elements have been galvanized
