The device is used to automatically control lighting or other electrical consumers while saving electricity. Its task is to switch on and disconnect the electrical circuit when the light intensity drops below the set level. Potentiometer for adjusting the light intensity. External probe in an airtight housing connected via PG7 gland with a cable with a length of max. 15 m, DIN rail mounting.

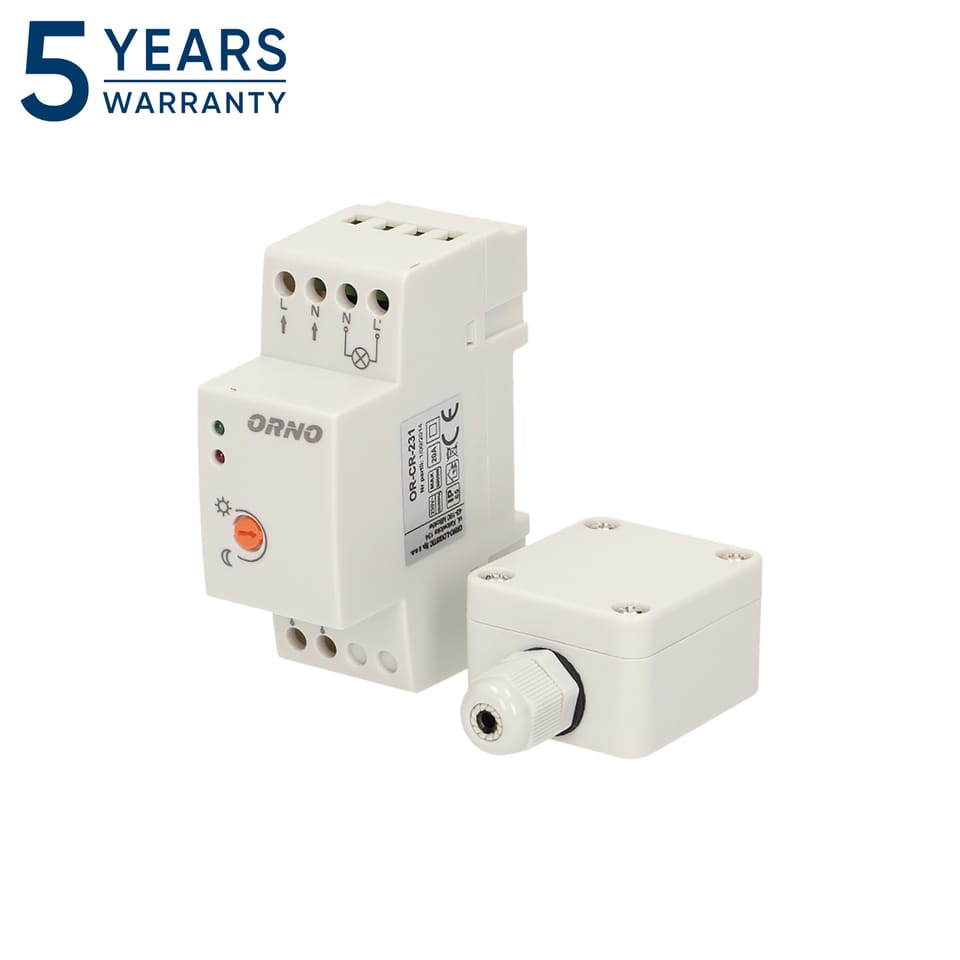

DIN rail twilight sensor with airtight external probe in a can, 2-100 LUX
€12.95
Shipping from warehouse: A2
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Orno
- Product code:
- OR-CR-231 / 5901752483972
Share this product:
Specification
| Brightness adjustment range [lx] from: | 2 |
|---|---|
| Brightness adjustment range [lx] to: | 100 |
| Built-in depth [mm]: | 66 |
| Degree of protection (ip): | IP65 |
| How to mount the sensor: | Wall |
| Input for button: | No |
| Maximum switching capacity for filament lamps [w]: | 3000 |
| Mounting method: | DIN rail |
| Protection class (ip) of the sensor: | IP20 |
| Rated frequency [hz] from: | 50 |
| Rated frequency [hz] to: | 50 |
| Rated switching current [a]: | 20 |
| Rated voltage [v]: | 230 |
| Width expressed by the number of modules: | 2 |
| With programmable shutdown for the night: | No |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
