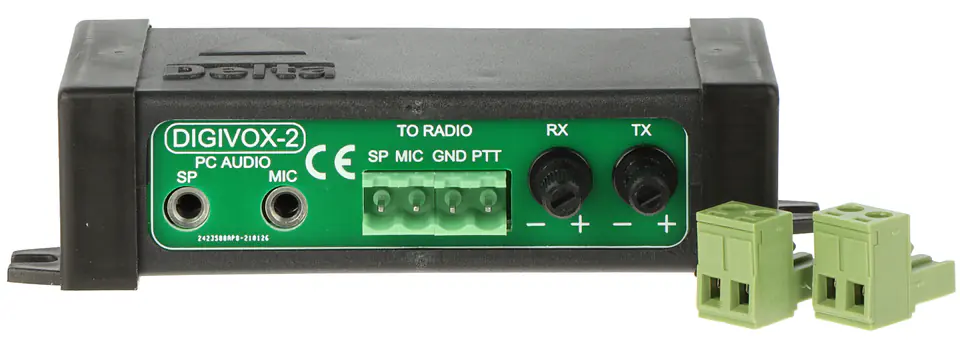

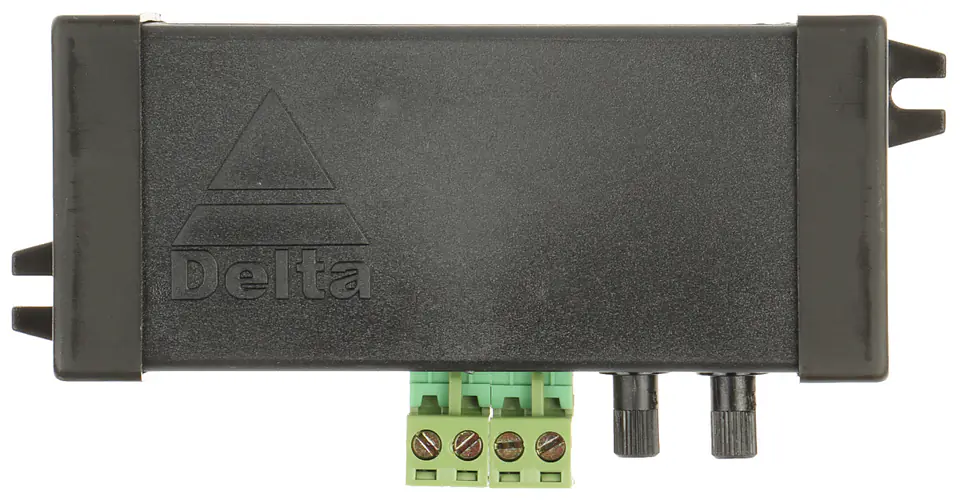

DIGIVOX-2V2 DIGITAL BROADCASTING INTERFACE

€26.18
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Delta
Product code:
DIGIVOX-2V2 / 5902887070181

Specification

Connector type::PC AUDIO : 2x Jack jack 3.5 mm, TO RADIO : 4x cable terminals detachable
Device type::Passive
Dimensions::118 x 30 x 59
Galvanic separation::600 volts
Manufacturer / brand::DELTA
Minimum value of the audio signal from the sound card::250 mV RMS
Operating temperature::-20 °C ... 55 °C
Ptt off time::5 ms
Ptt output::Type "open collector" (OC) max. 30 V / 300 mA
Ptt switching time::20 ms
Scales::0.94 kg

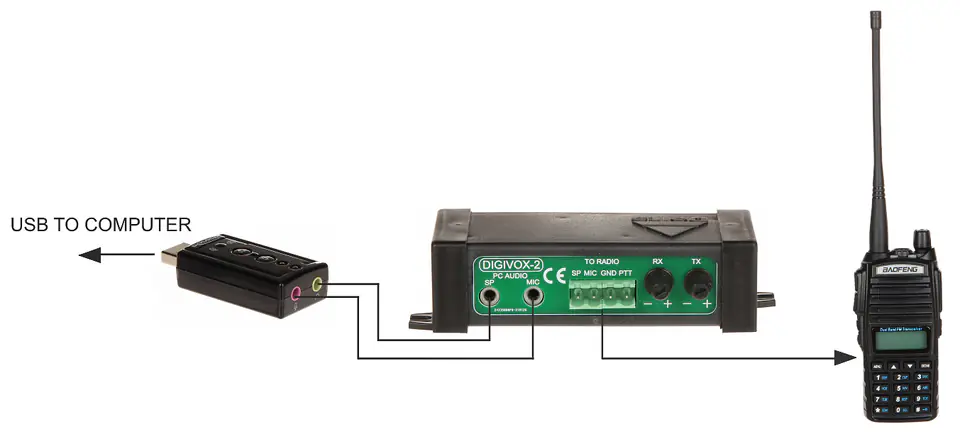

Selected features::Allows you to connect any VHF/UHF or KF radio to your computer Works very well with manual radios, e.g. Baofeng Provides full and complete galvanic separation between the radio and the computer (600V) No external power supply no serial or parallel or USB port needed - connection to the computer is done exclusively through the audio I/O paths of the sound card Works with most computer programs designed for digital broadcasting, e.g. Packet, PSK31, RTTY, SSTV, FAX Works very well with Winlink Express (e-mail via radio waves), which allows you to send messages in the absence of internet using a gateway (e.g. Poznań SR3WLK) or directly (peer-to-peer)
Warranty::2 years

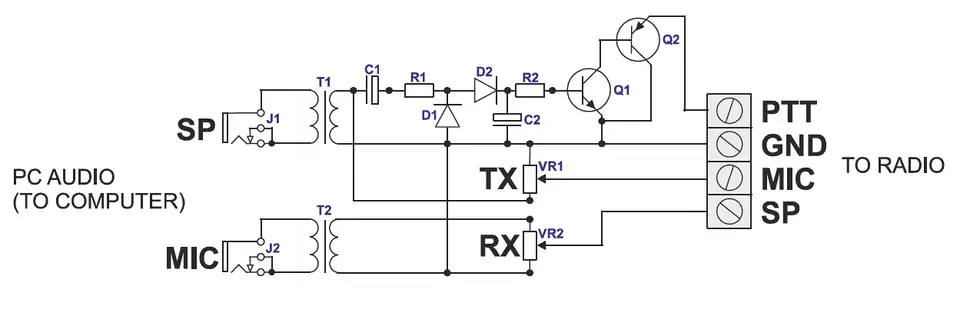

DIGIVOX-2V2 is a passive, power-free computer-to-radio coupling systemThe device is designed for digital modes that use the sound card as a modem

DIGIVOX-2V2 has been tested with Winlink Express, FLDIGI, JS8Call, WSJT-X, Ham Radio Deluxe, KG-STV

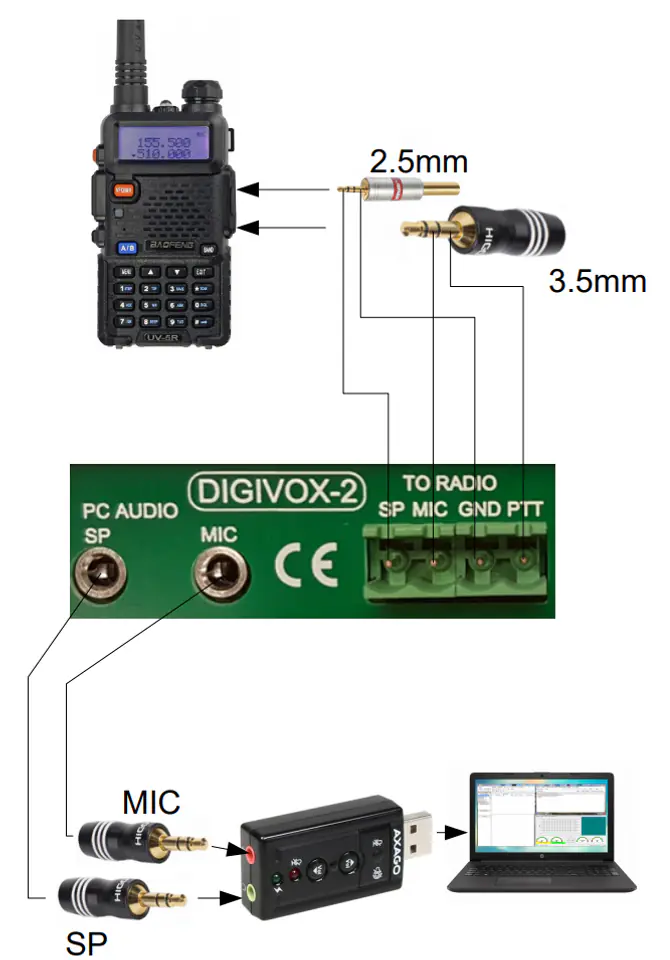

The interface is dedicated to radios without PTT output, e.g. Baofeng, Anytone, Kenwood, Woxun

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
