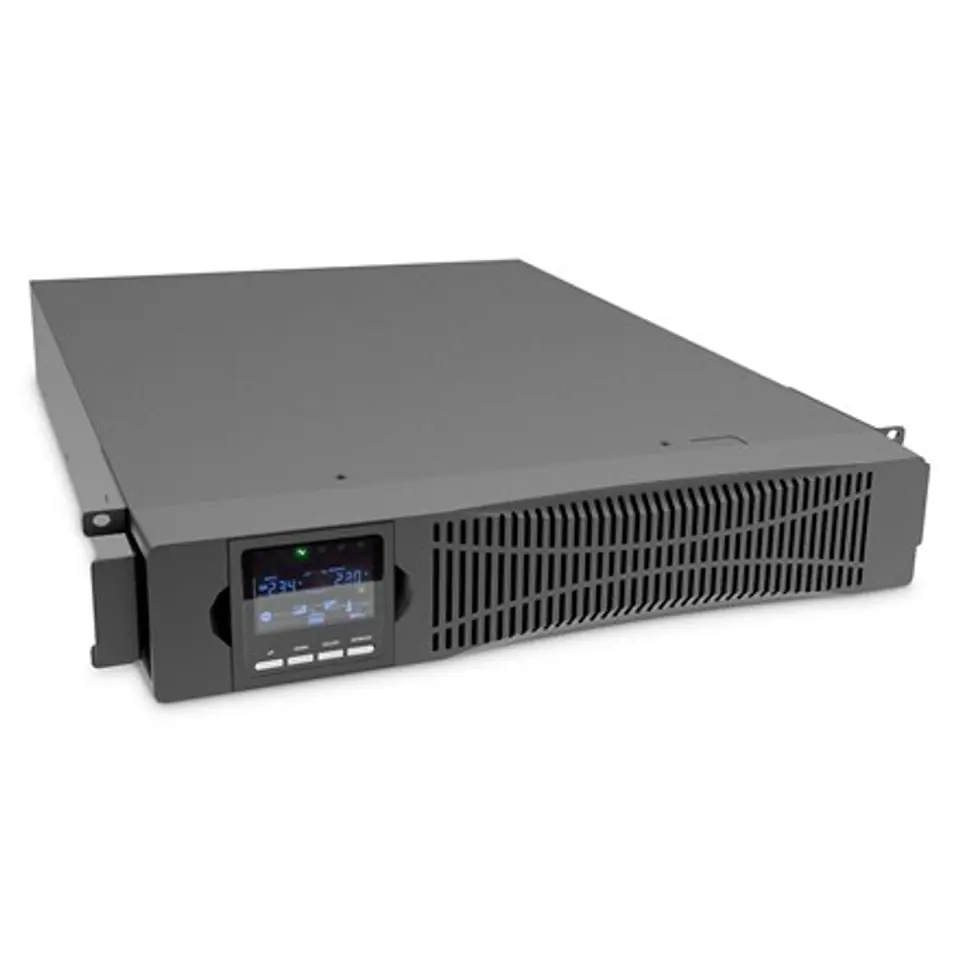

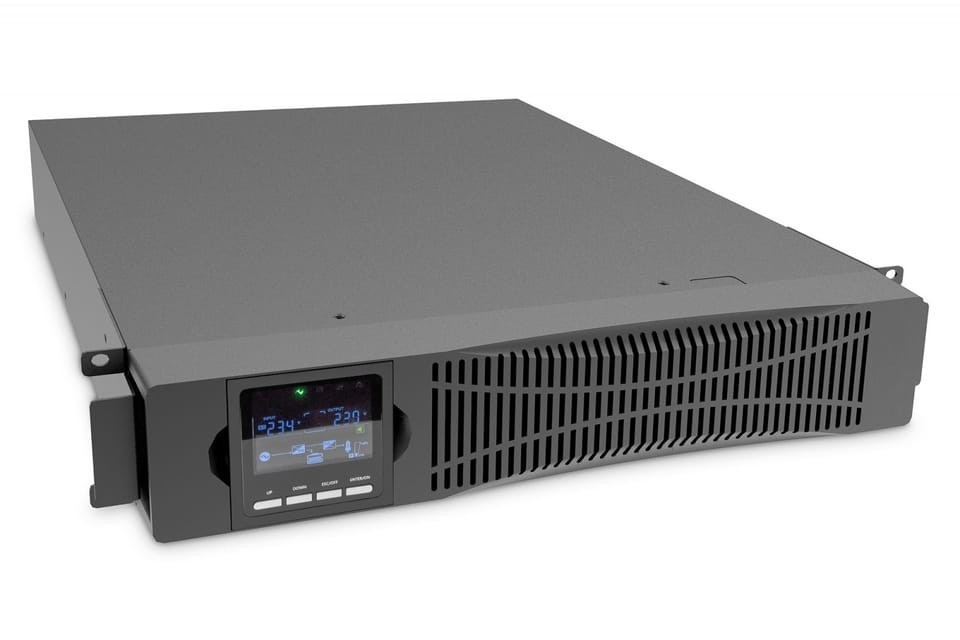

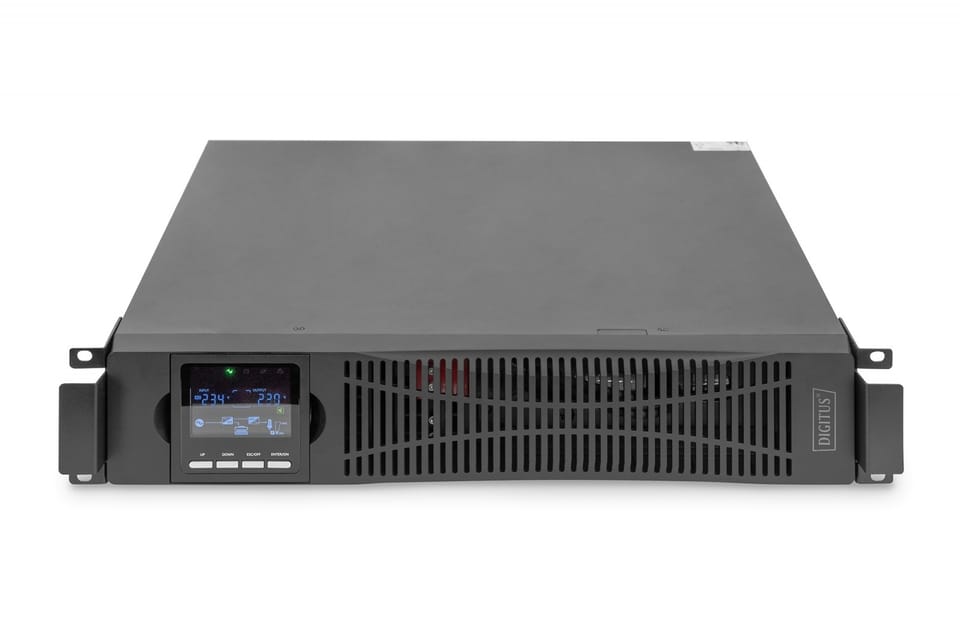

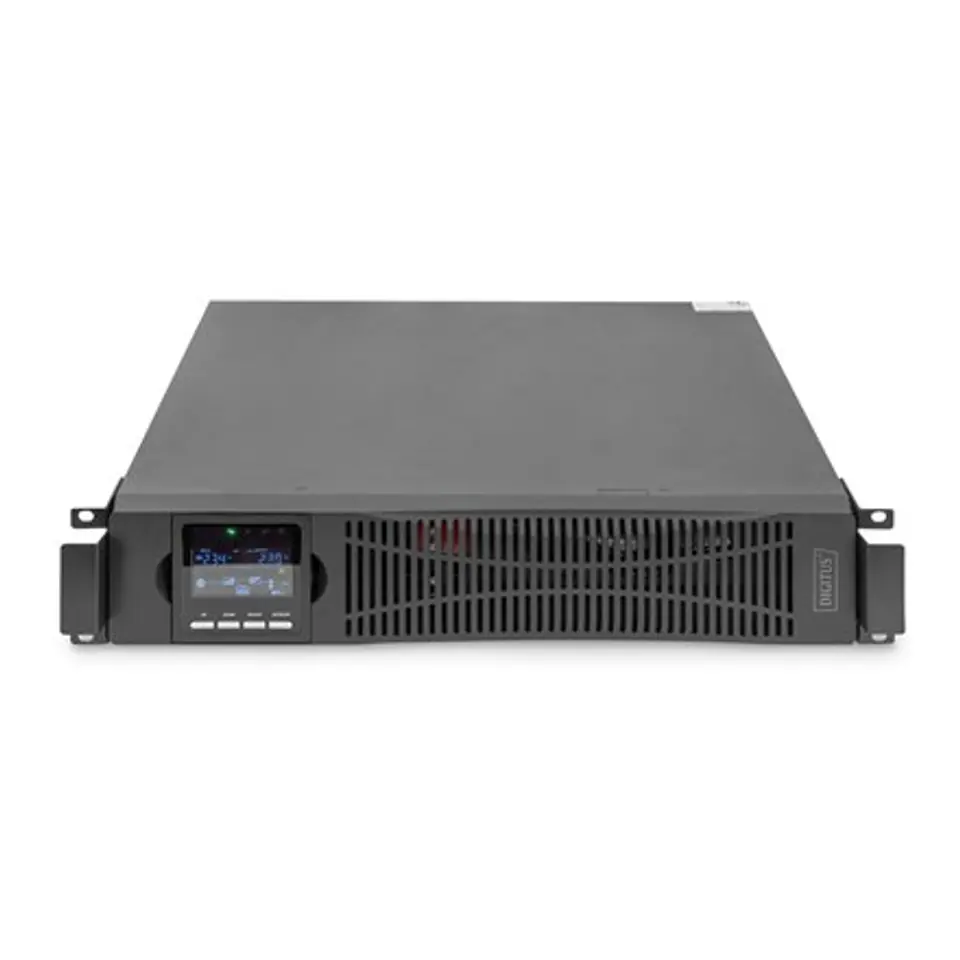

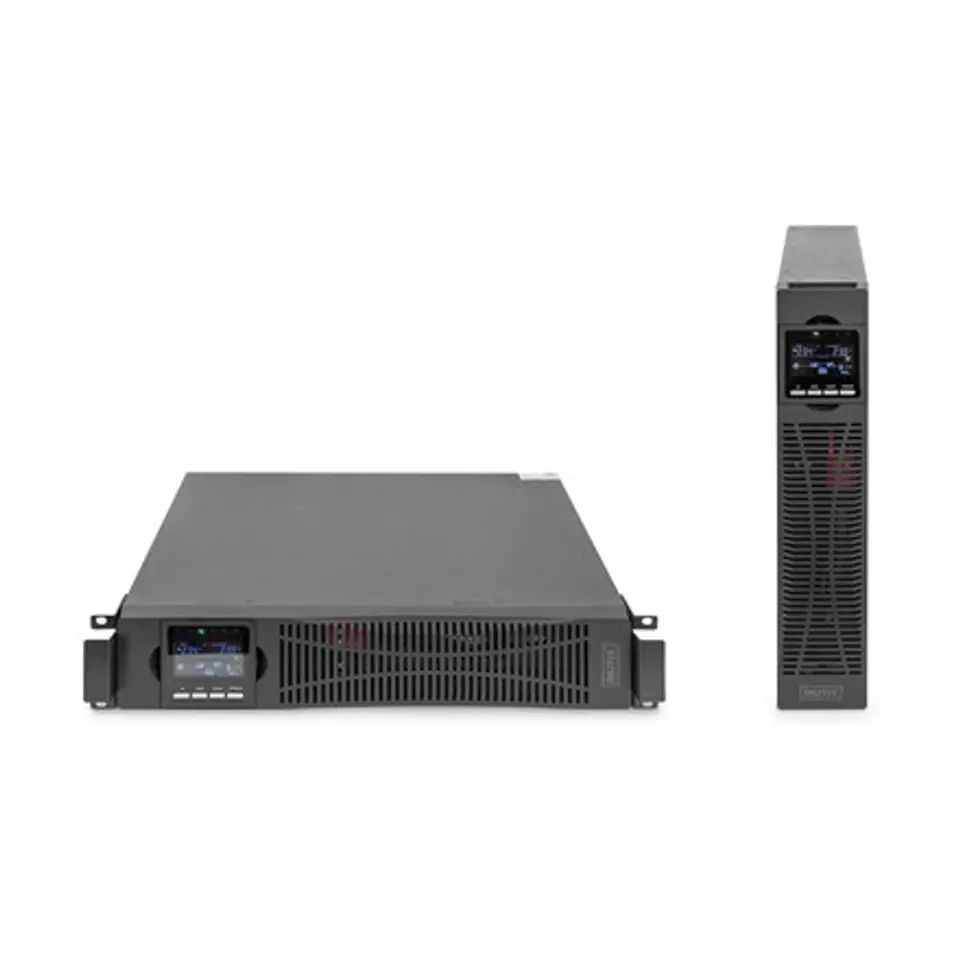

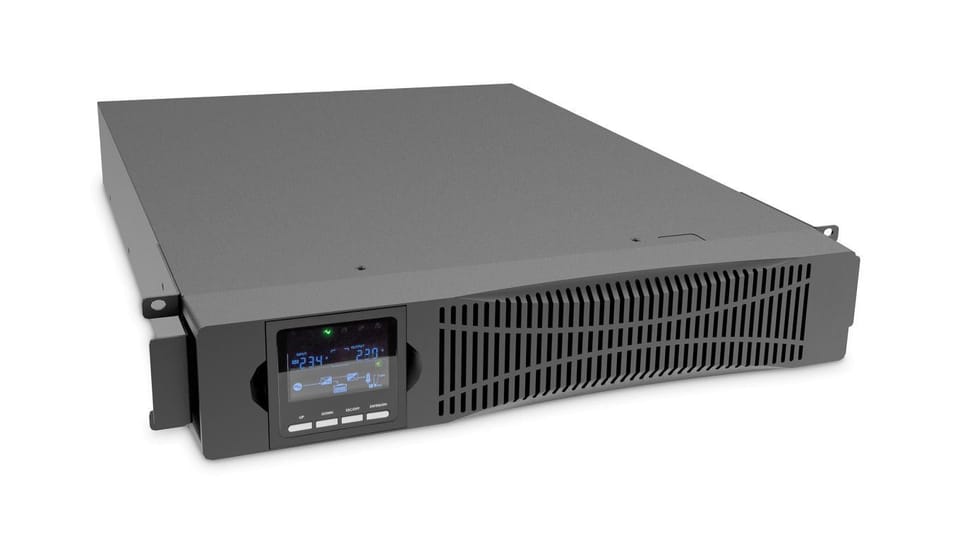

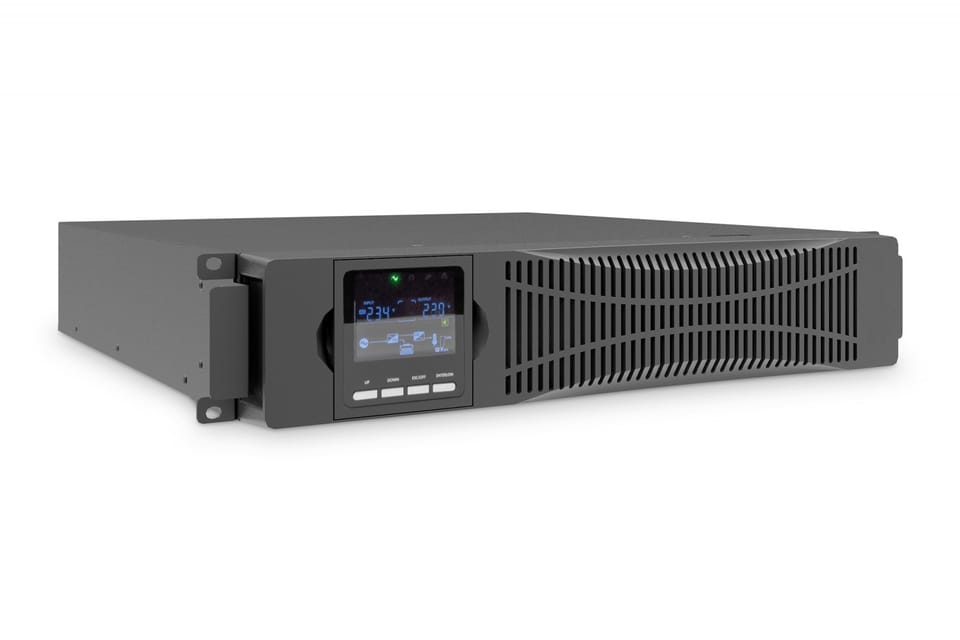

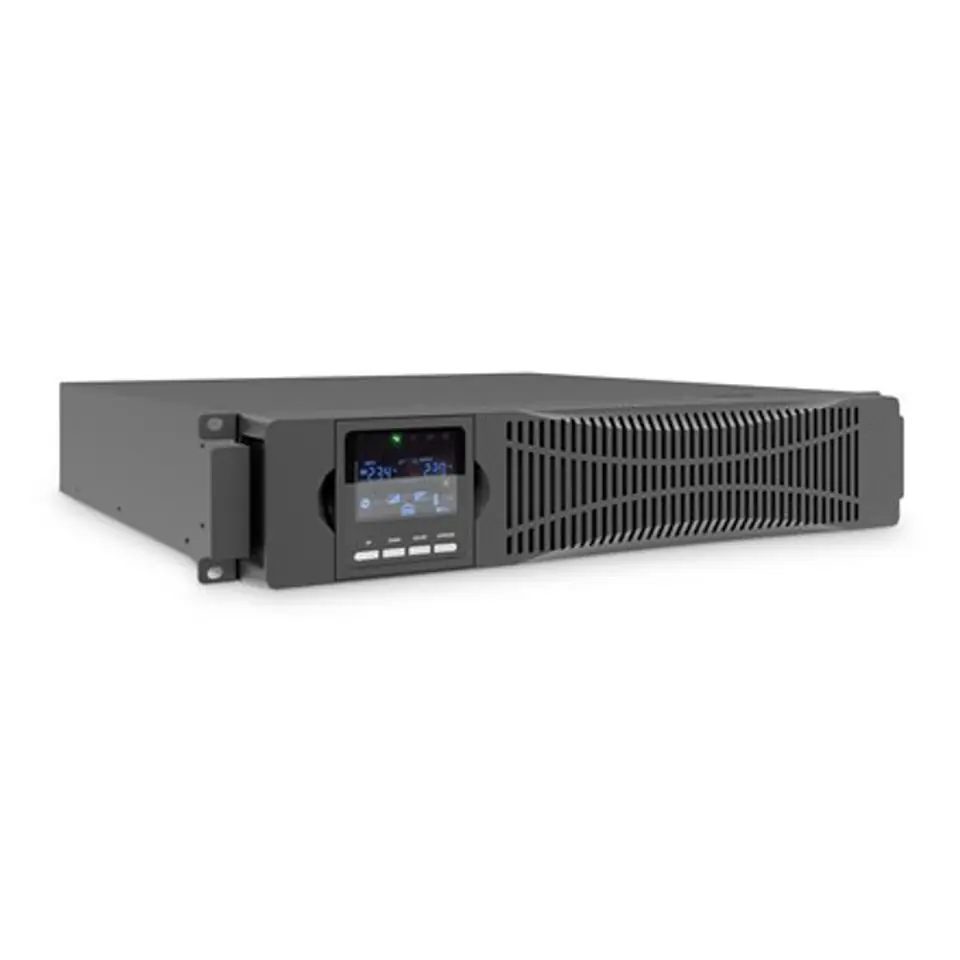

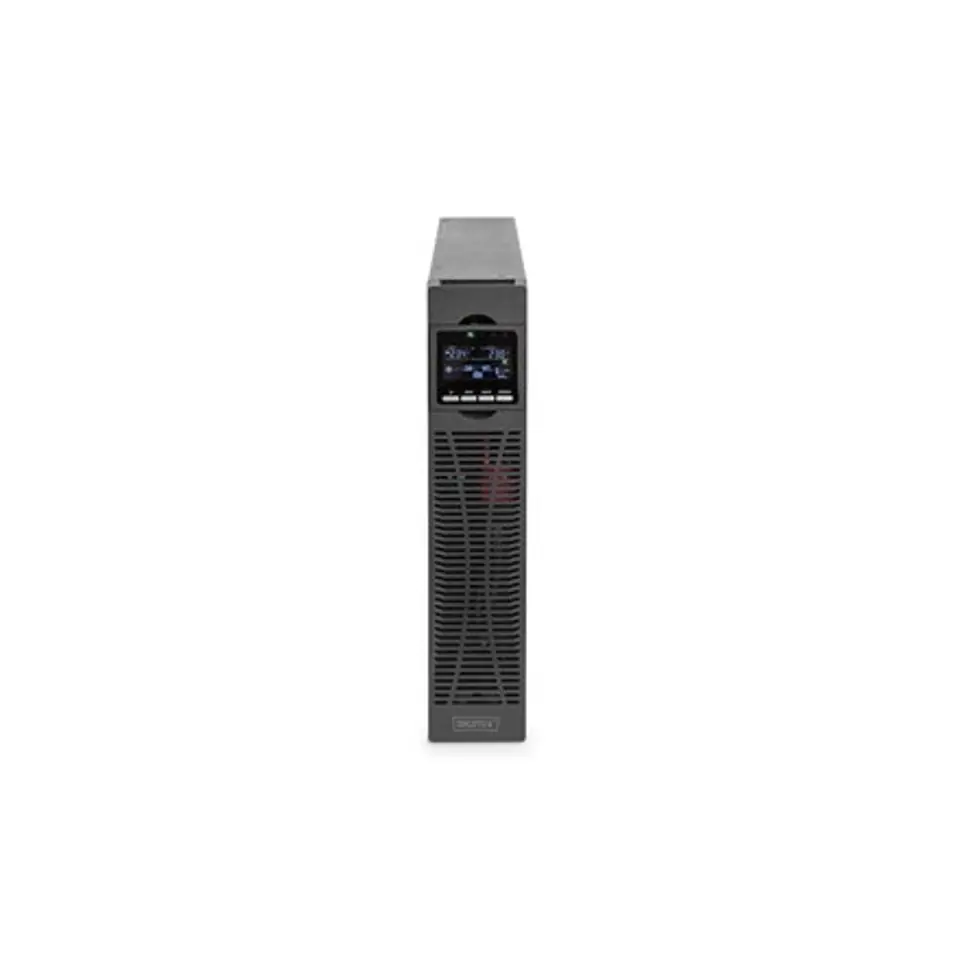

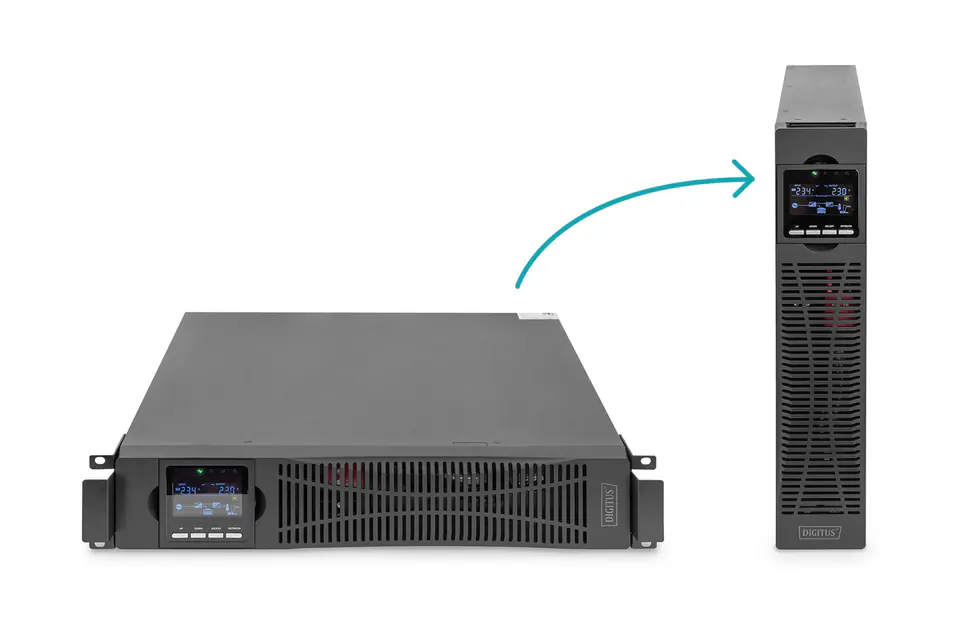

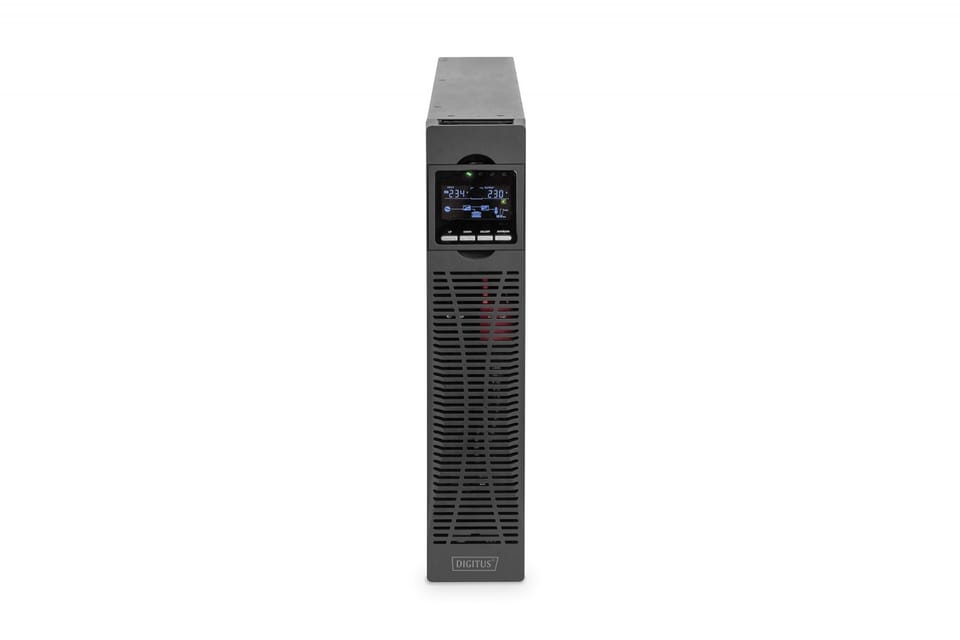

DIGITUS OnLine UPS, rack/tower, 3000VA, 3000W, LCD, 8 x C13, 1 x C19, RS-232, USB, SNMP card (optional), relay card optional) Digitus | OnLine UPS | DN-170096, 3000 VA / 3000 W | 3000 VA | 3000 W | V | C2
€780.00
Shipping from warehouse: M7
Estimated shipping: Mon, Sep 23 - Tue, Sep 24
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DN-170096 / 4016032474678
Share this product:
Specification

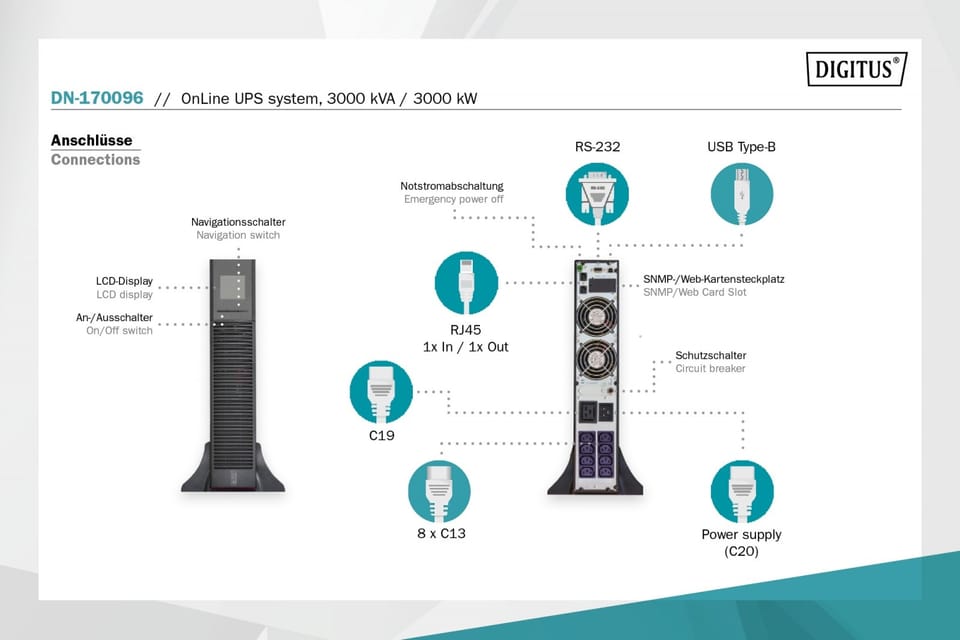

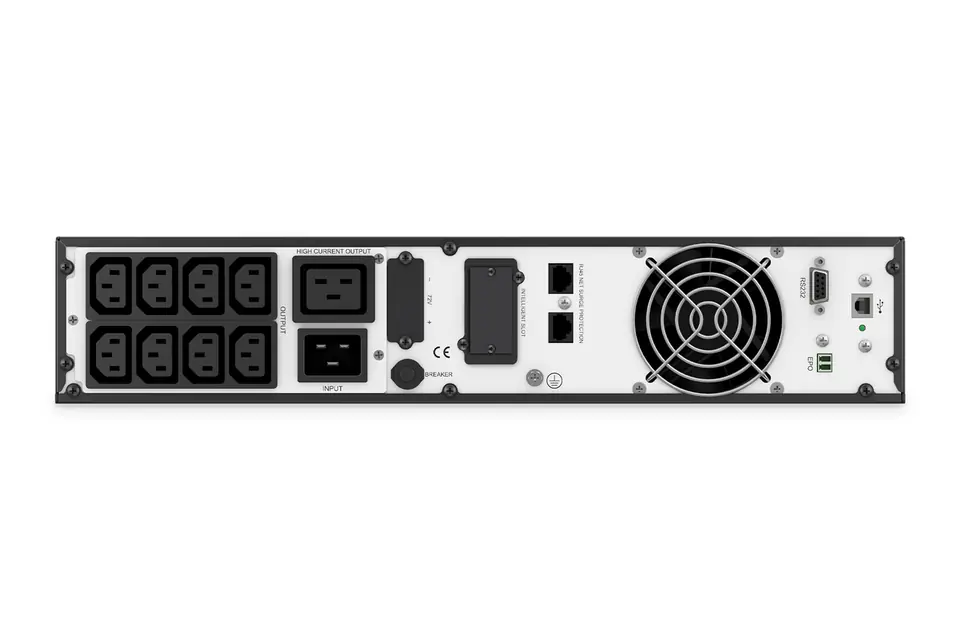

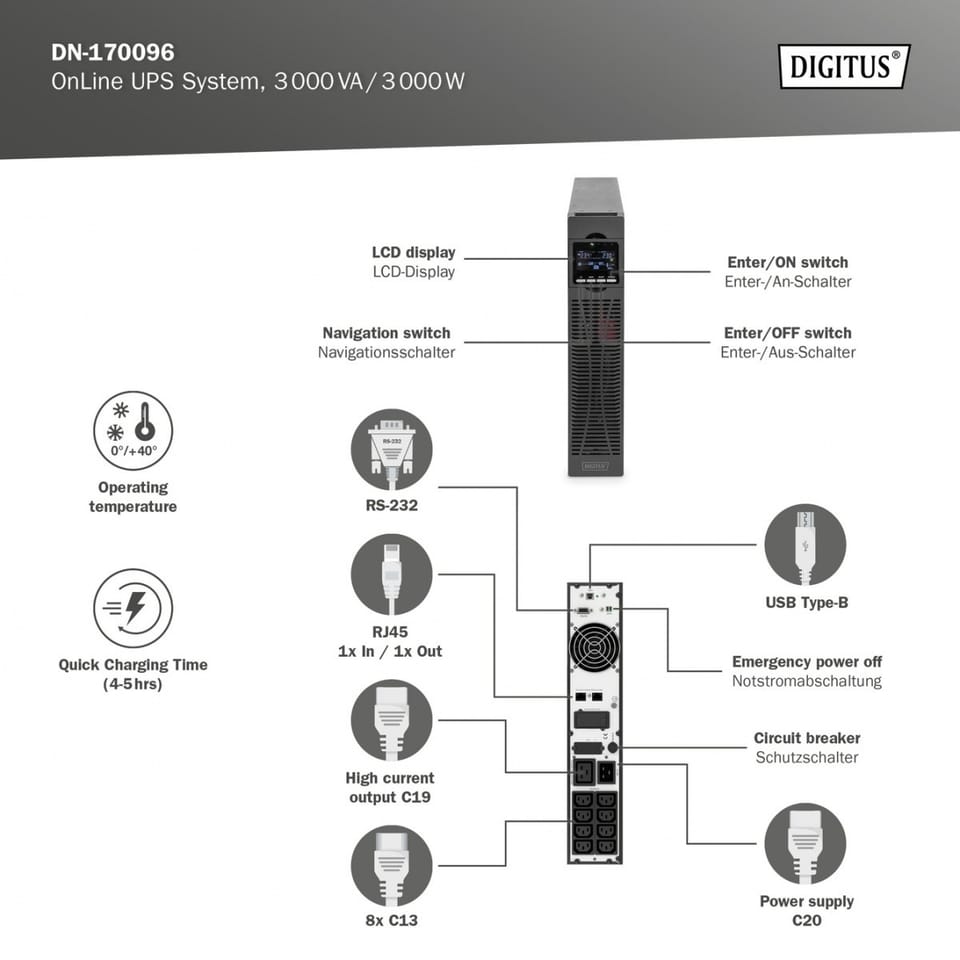

| Ac outlet types: | C13 coupler, C19 coupler |
|---|---|
| Ac outlets quantity: | 9 AC outlet(s) |
| Automatic voltage regulation (avr): | Yes |
| Battery capacity: | 9 Ah |
| Battery recharge time: | 4 h |
| Battery voltage: | 12 V |
| Depth: | 600 mm |
| Display type: | LCD |
| Efficiency (eco mode): | 98% |
| Efficiency (on-line mode): | 93% |
| Emergency power off (epo) connector: | Yes |

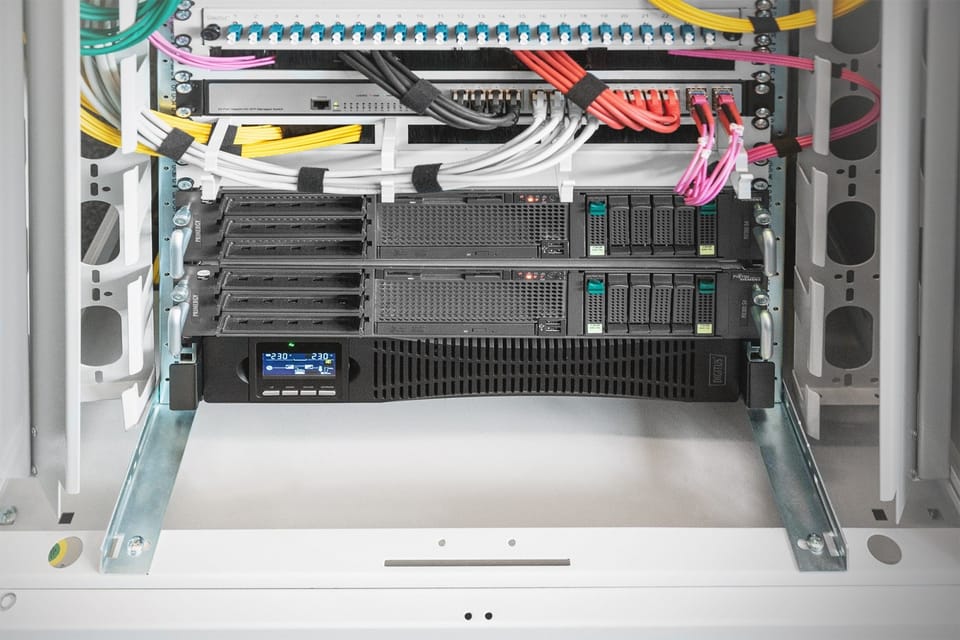

| Form factor: | Rackmount |
| Height: | 86.5 mm |
| Input operation voltage (max): | 240 V |
| Input operation voltage (min): | 208 V |
| Maximum current: | 16 A |
| Number of batteries supported: | 6 |
| Operating altitude: | 0 - 1500 m |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Output power: | 3000 W |
| Output power capacity: | 1.5 kVA |
| Package height: | 200 mm |
| Package volume: | 82064.5 cm³ |
| Package width: | 555 mm |
| Power factor: | 1 |
| Power plug: | C20 coupler |
| Product colour: | Black |
| Safety: | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Serial interface: | Yes |
| Serial interface type: | RS-232 |
| Size (imperial): | 48.3 cm (19") |
| Storage temperature (t-t): | -25 - 55 °C |
| Typical backup time at full load: | 3 min |
| Typical backup time at half load: | 9 min |
| Uk trade tariff code: | 85044085 |
| Ups topology: | Double-conversion (Online) |
| Usb port: | Yes |
| Weight: | 26 kg |
| Width: | 440 mm |
