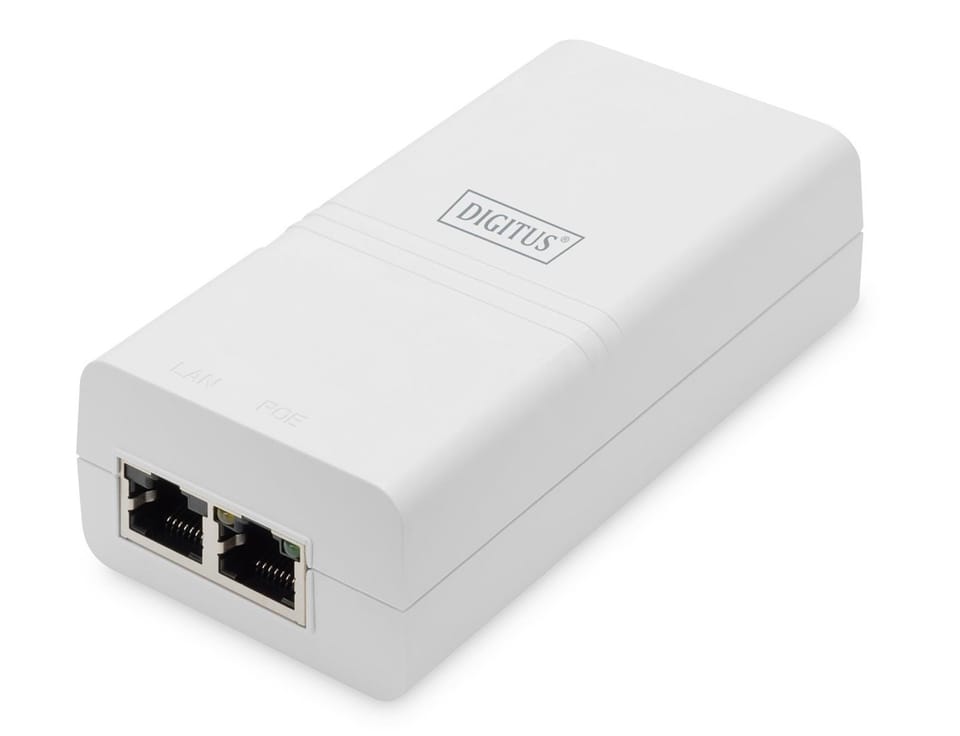

Digitus Gigabit Active 802.3af PoE Midspan

€23.90
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Digitus
Product code:
DN-95131 / 4016032486107

Specification

Ac adapter frequency:50/60 Hz
Ac adapter input voltage:100 - 240 V
Compliance certificates:RoHS, WEEE
Country of origin:China
Depth:46 mm
Ethernet interface type:Fast Ethernet, Gigabit Ethernet
Ethernet lan data rates:1000 Mbit/s, 100, 10
Height:30 mm
Housing material:Plastic
Input current:0.5 A
International protection (ip) code:IP40
Led indicators:PoE, Power
Manual:Yes
Networking standards:IEEE 802.3af
Number of products included:1 pc(s)
Operating altitude:0 - 2000 m
Operating relative humidity (h-h):20 - 80%
Operating temperature (t-t):0 - 40 °C
Package depth:100 mm
Package height:43 mm
Package volume:722.4 cm³
Package weight:32.25 g
Package width:168 mm
Power over ethernet (poe):Yes
Power over ethernet (poe) voltage:48 V
Product colour:White
Quick installation guide:Yes
Storage relative humidity (h-h):10 - 90%
Storage temperature (t-t):-20 - 70 °C
Uk trade tariff code:85176200
Weight:100 g
Width:85 mm

The effective connection distance is 100 meters on Cat5e/Cat6 cable. The solution is small in size and offers high efficiency.

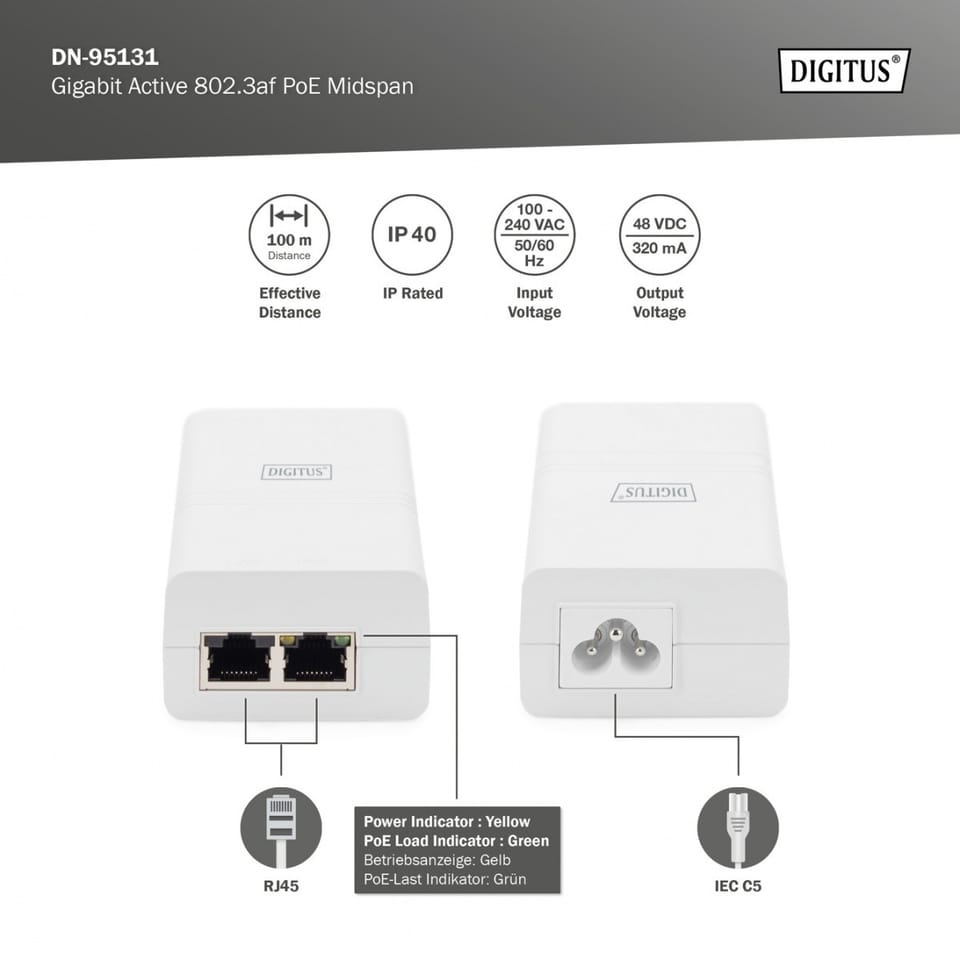

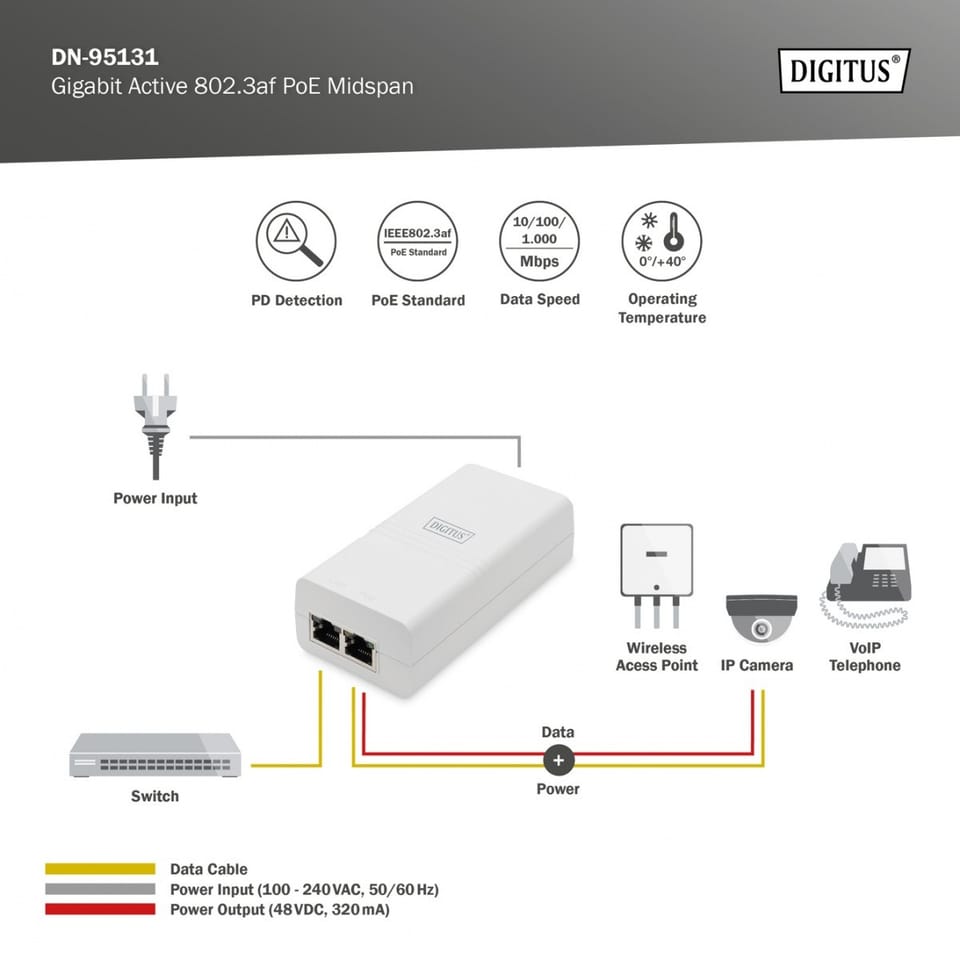

The DN-95131 is an active indoor PoE midspan injector power supply designed specifically for complex backhaul and networking applications. Provides 48V DC, 0.32A power for external devices requiring PD power through 2 pairs of output sockets. The solution supports both 10/100 Base-T and Gigabit compatible devices. Suitable for devices that support 15.4W Power over Ethernet PD, such as wireless access points, WLAN routers, network cameras, IP phones, radios and other end devices compatible with Power over Ethernet. The solution is fully compliant with the IEEE802.3af PoE standard. The device has a fireproof plastic housing with protection class IP40. Supports a wide input voltage range of 100-240 VAC, 50 or 60 Hz. Inside there is a chip with a detection function that recognizes and classifies the device requiring power (PD) before power is supplied to the device. Provides power only when a device supporting the PD (Power Delivery) standard is detected.

  • Provides 48V DC, 0.32A power to external PD-compatible devices via 2 pairs of outputs
  • Support for both 10/100 Base-T and Gigabit compatible devices
  • The solution supports a wide input voltage range of 100-240 V AC, 50 or 60 Hz
  • Conveniently combine power and data cables in one cable
  • Each output port offers output current limiting, short circuit protection, full power-demanding device (PD) detection and classification.
  • Injector can be used regardless of the operating system
